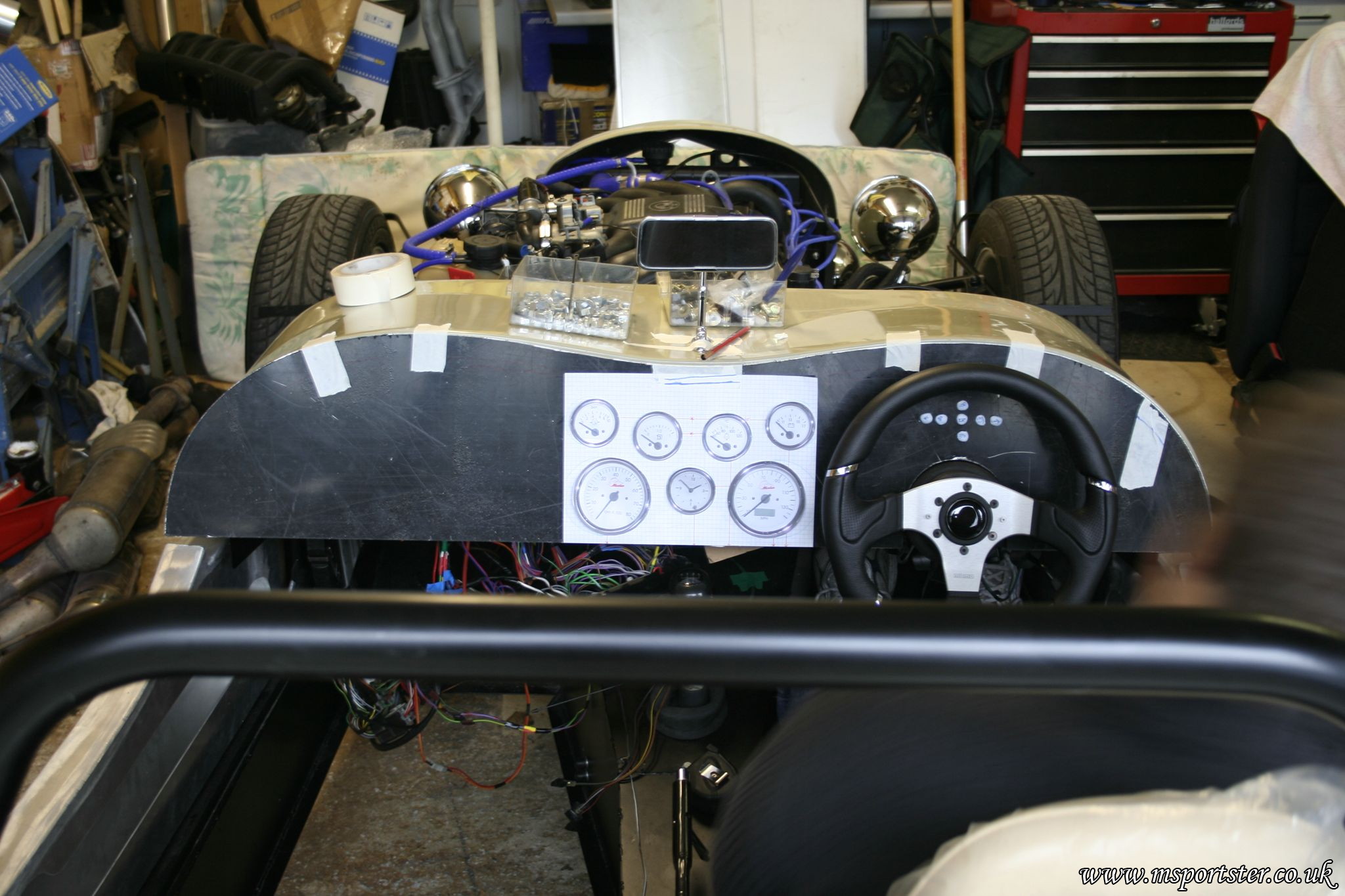

Time has come to spend hours and hours debating where to put the gauges! After many, many permutations using prints outs and bluetak here’s the results:

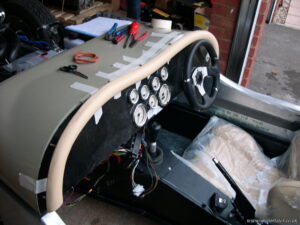

Dash masked and all the hole centre marked from the graph paper used to precisely layout the dials
The next question, how to cut the holes in the ali without needing to spend a good £50-£60 on the correct hole punching tools for the job!
