SVA Day

SVA Day

View on screen
High Res Download

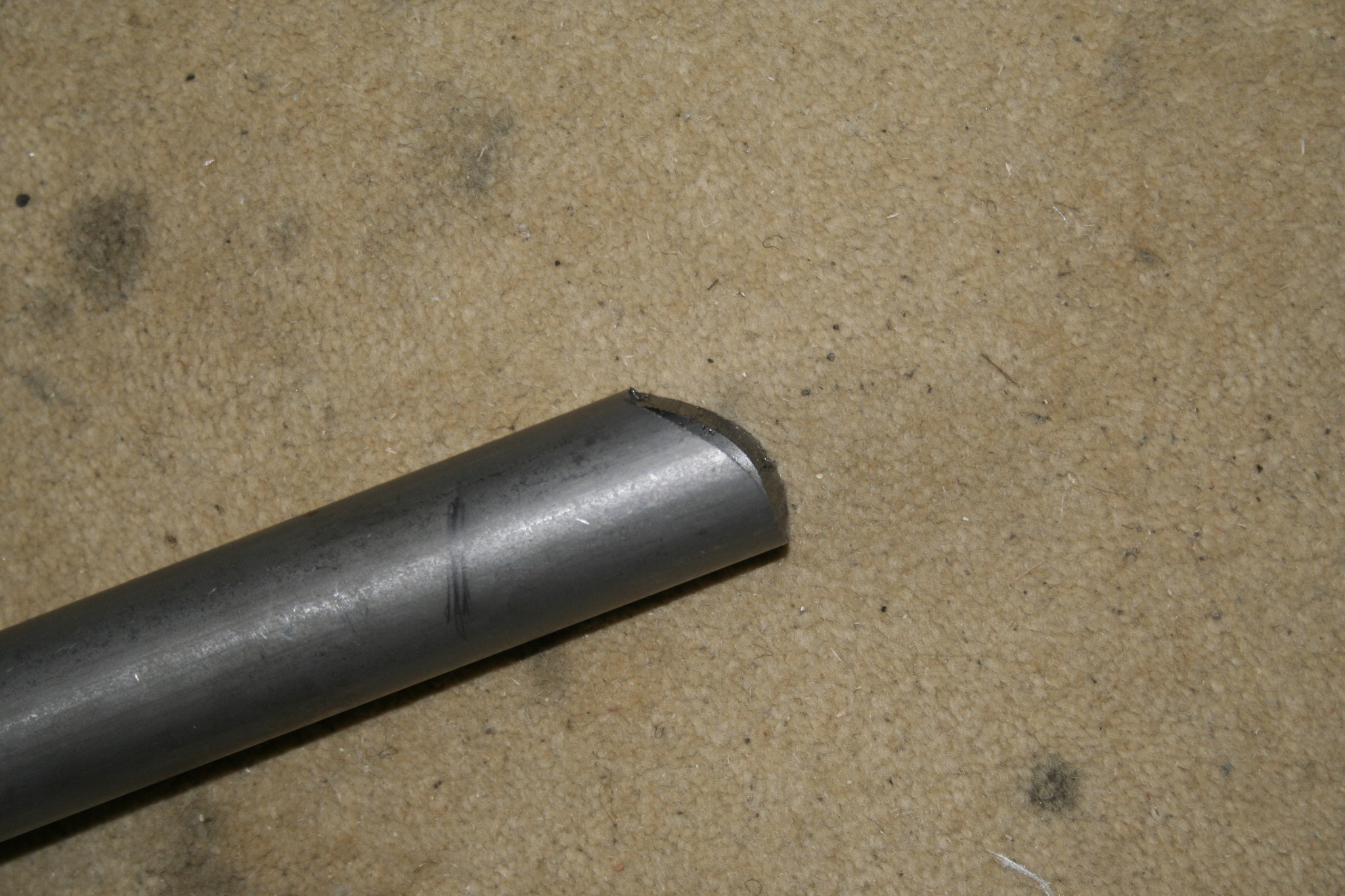

The resulting cut in the metal tube

View on screen
High Res Download

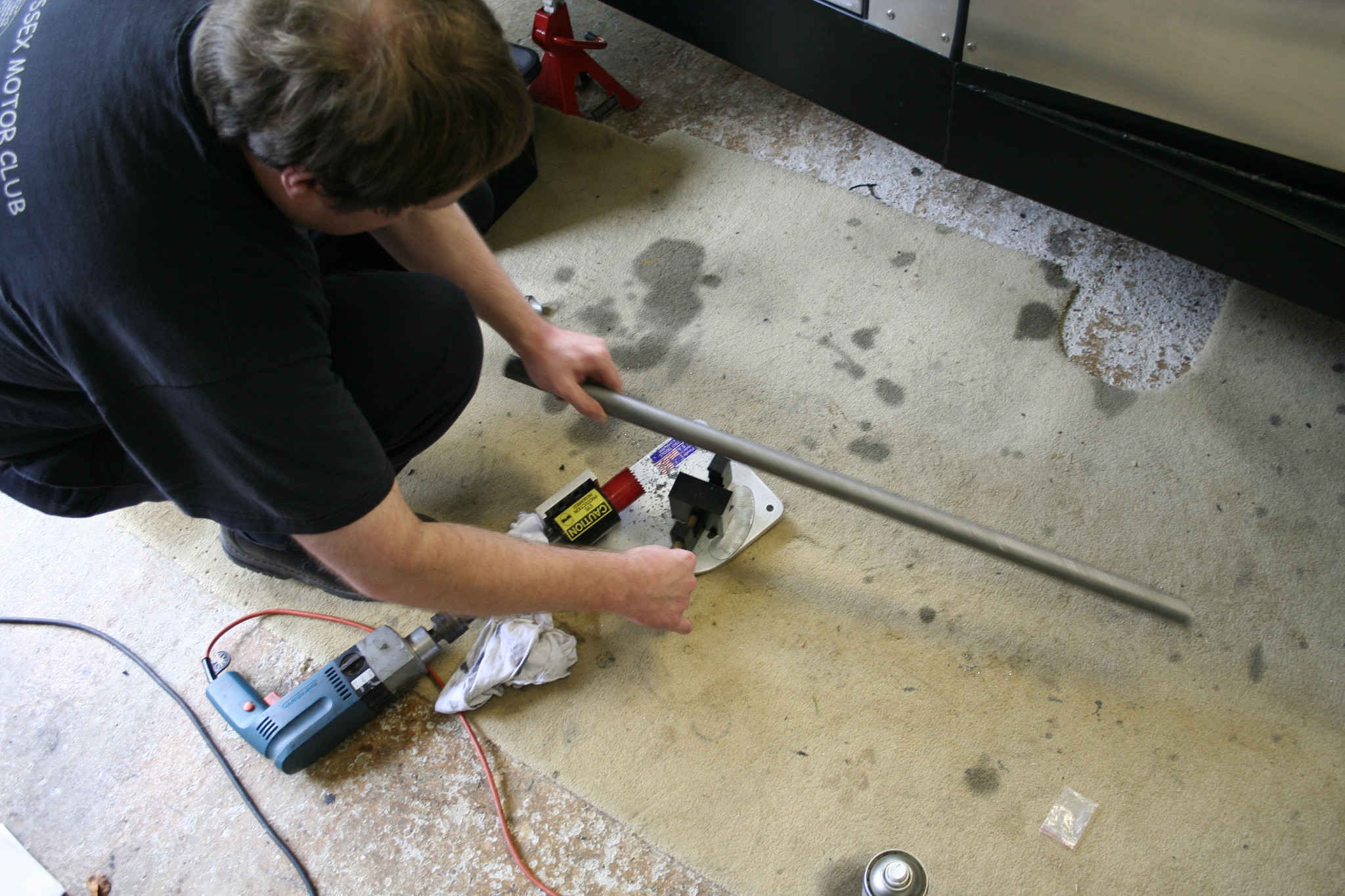

Seat belt ancourage point failed, no documentation to say the seat would withstand an impact. So HUGE! thank to Black-Cat (Tom) for poping round with his TIG and welding this bar in for us. Here he is using a tube notcher to but a perfect edge in.

View on screen
High Res Download

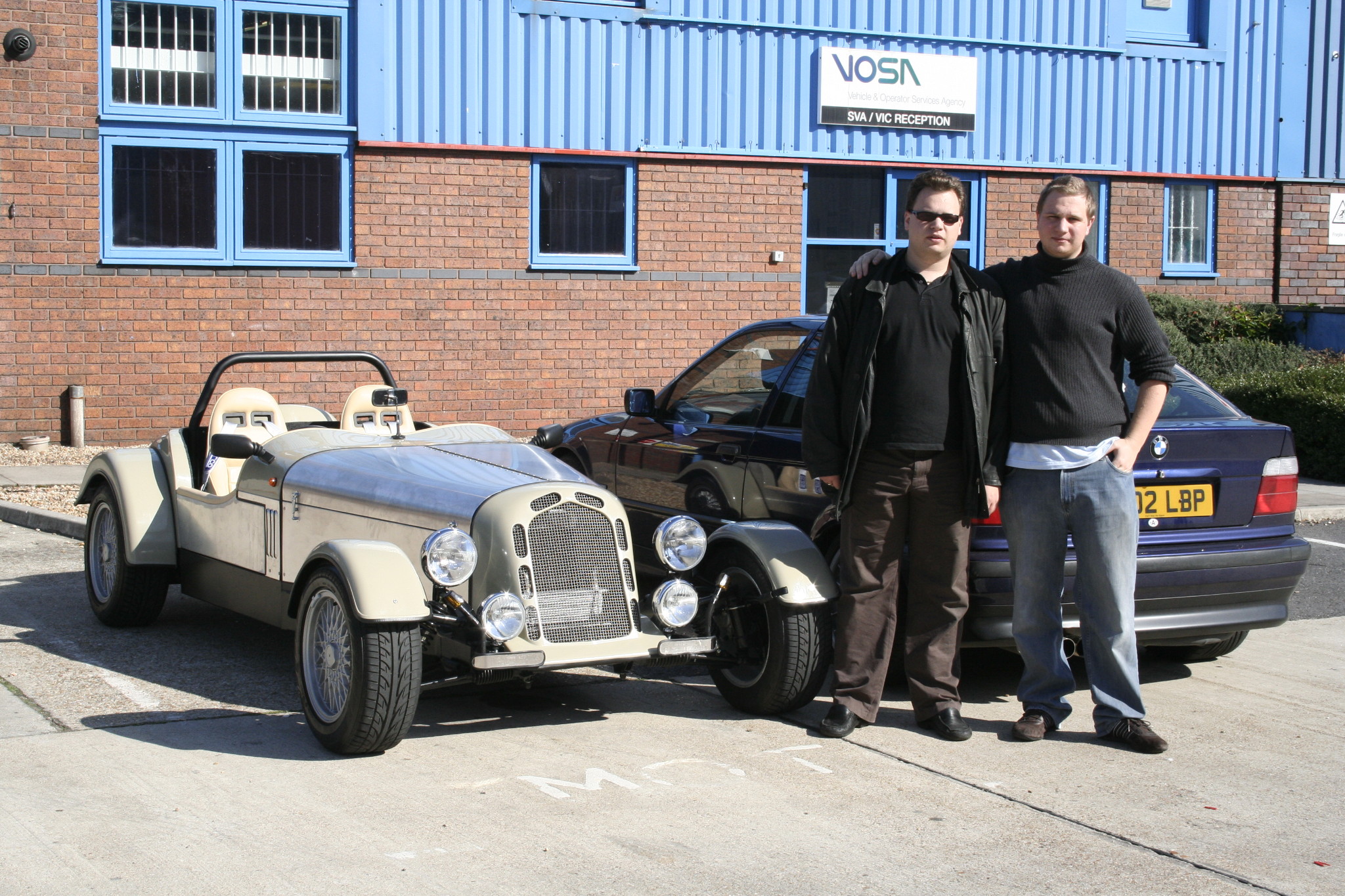

Here are after our SVA test. A number of fail points but a good day anyway sun and no windscreen! (only nearly swollowed one fly)

View on screen
High Res Download

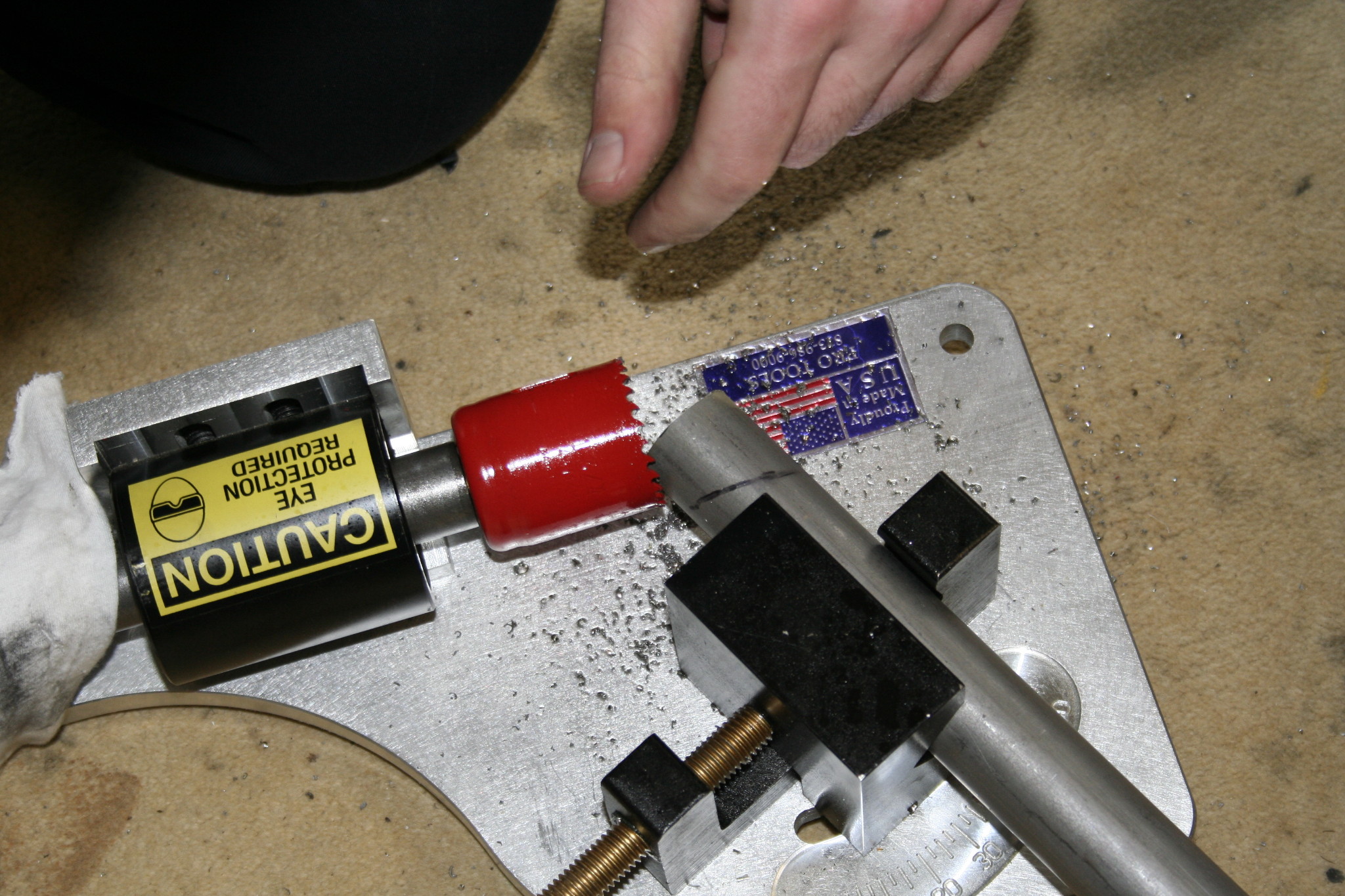

This is one hell of a piece of kit! Setup your angle and off you go. No need to mess about with an angle grinder bit by bit getting your pipes to line up.

View on screen
High Res Download
TIG welders are great, unlike MIG there's no splatter of bits going all over the place!

View on screen
High Res Download

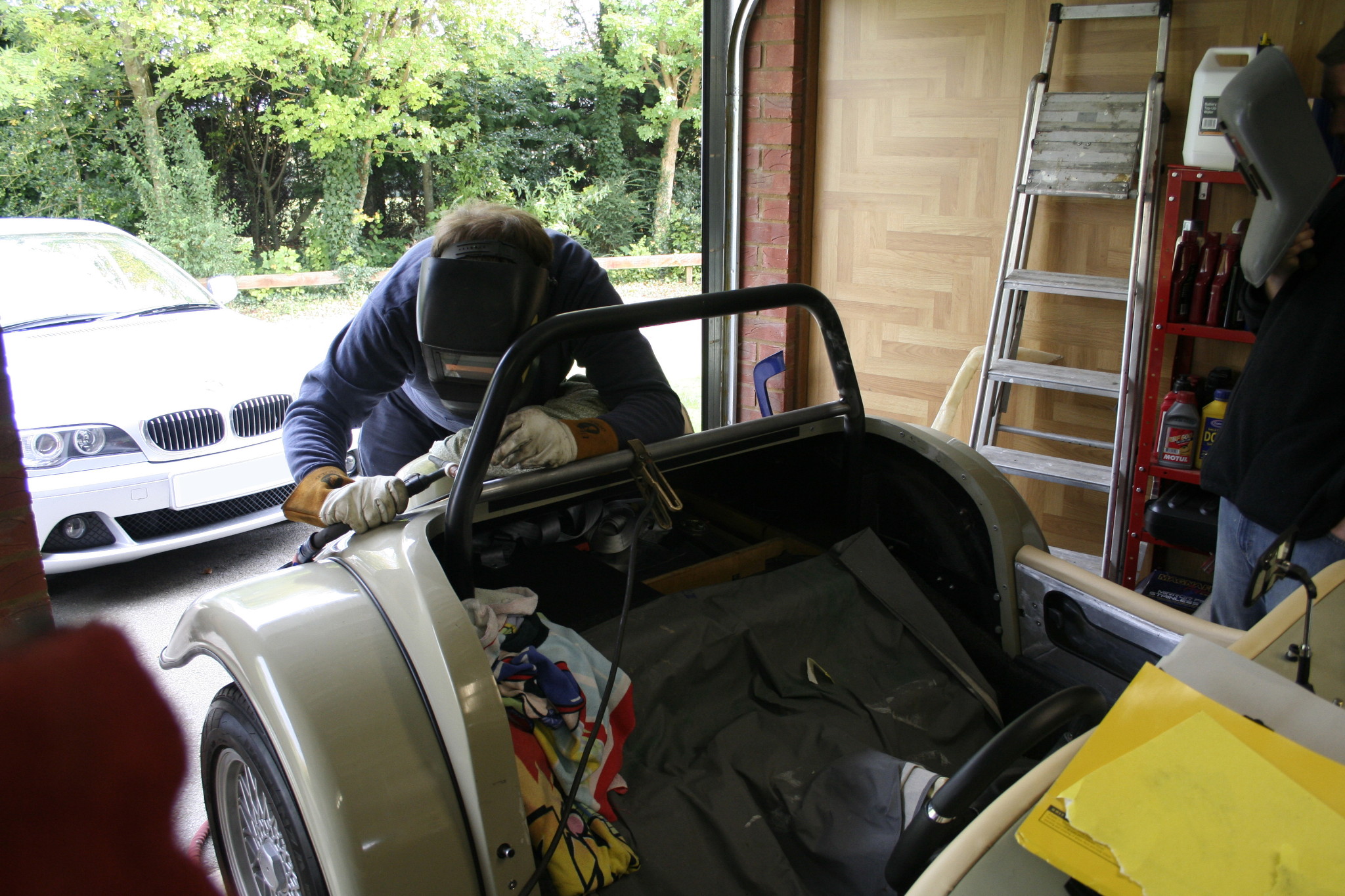

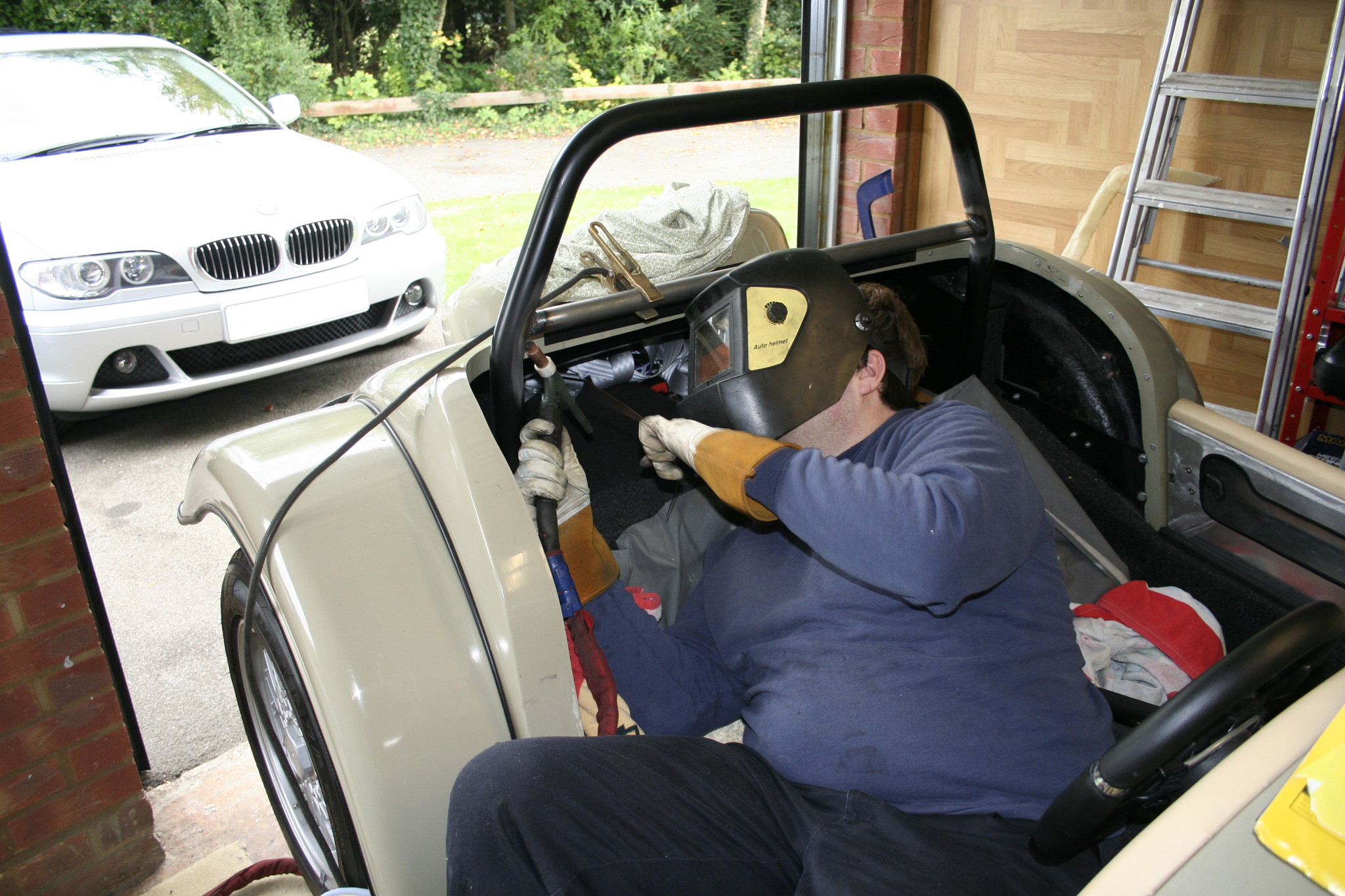

Tom squeezed into a compromising position trying to weld under the bar!

View on screen
High Res Download

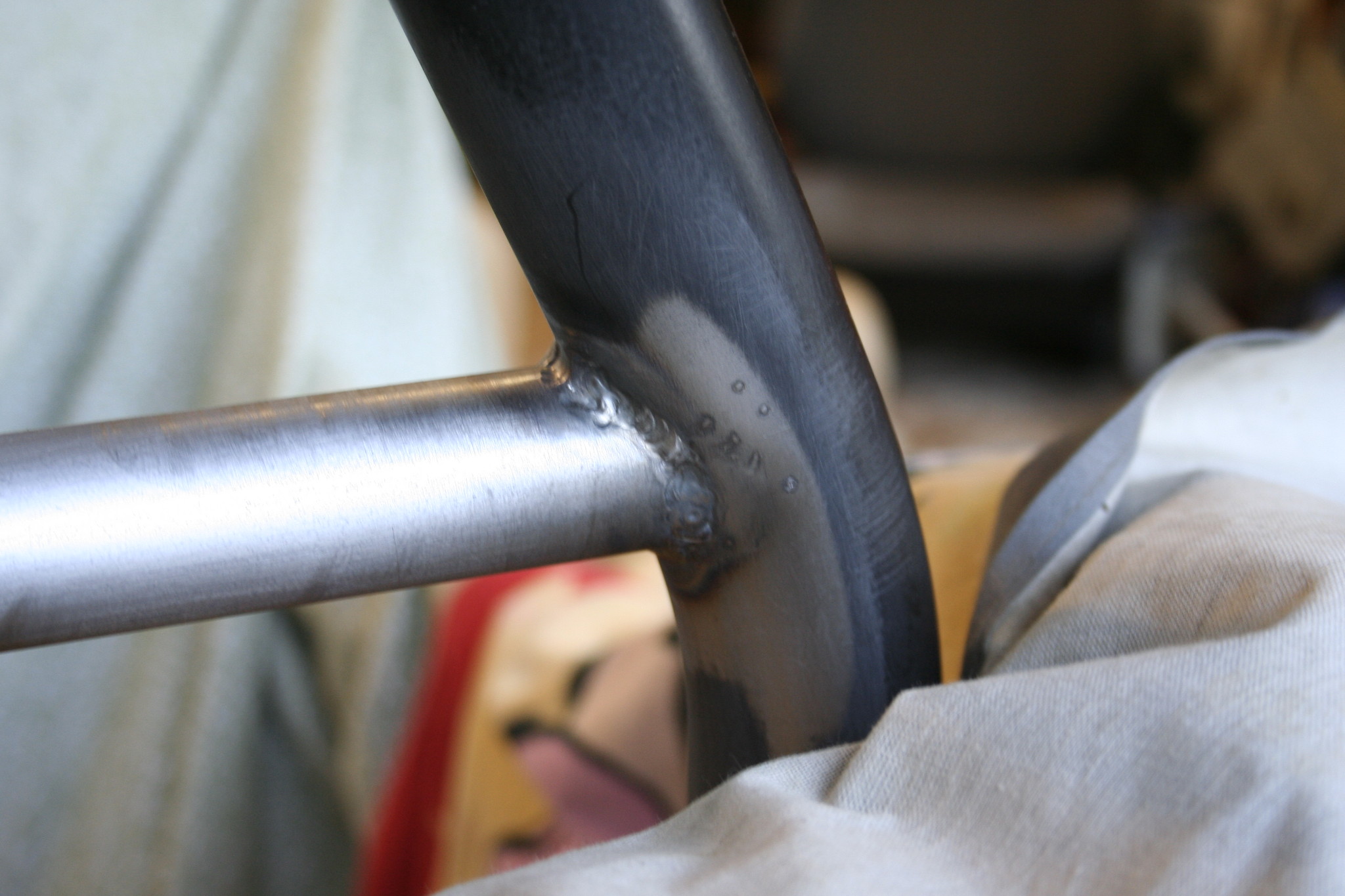

Welded  very nicely! This stuff is CDS - cold draw steel (as Tom tells me! I went into metal supermarket in Southampton and asked for steel tube)

View on screen
High Res Download

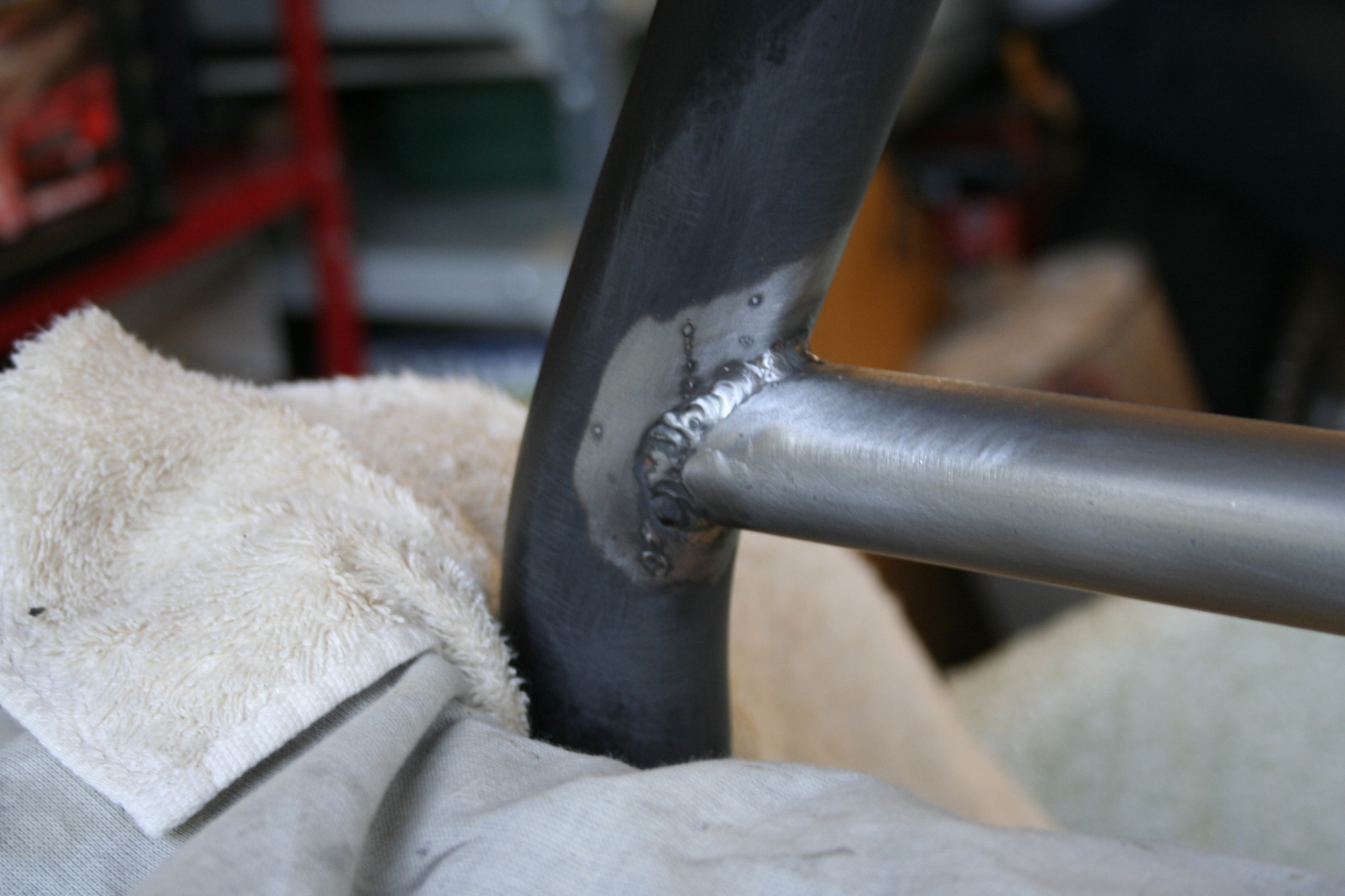

Here's the other side. Lots of sanding was required to clean off the powder coat from the weld area.

View on screen
High Res Download

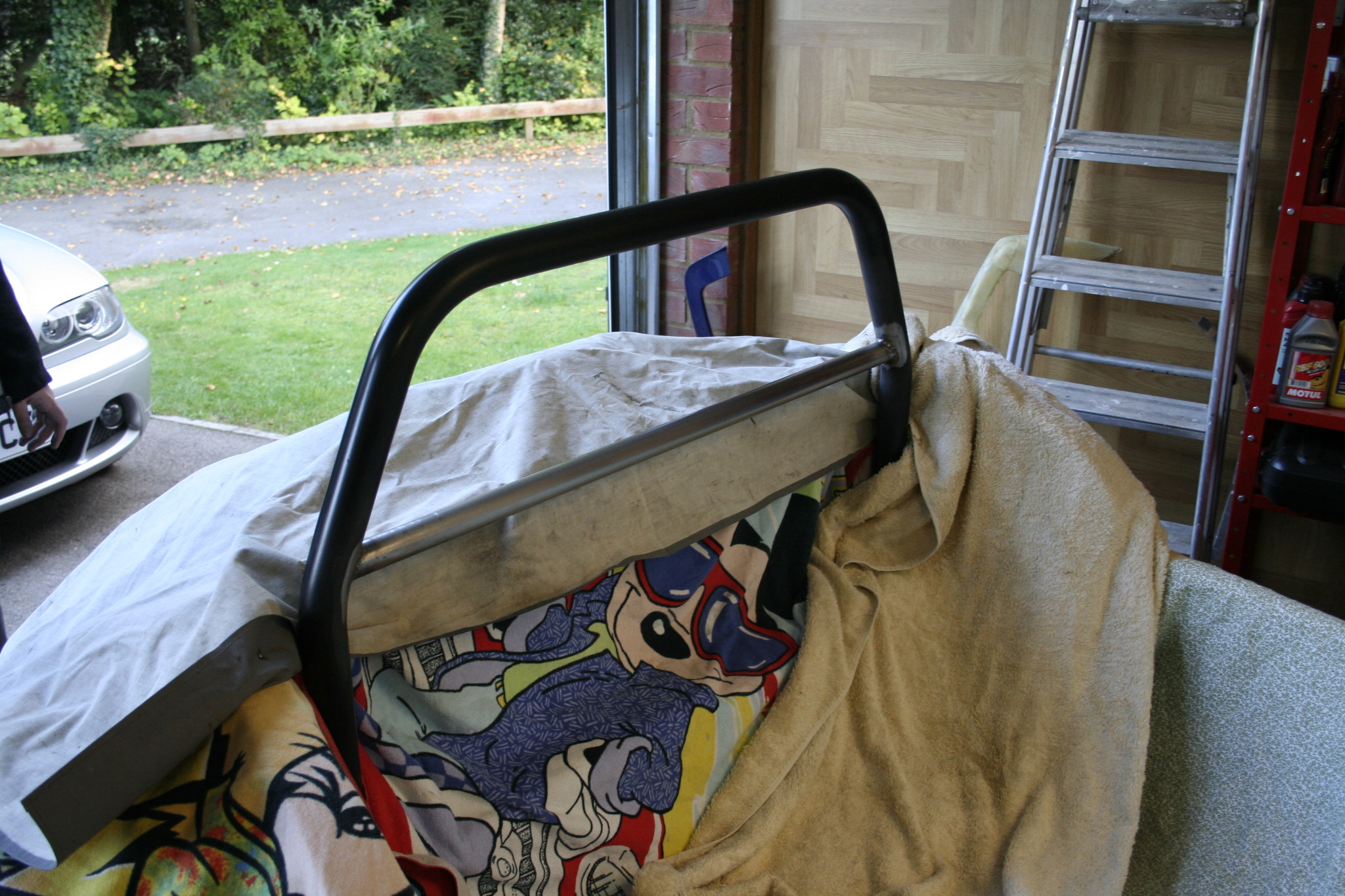

Area covered over cleaned and sanded ready for epoxy roll bar paint.

View on screen
High Res Download

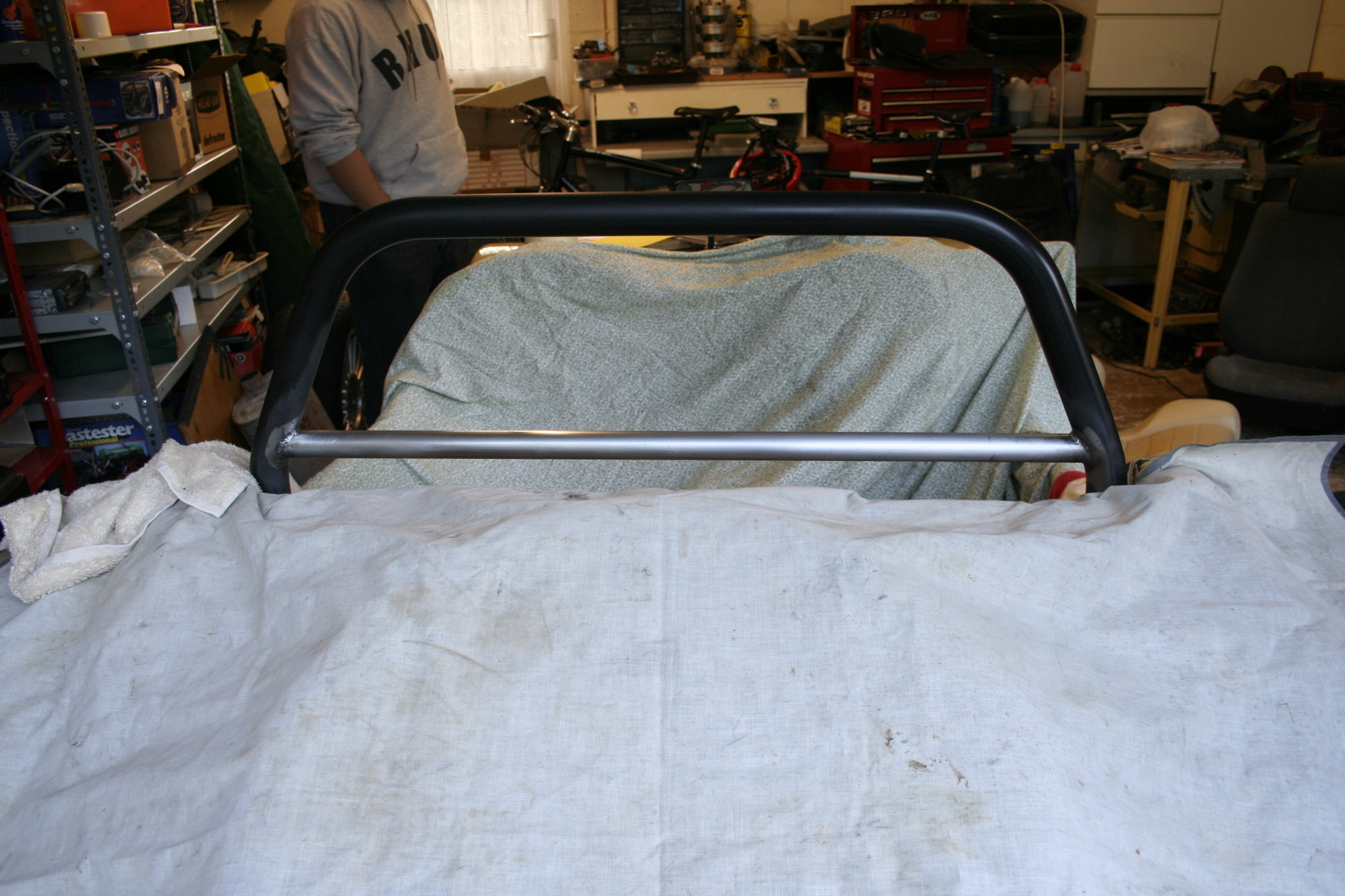

Front ready for paint

View on screen
High Res Download

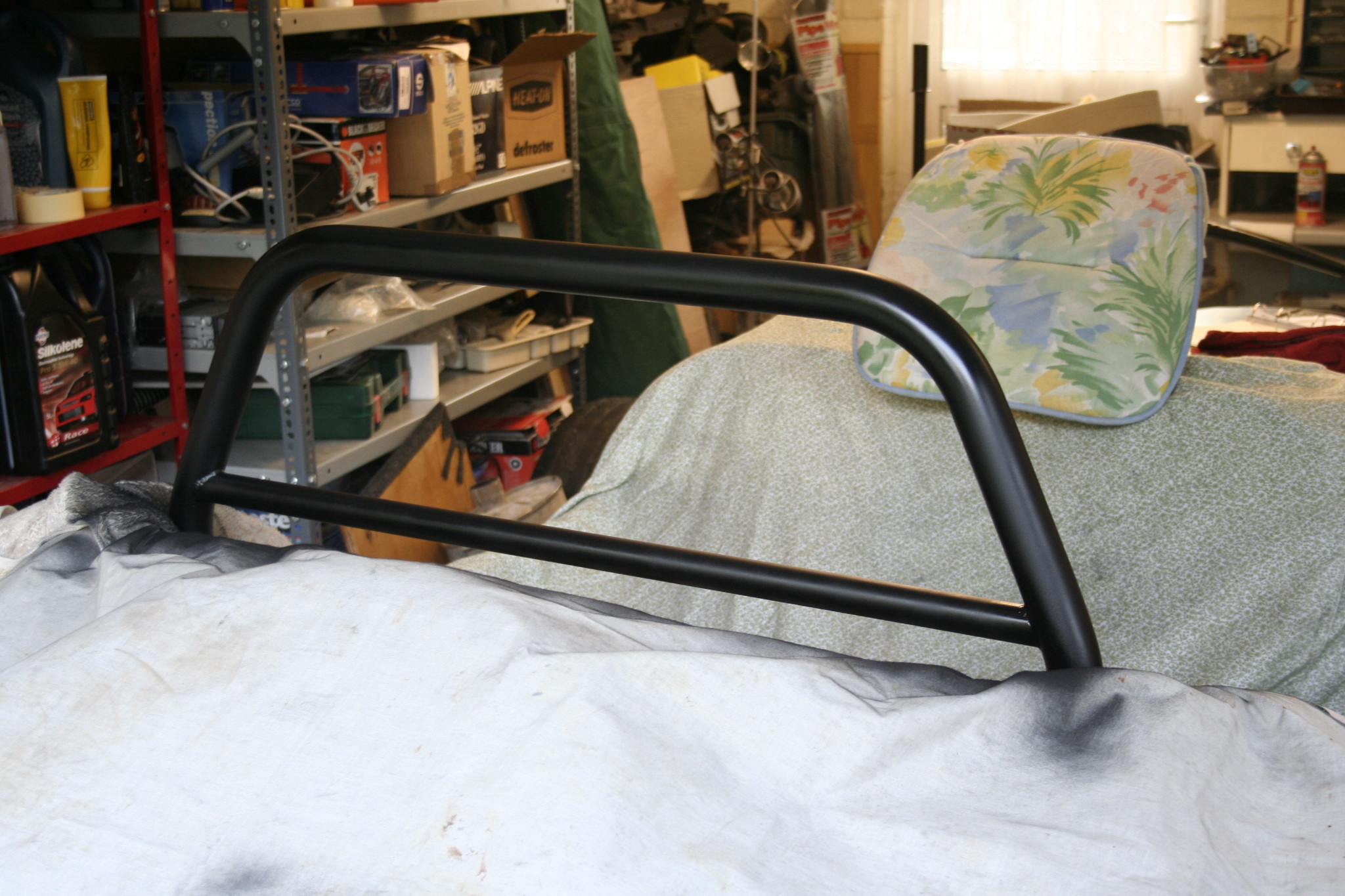

Painted from the front.

View on screen
High Res Download

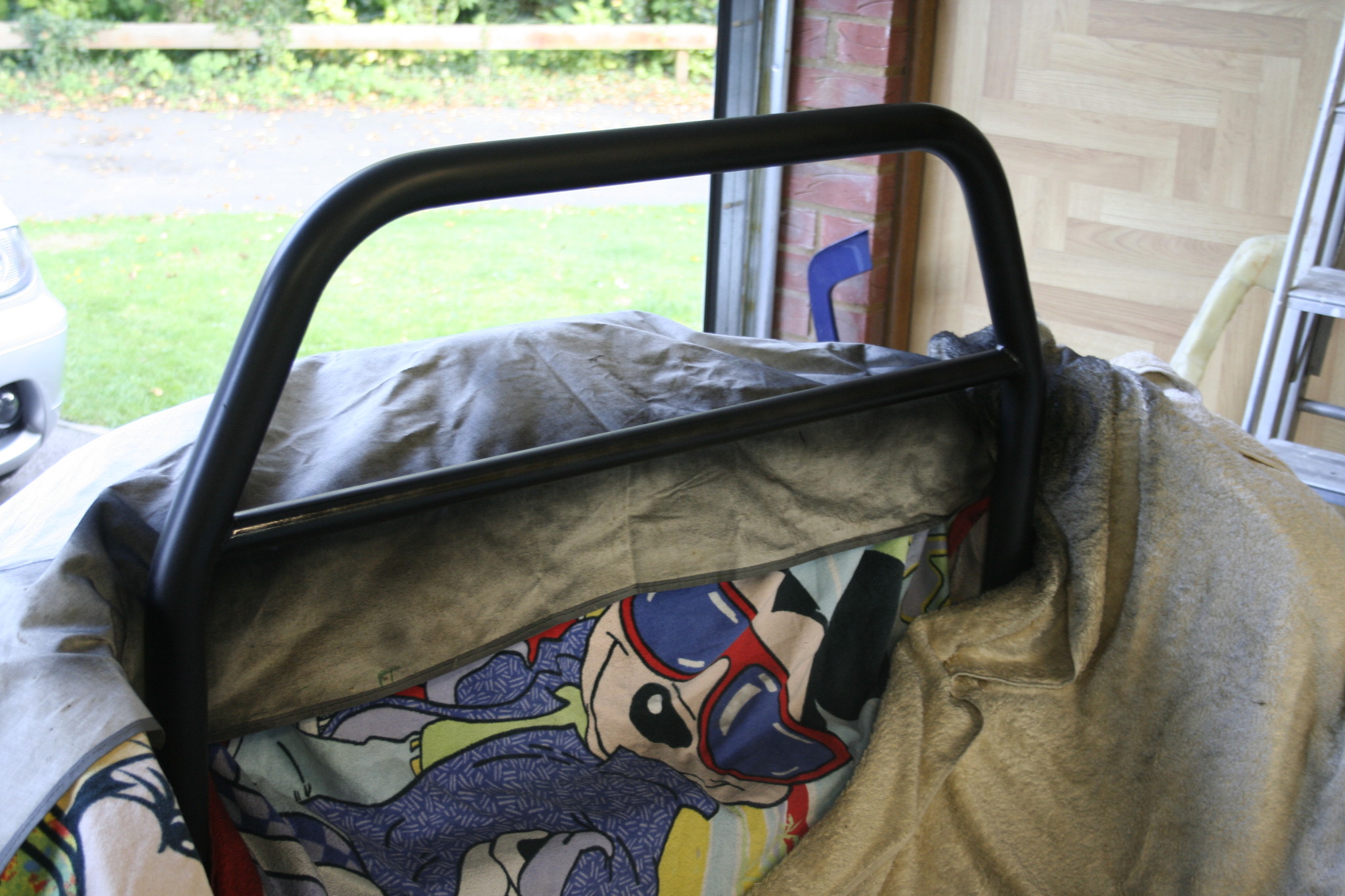

Finally several coats of expoy roll bar and chassis paint drying.
