Rolling Chassis Build
View on screen
High Res Download
New brake lines, also shows the SVA proof covers on the wish bone nuts.
View on screen
High Res Download
They didn’t quite fit but after a bit of help from the mallet I got them in.
View on screen
High Res Download
The diff had a tab on the front that needed grinding off to fit
View on screen
High Res Download
The standard dampers are shot, but I am using those until I get replacements
View on screen
High Res Download
One spring was broken, the other the wrong size so I am going to get new ones. I am not comfortable collapsing or cutting springs so I will get ones the correct size.
View on screen
High Res Download

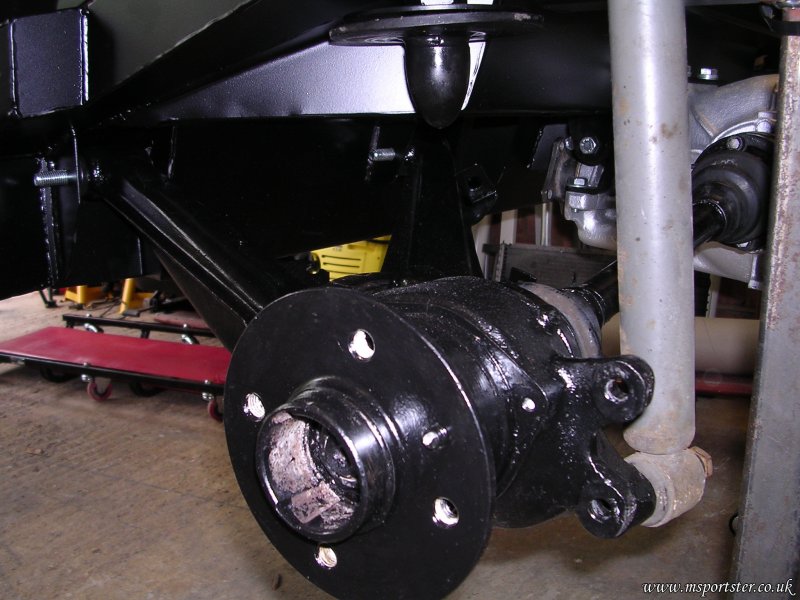

Close but not quite in the right place. Need to talk to Marlin about this
View on screen
High Res Download

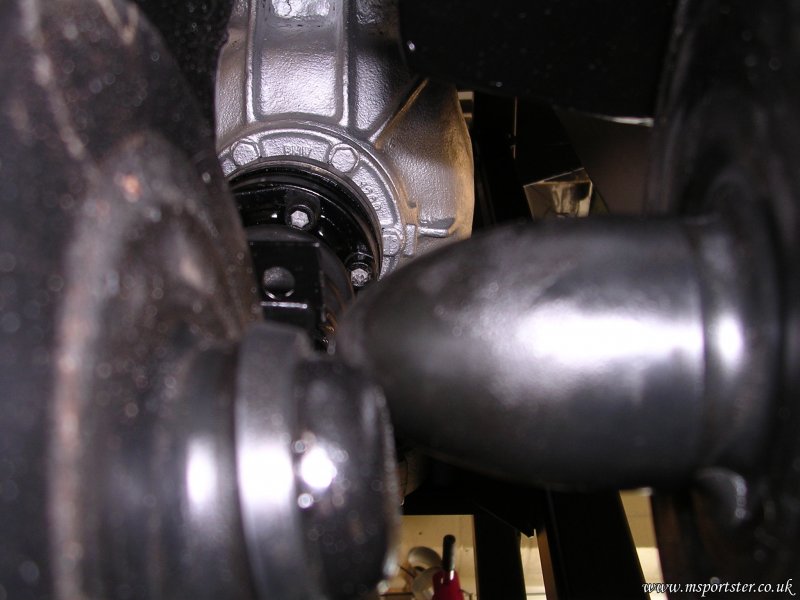

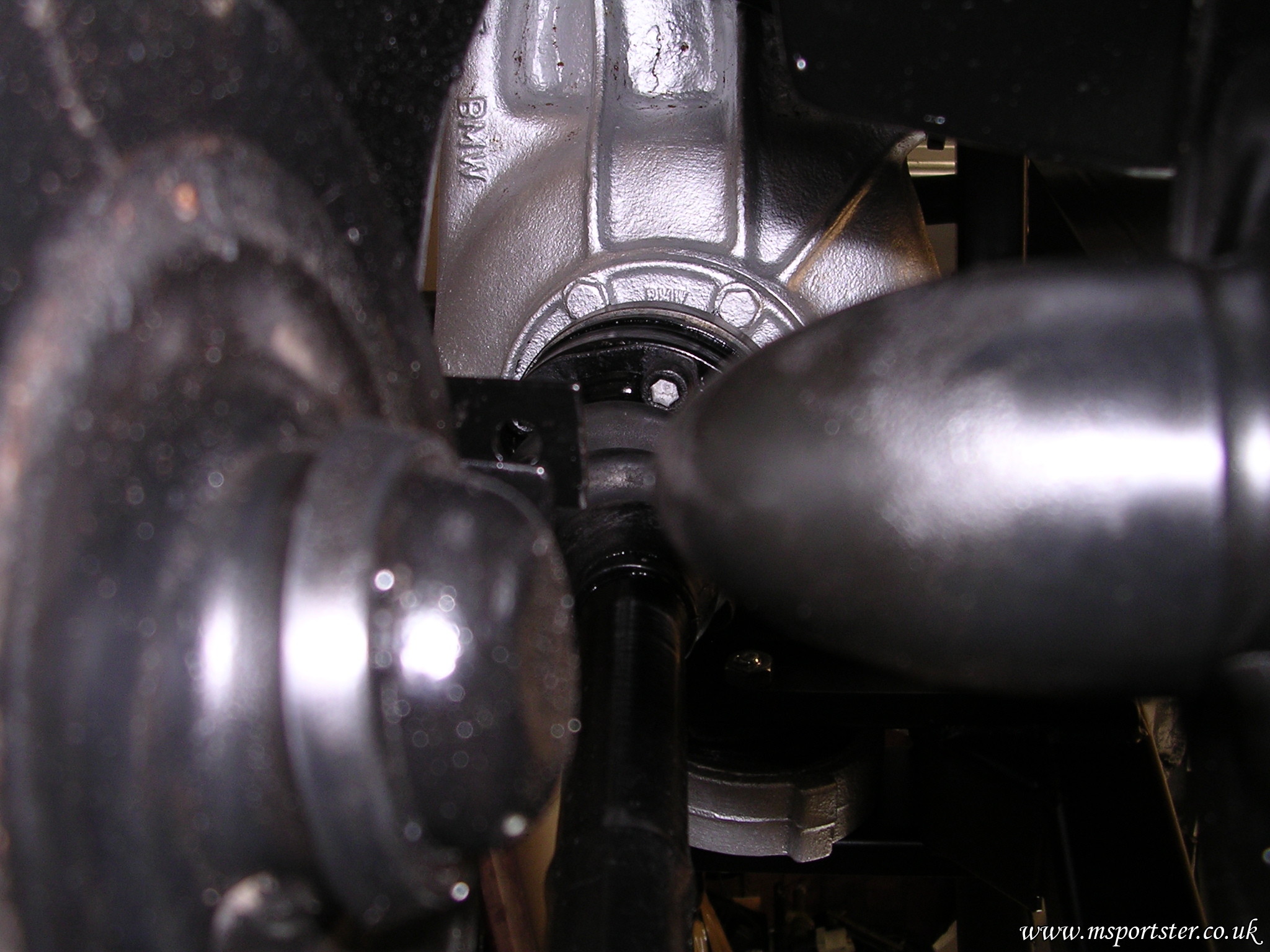

Hmm having some issues with the spring seats not lining up, this sites worse than the other
View on screen
High Res Download

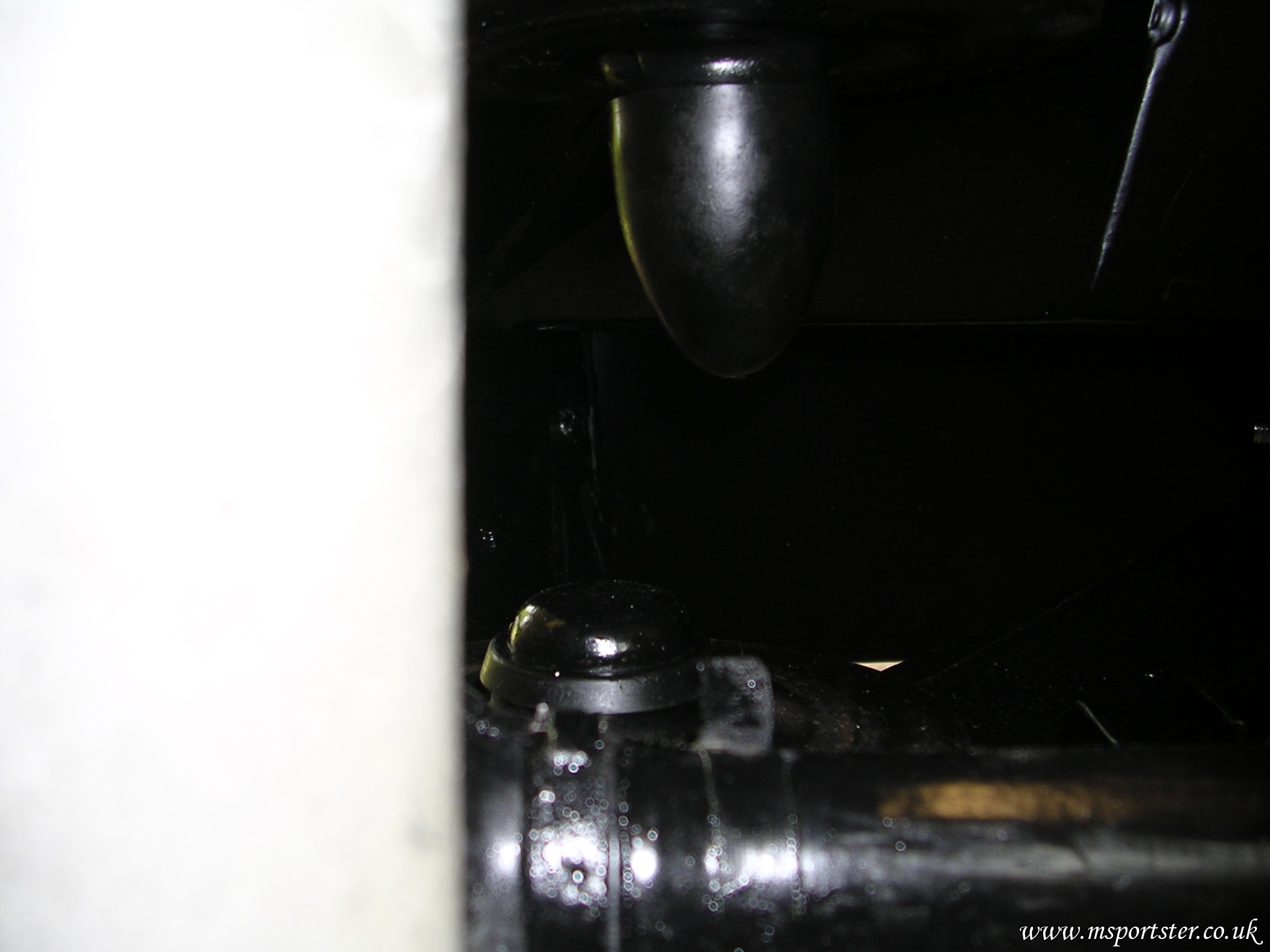

They are quite far off, the bump stop misses completely
View on screen
High Res Download

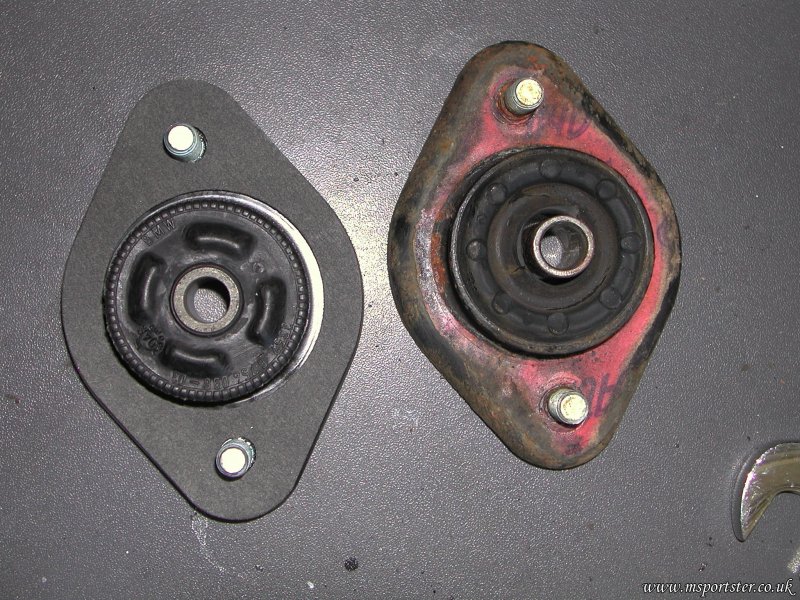

Rear top mounts. Bottom new E46 Cab part on the left, old worn out part on the right
View on screen
High Res Download
Again new part with gasket on left, old on right. E30zone recommendation to get the E46 cabrio part over the standard E30
View on screen
High Res Download

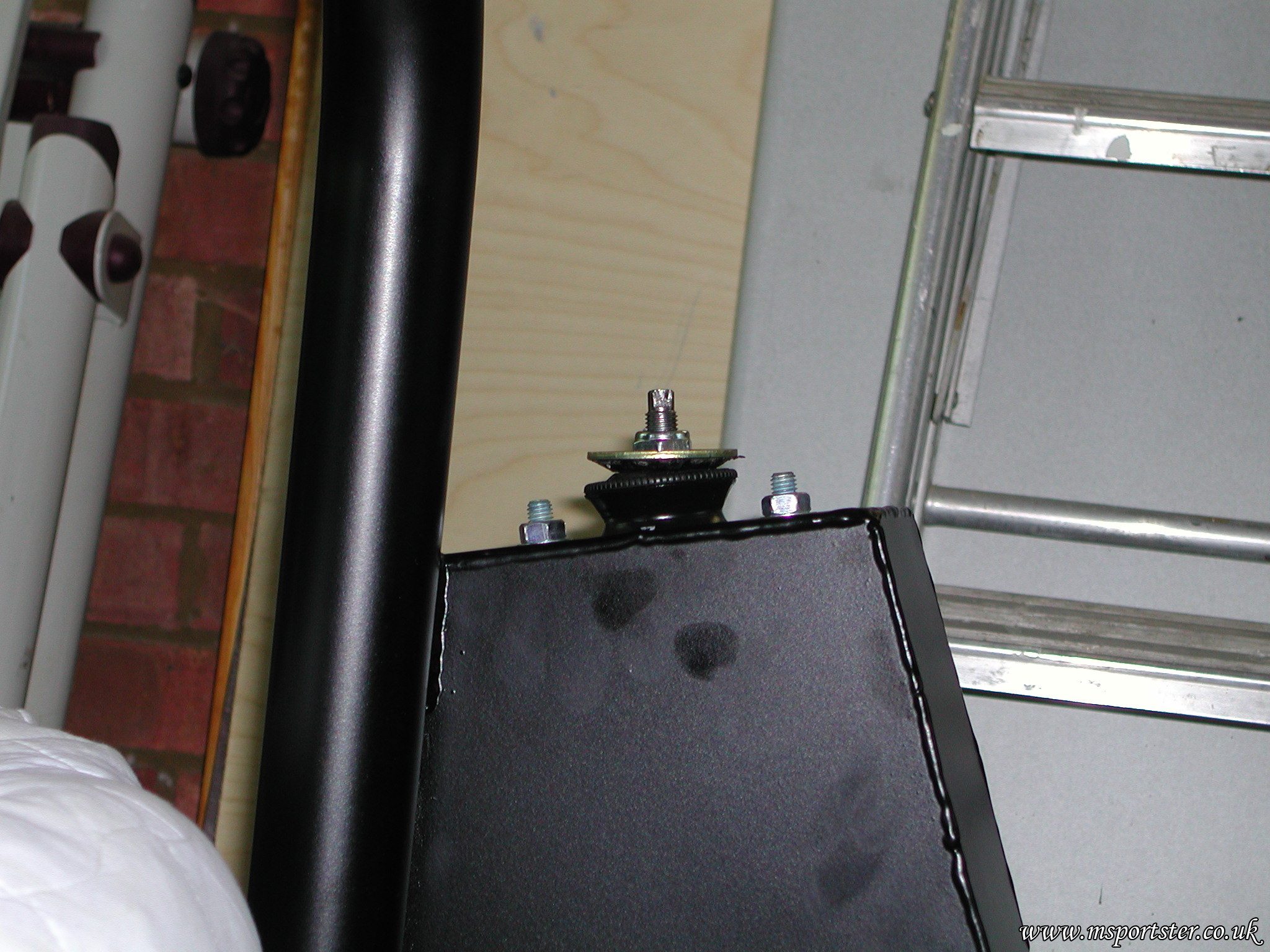

Mounted
View on screen
High Res Download
Close up
