Final Assembly
View on screen
High Res Download
Dash board re-trim without glove box (wiper motor in the way)
View on screen
High Res Download
Rear of re-trimmed dash showing pod for speaker
View on screen
High Res Download
Divers side behind the dash
View on screen
High Res Download

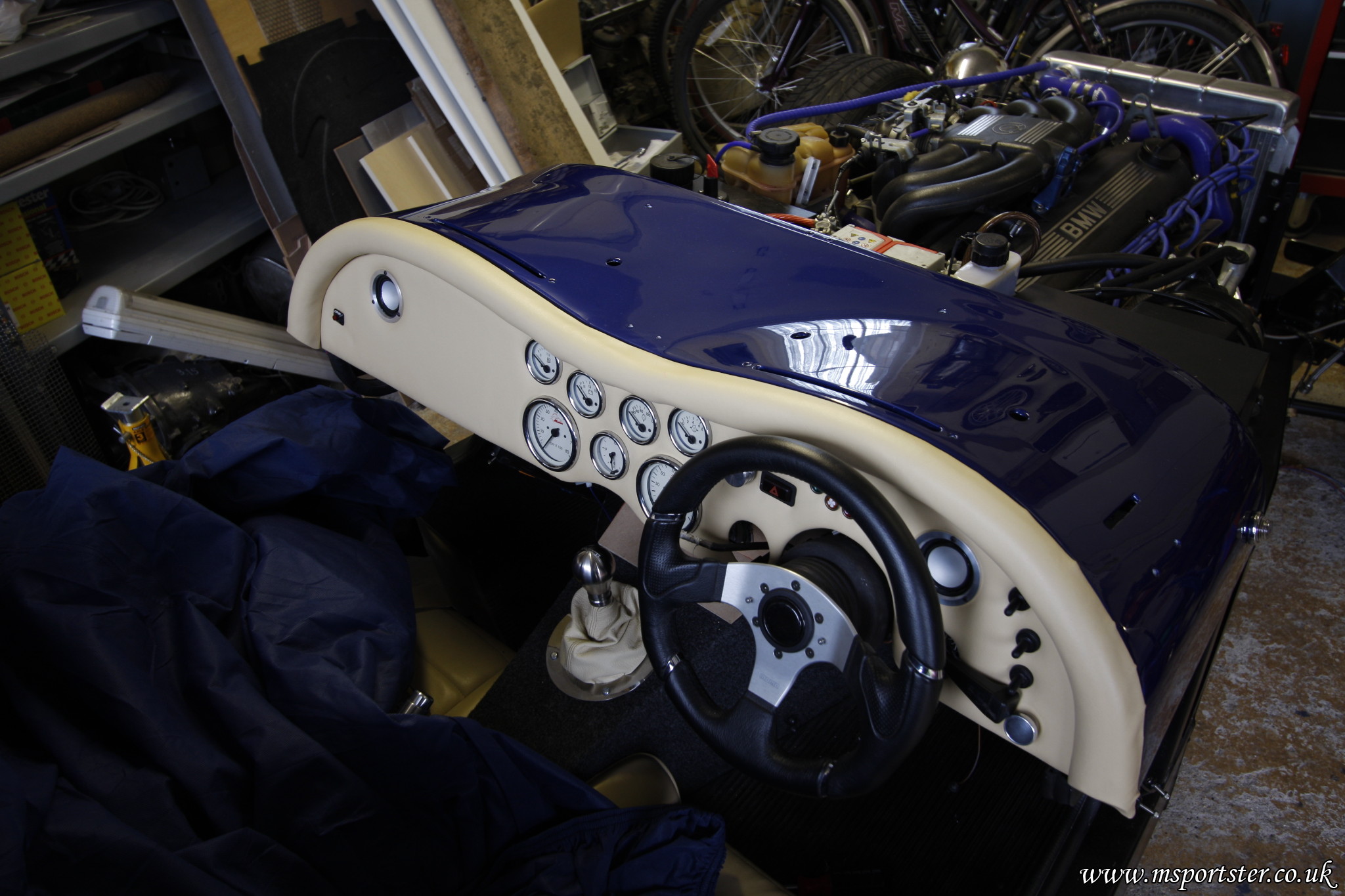

Test fit on car, the mount holes needed drilling out as the paint had filled them a bit.
View on screen
High Res Download
The speakers could do with a grille mesh to finish them off but other than that it is coming together.
View on screen
High Res Download
Rear lights installed with new waterproof plugs - a bigger job than you might expect!
View on screen
High Res Download
Final touch to the passenger speaker is grill chopped up from a larger speaker.
View on screen
High Res Download
Final touch on the hazard button is a chrome surround - now the leatherette is cut properly the switch does not need the large ali surround we made for the last dash.
View on screen
High Res Download
The driver side speaker also gets a speaker grill. The grill also acts as a barrier to keep the speaker inside the ali pot.
View on screen
High Res Download
Nose cone fitted
View on screen
High Res Download
hmm pretty colours
View on screen
High Res Download
Starting to piece together the centre console
