Bodywork fitting
View on screen
High Res Download
Fitting of 235/45/R17 8Jx17 wheel from an 8 series - ET fits 5,7 and 8
View on screen
High Res Download
Stock E30 wheel 205/55/R15 on 7Jx15 no spacers - bit tight on the bodywork
View on screen
High Res Download

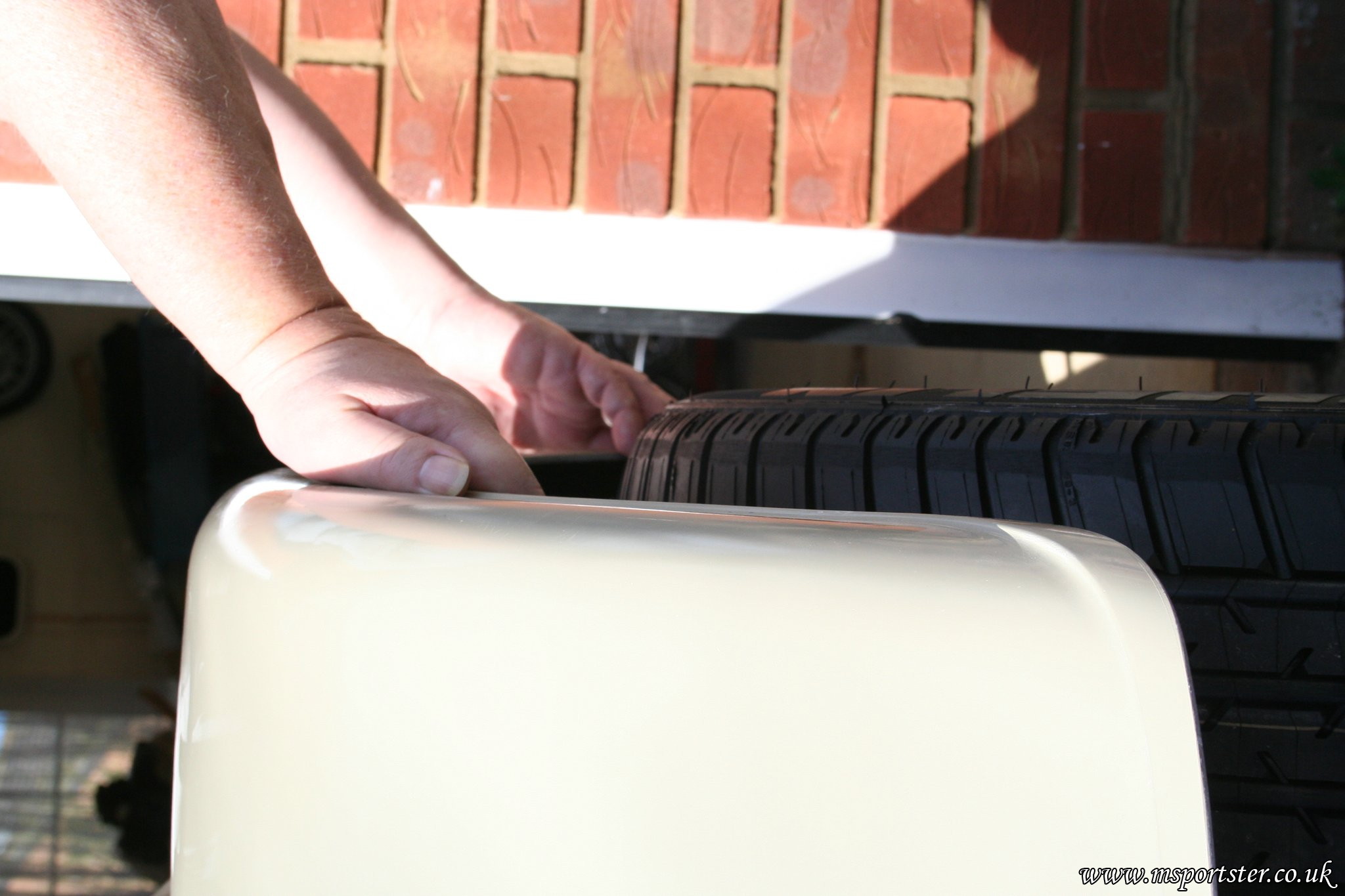

Loads of room for the wheel!
View on screen
High Res Download
But the arch is not wide enough to fit wheel in!!!
View on screen
High Res Download
Its really not going to work!
View on screen
High Res Download
Would be fine on the front though!
View on screen
High Res Download

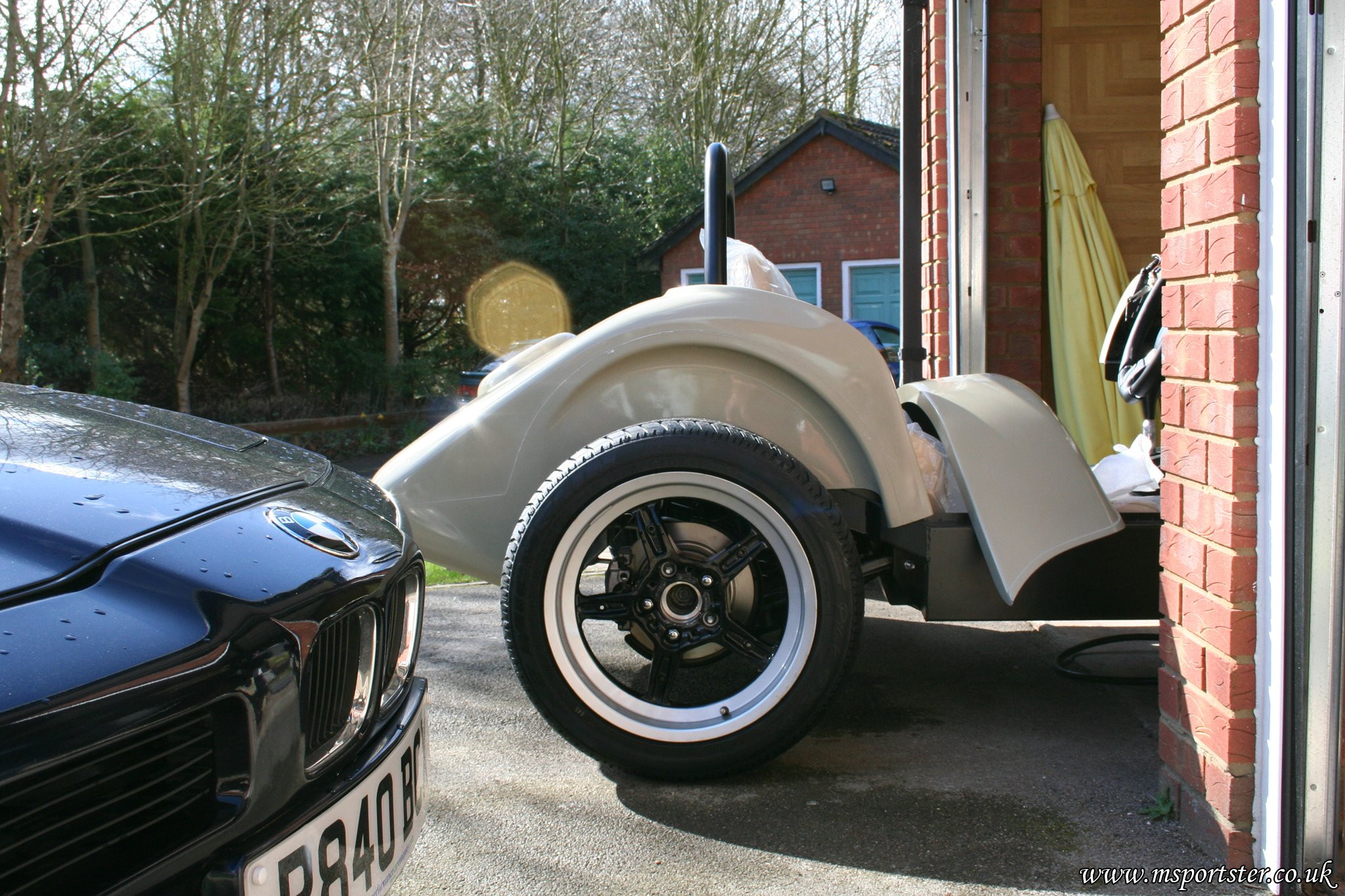

From the side
View on screen
High Res Download
Plan B E36/E46/E90 3 series wheels - 225/45/R17 on 8Jx17 - much better ! But how would i fit say a 8.5 or 9J rim with 245 or 255 wide tyre?
View on screen
High Res Download

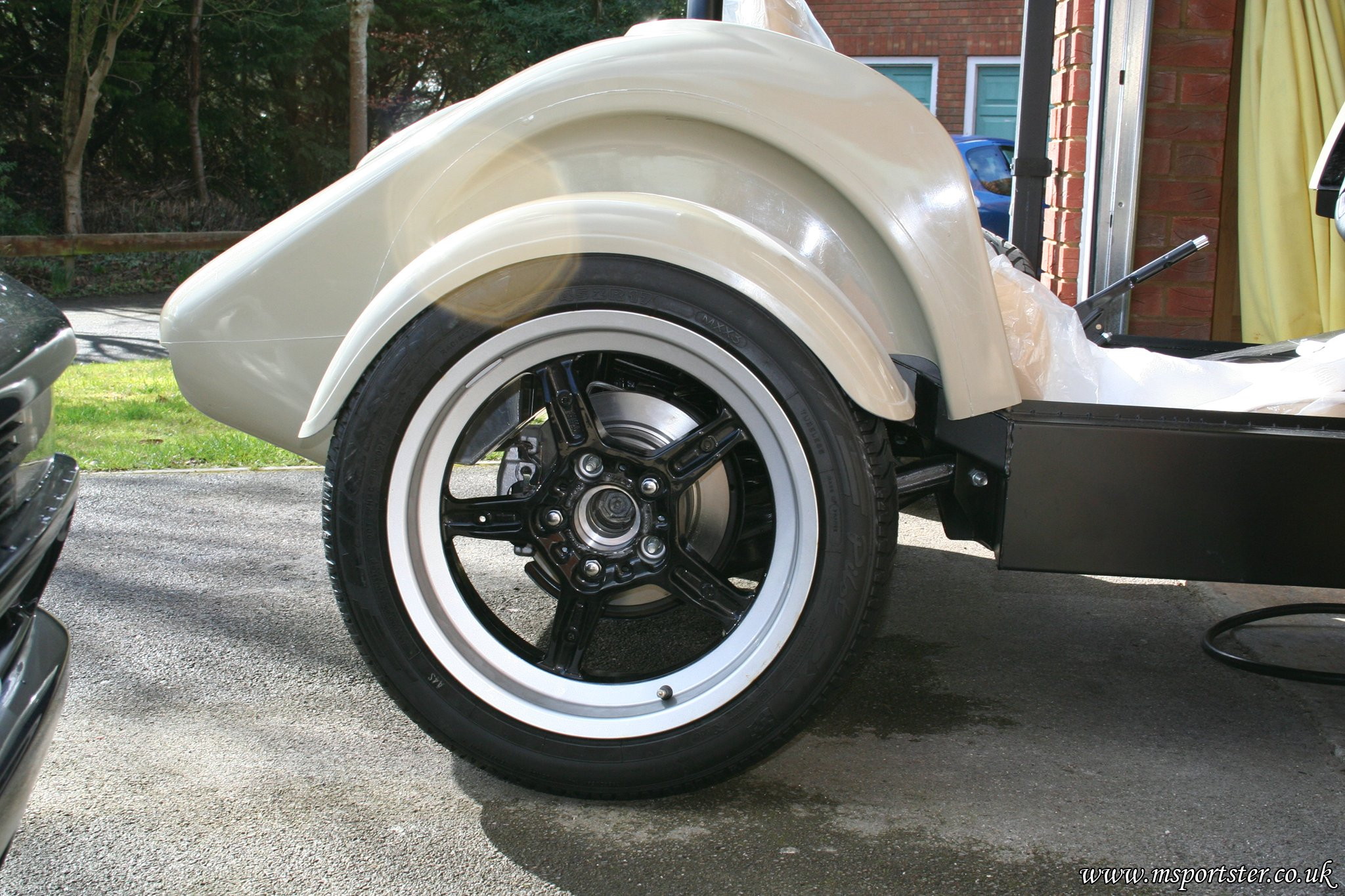

E36/E46/E90 wheel from the side
View on screen
High Res Download
It looks fine spacing wise.
View on screen
High Res Download
Door - Left side catch hole cut. Needed to make the cut out for thelatch about 1 cm higher than marked on the door so that it wouldactually unlatch.
View on screen
High Res Download
Round hole cut out on the left door
