Interior
View on screen
High Res Download

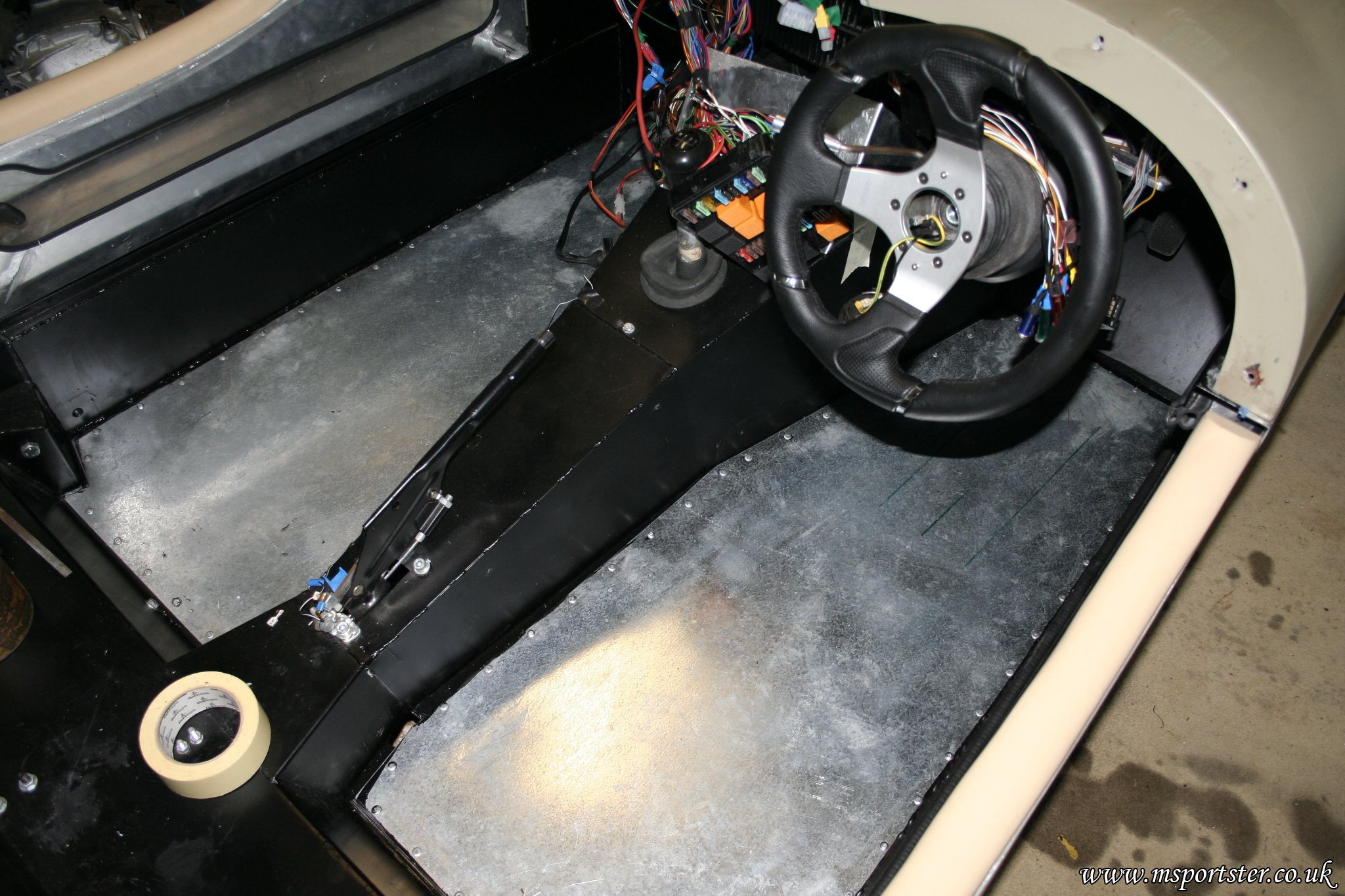

Step 6 - repeat on the passenger side, then go and rest hands / arms...
View on screen
High Res Download

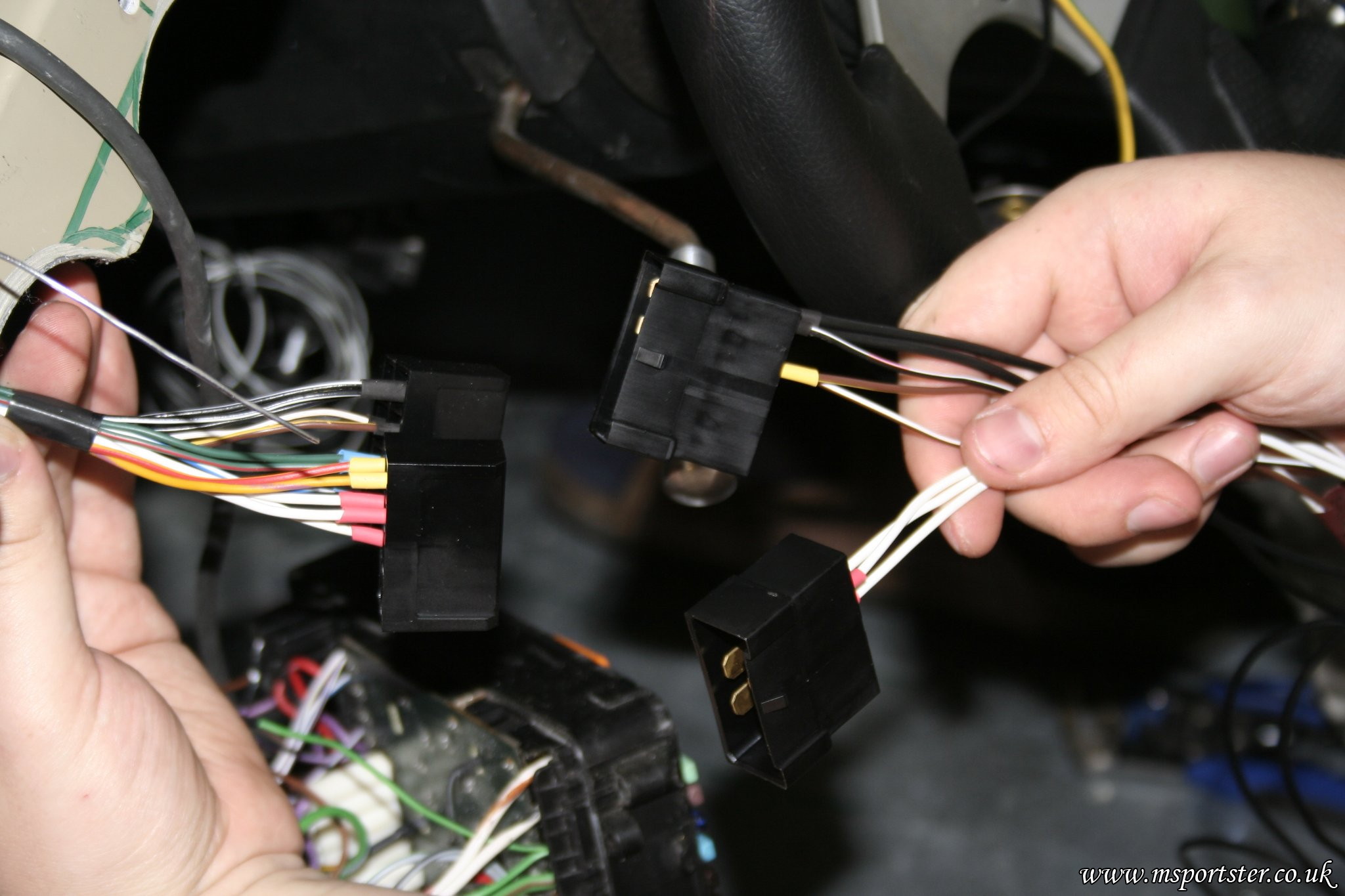

Some more wiring added, the dash is now easy to remove if need by unplugging a few multi plugs.
View on screen
High Res Download

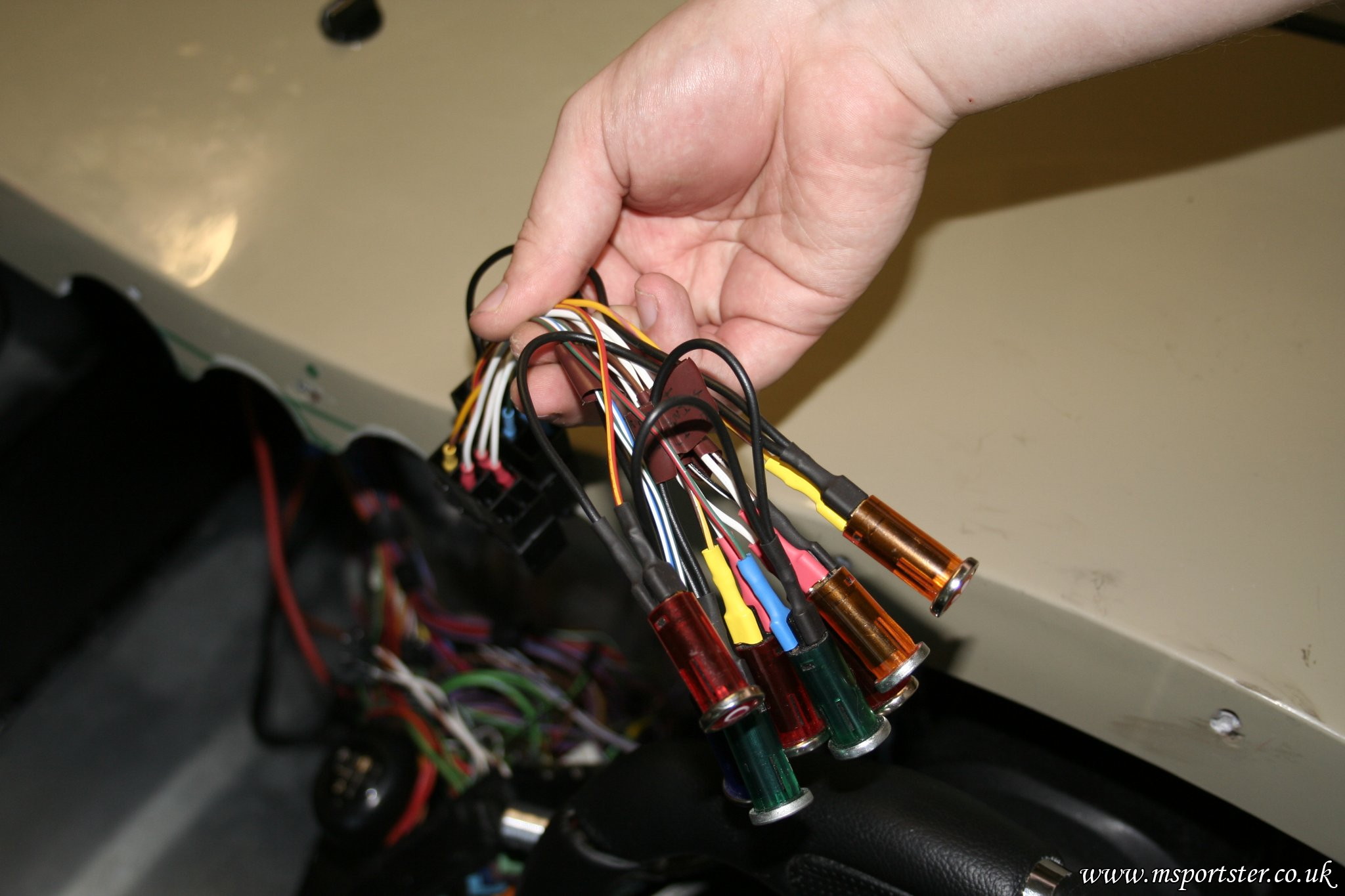

Another shot of the extra wiring!
View on screen
High Res Download

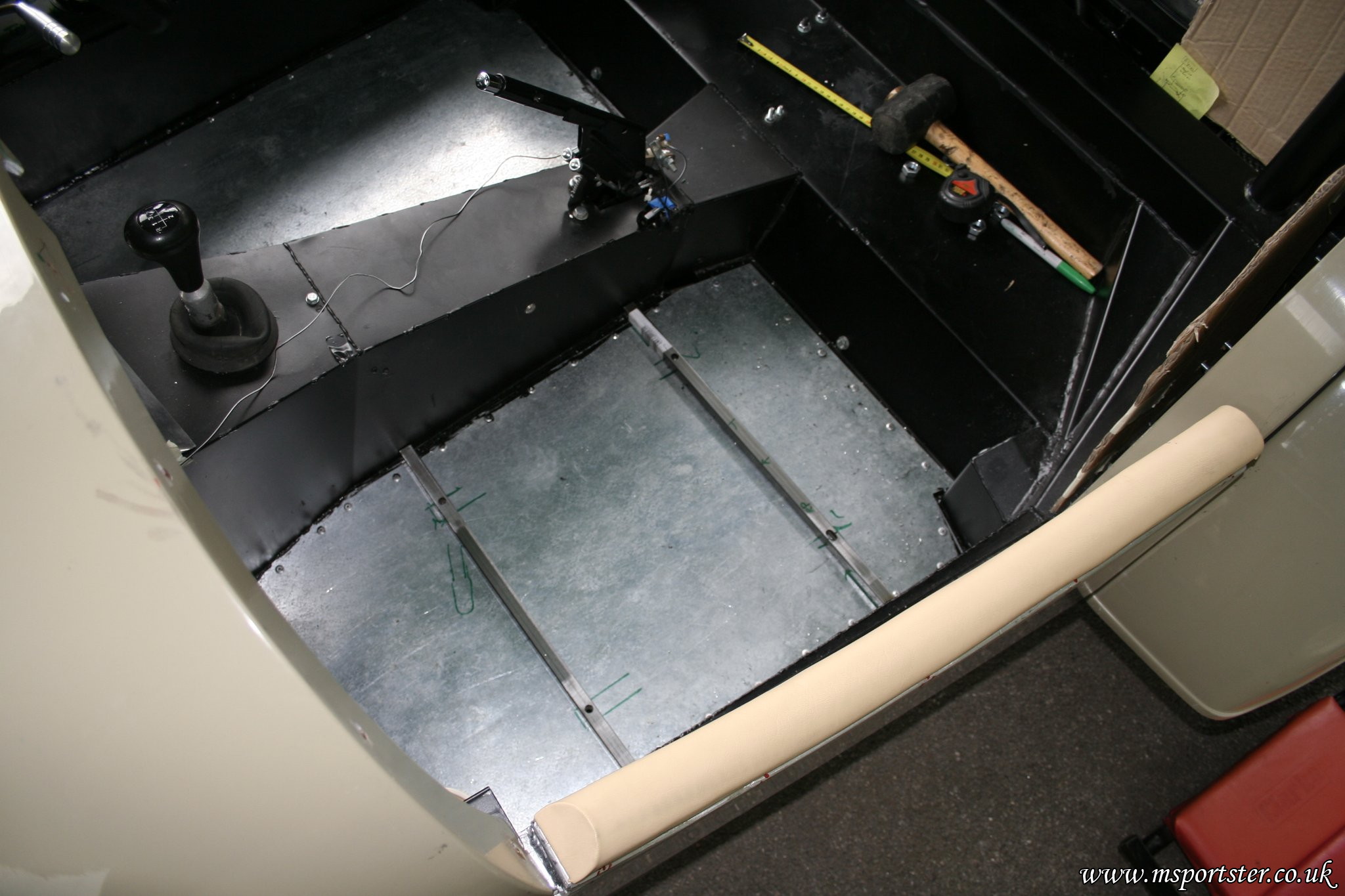

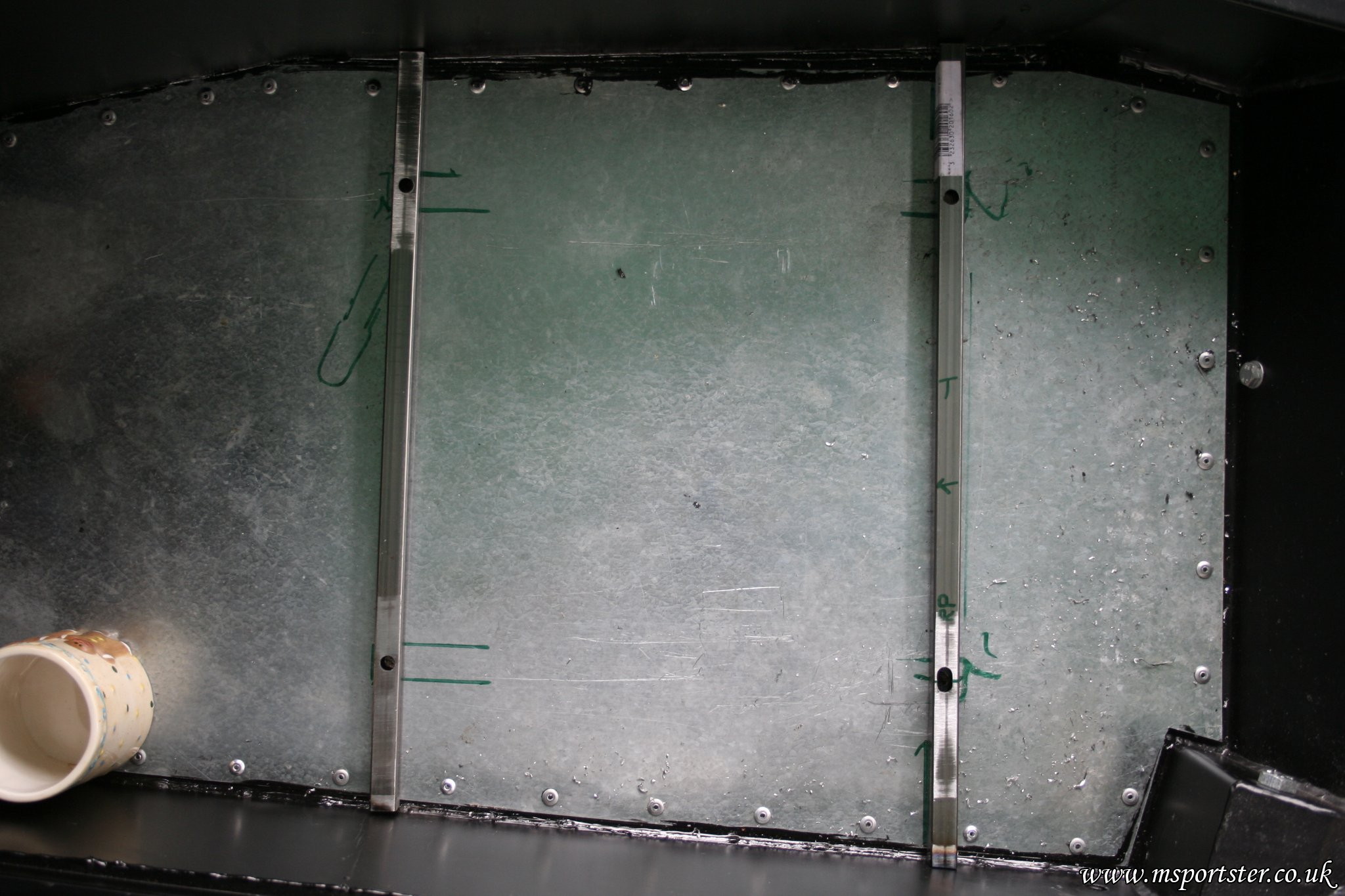

After many hours of measuring, cutting, getting it wrong and making the holes bigger these steel square bars now fit! Only realising half way that the runners on the seat itself were not parallel! Problem solved though. Did the front holes first and then later the rear ones, which you can't get to very easily!
View on screen
High Res Download
The steel bars will be drilled and bolted on the outsides through the chassis for extra strength.
View on screen
High Res Download

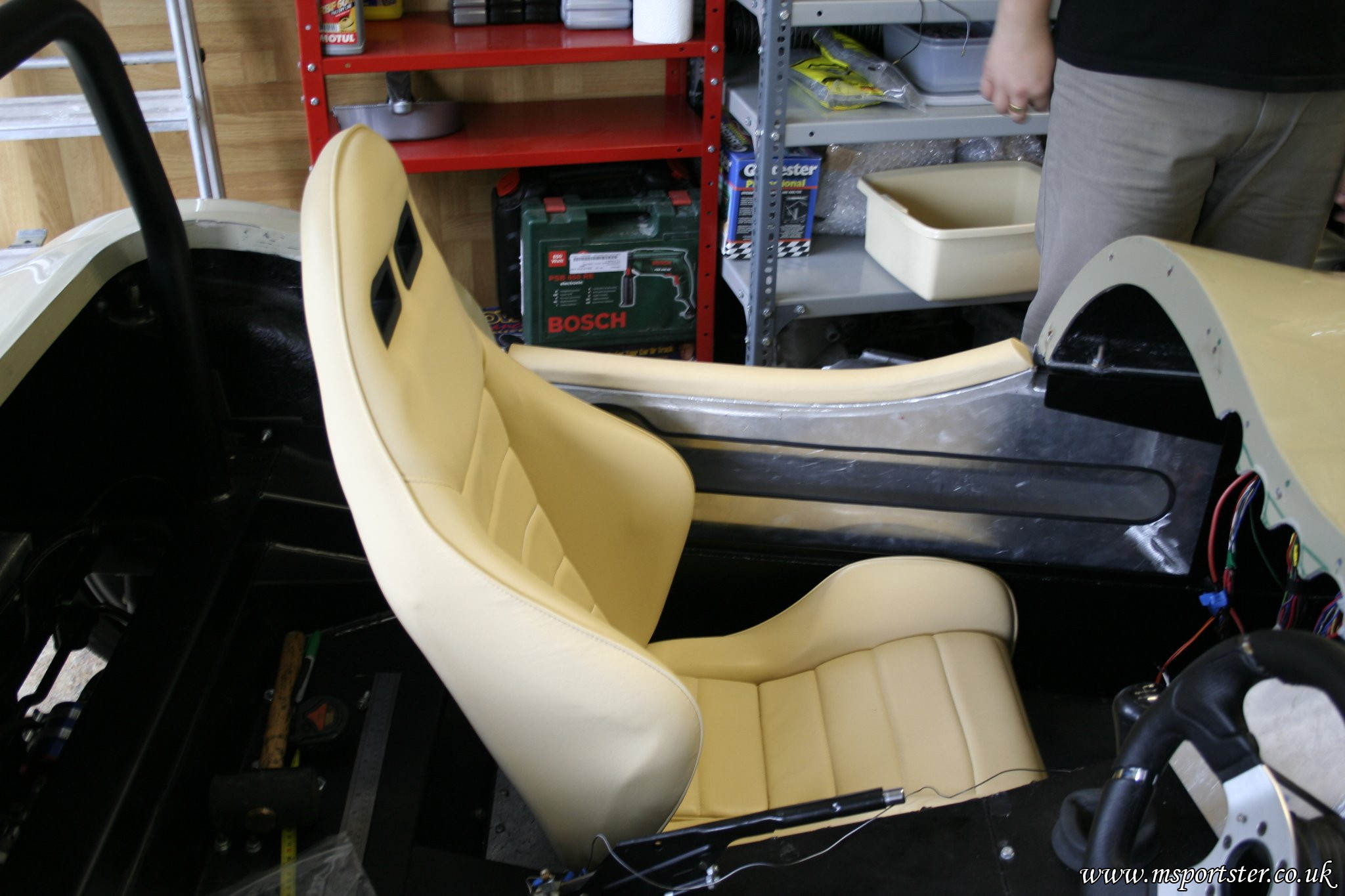

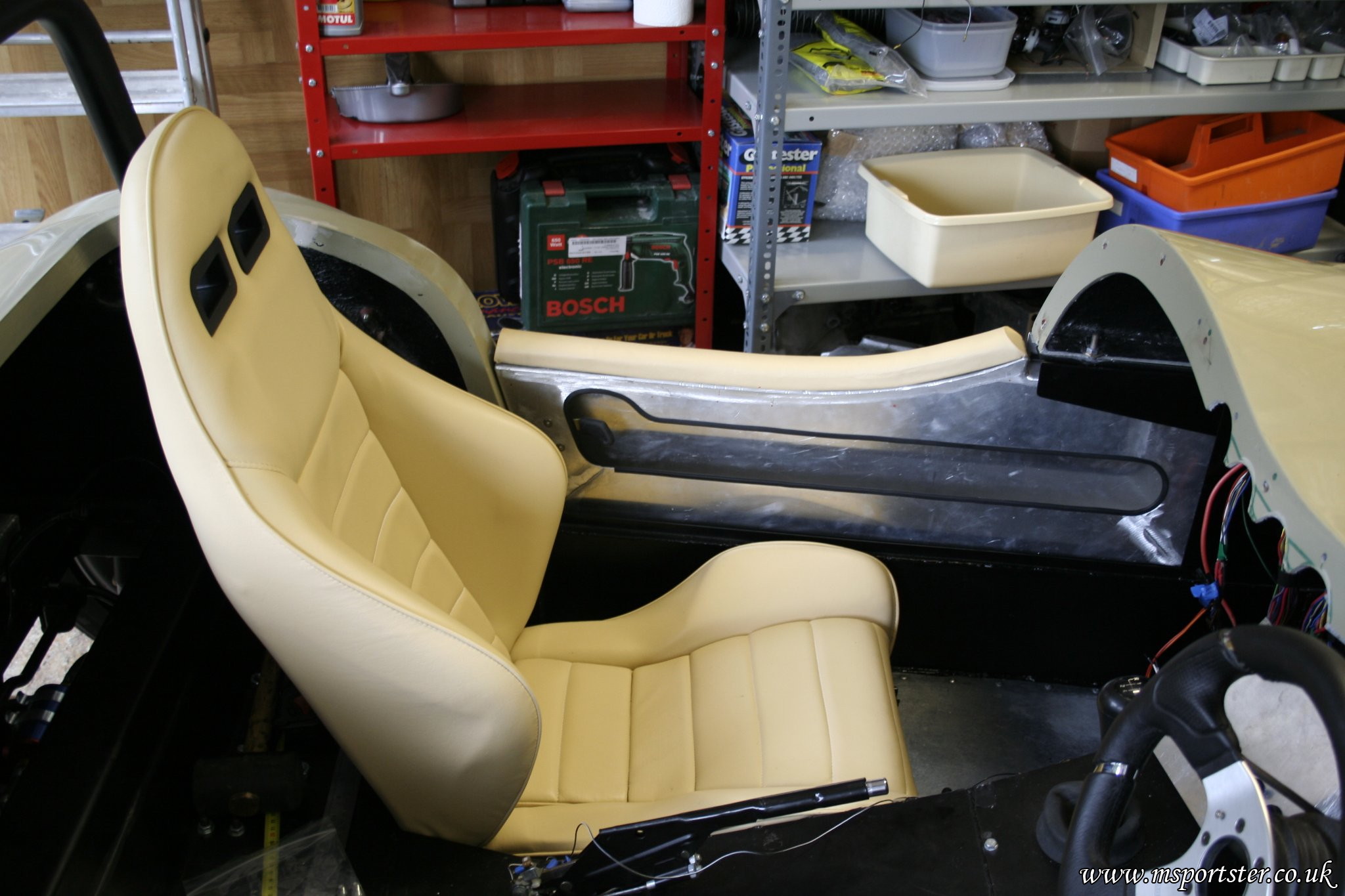

Seat in the forward position
View on screen
High Res Download

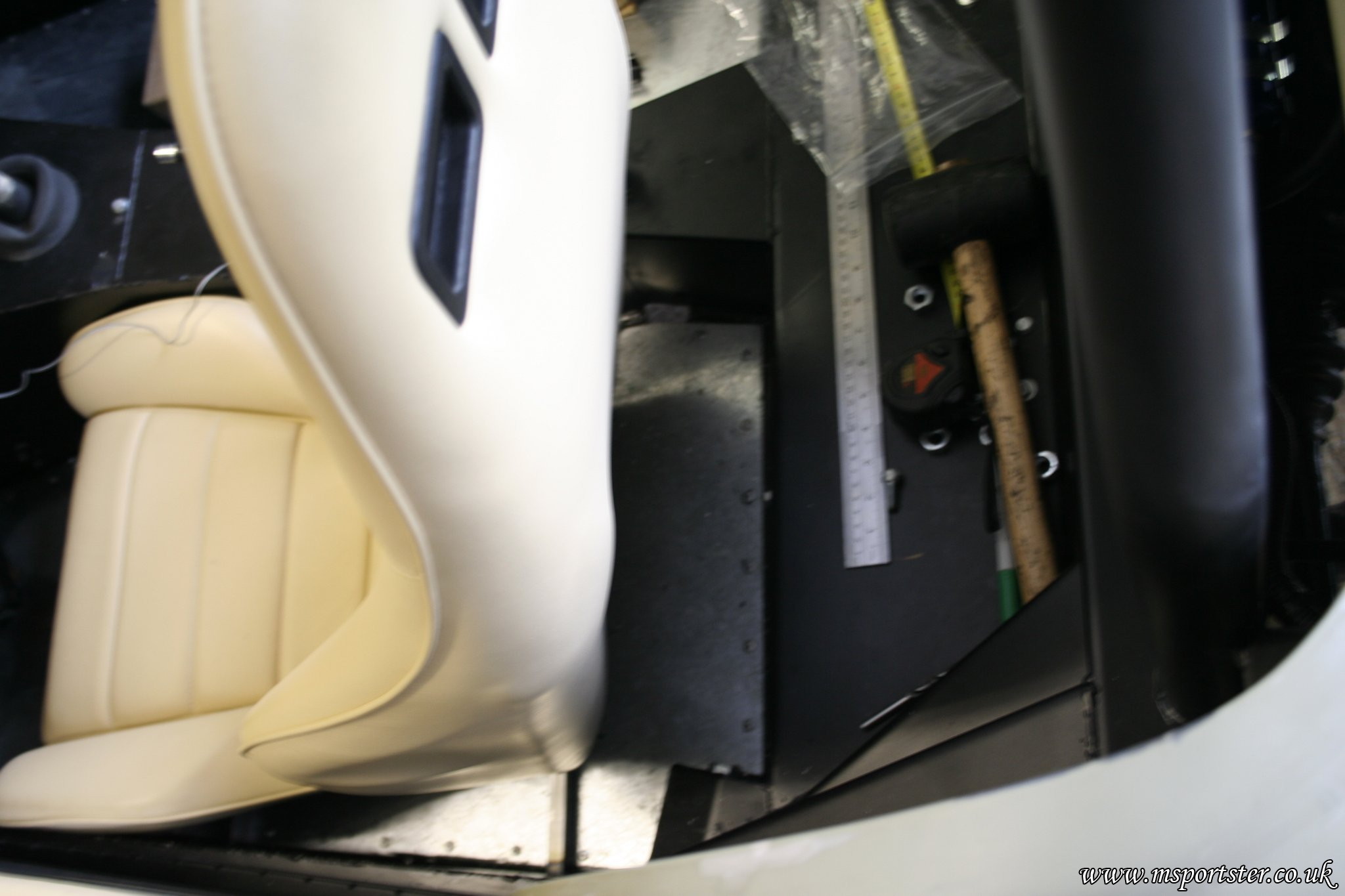

Seat all the way back
View on screen
High Res Download

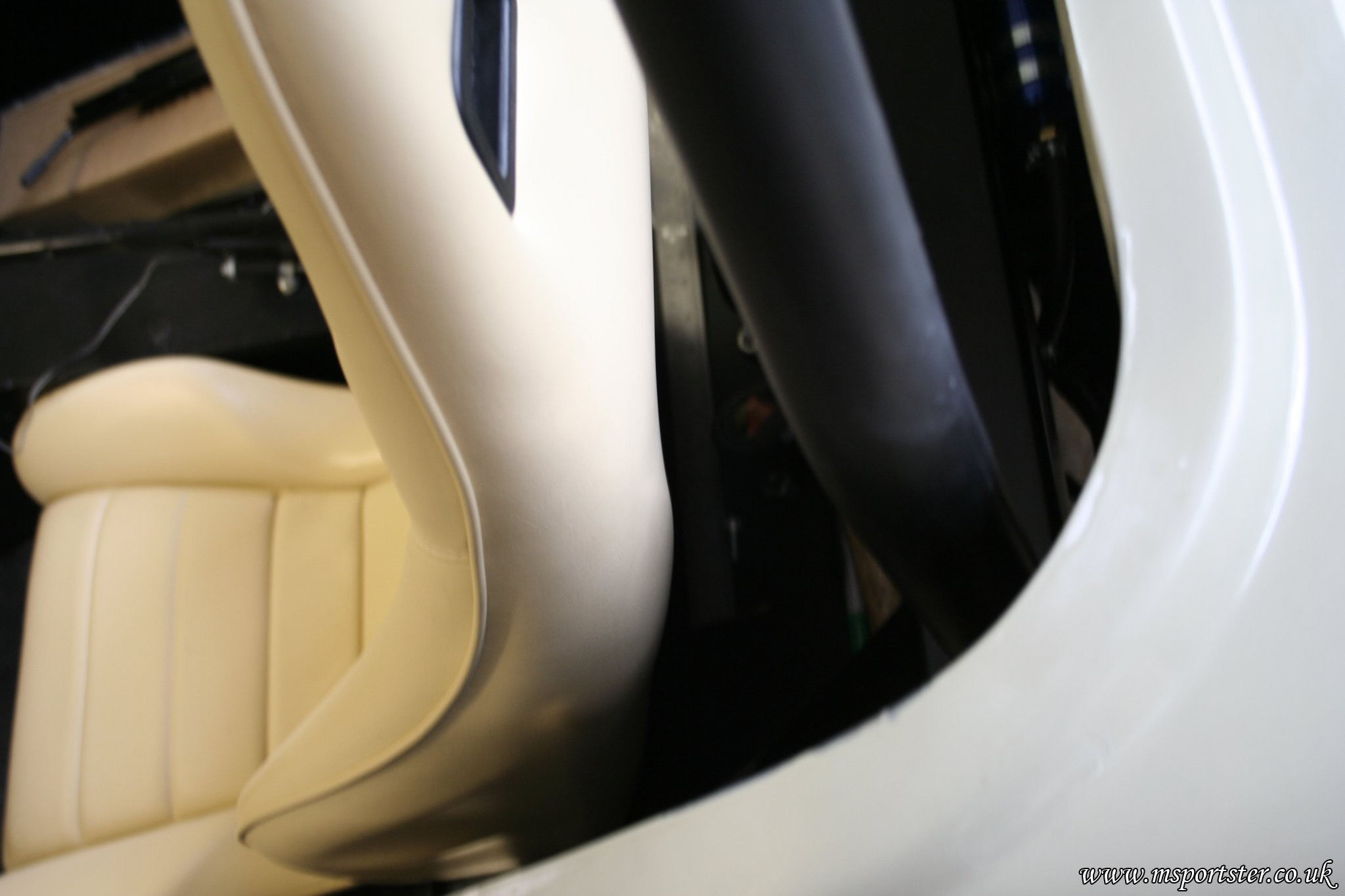

Seat all the way back for the long legged!
View on screen
High Res Download
Seat forward for the shorter legged!
View on screen
High Res Download

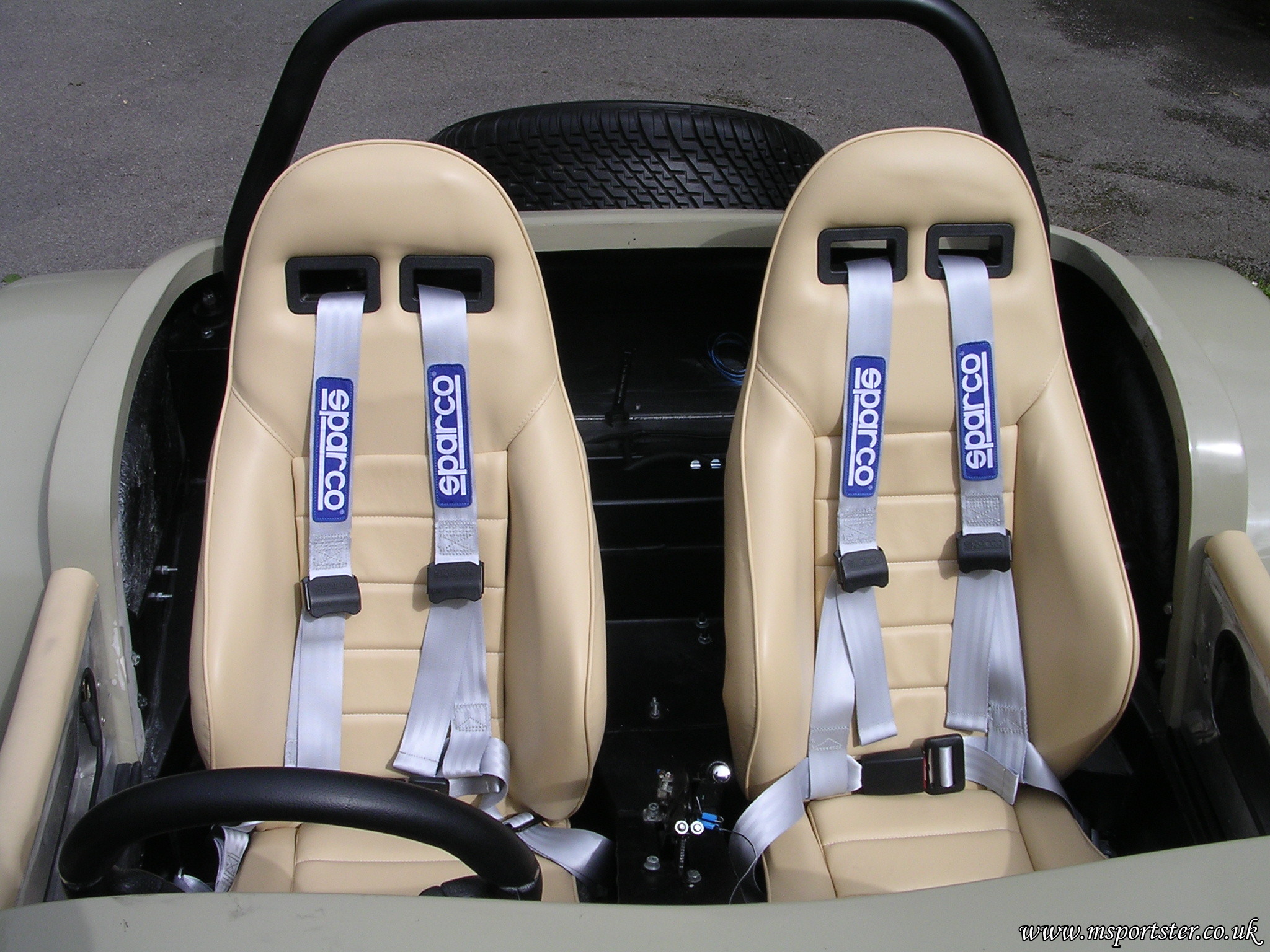

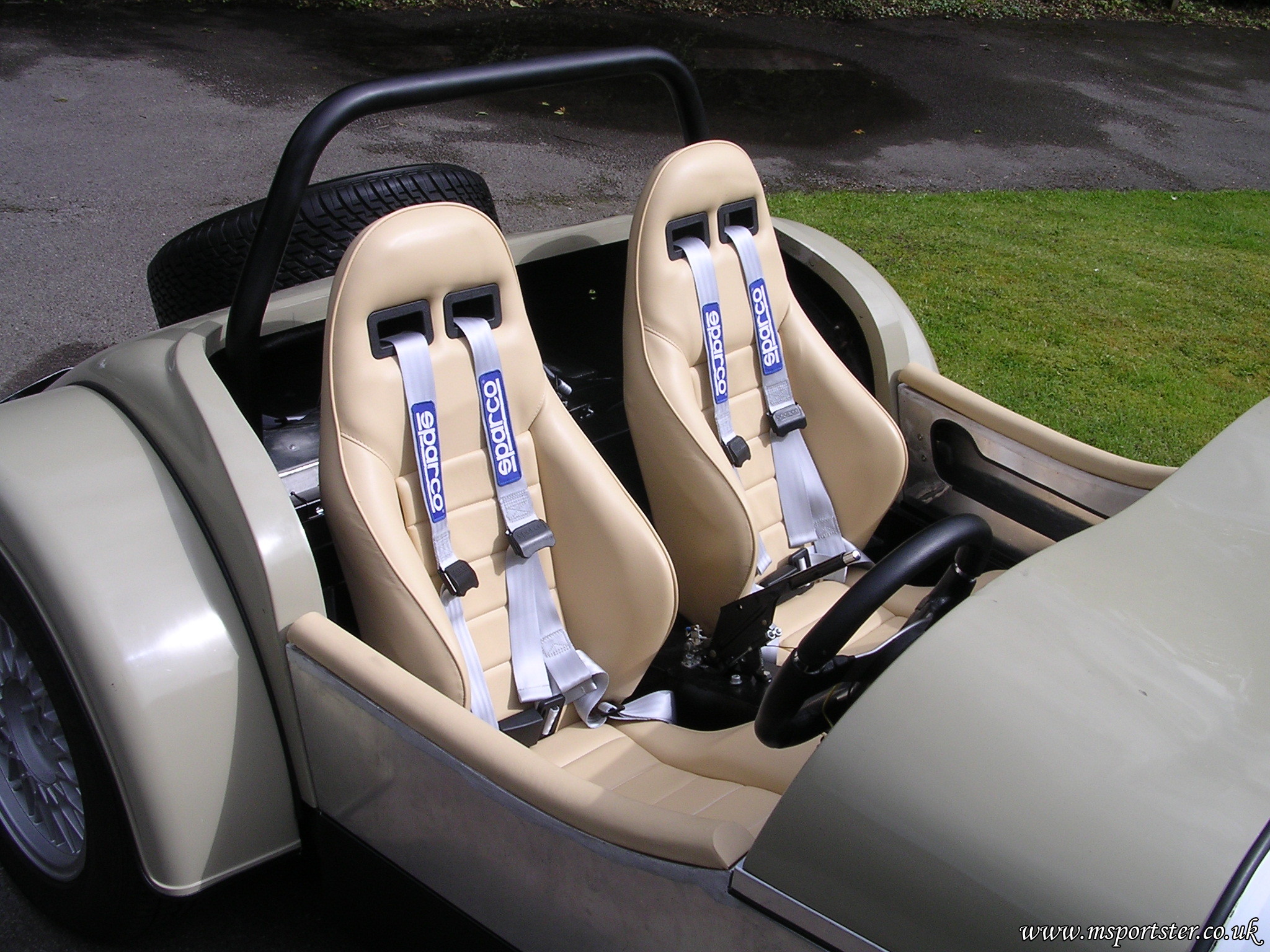

And then there was two! Driver side seat fitting, it was much easier second time through.
View on screen
High Res Download

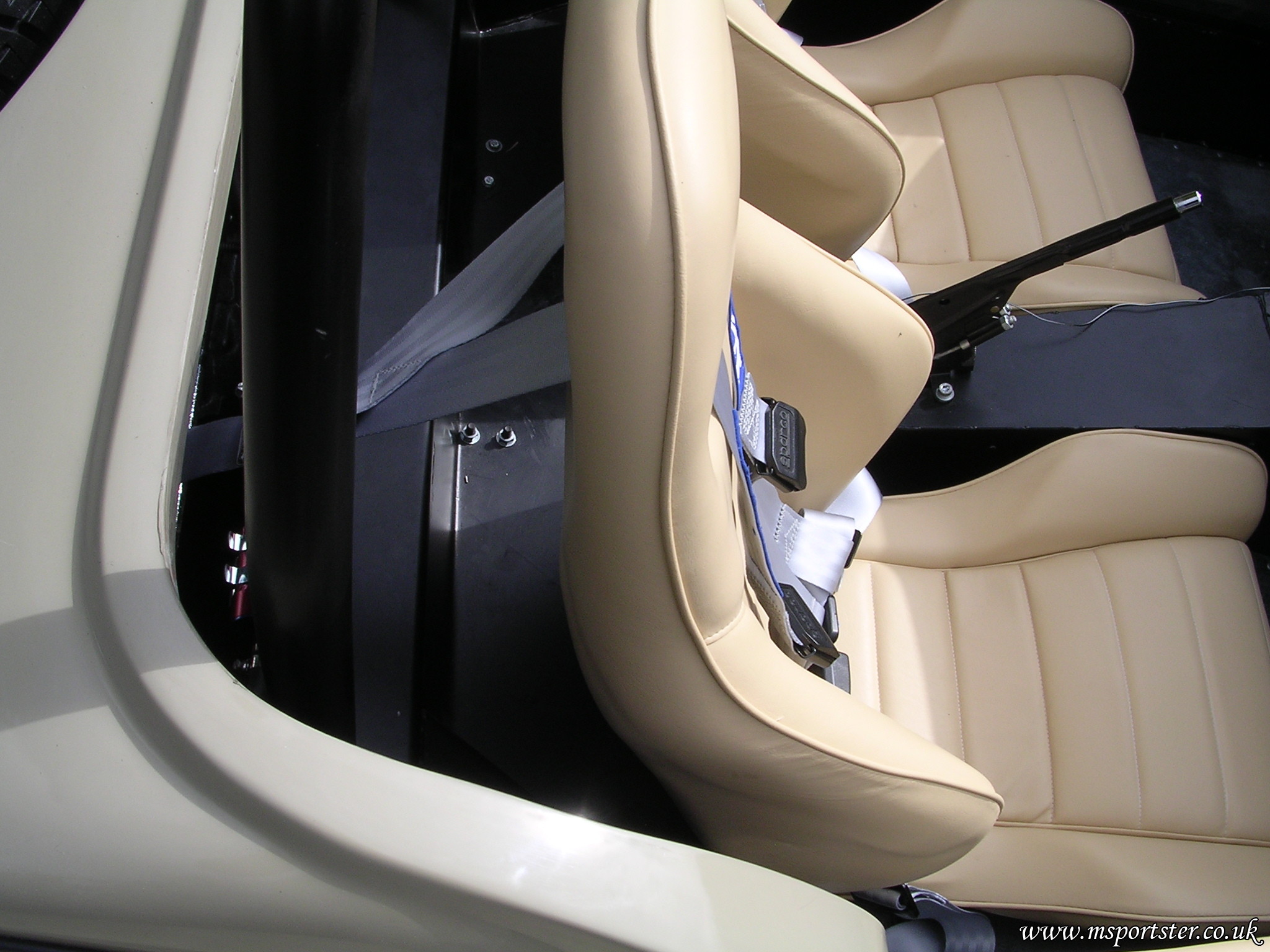

However the second seat needed to line up the same as the first seat, they are not 100% but it's very close.
View on screen
High Res Download
Seat goes forward...
