A collection of images showing the cars build to a working chassis coming together
Total Images in this section: 551
-
Preview Image
Full Size (0.51Mb)

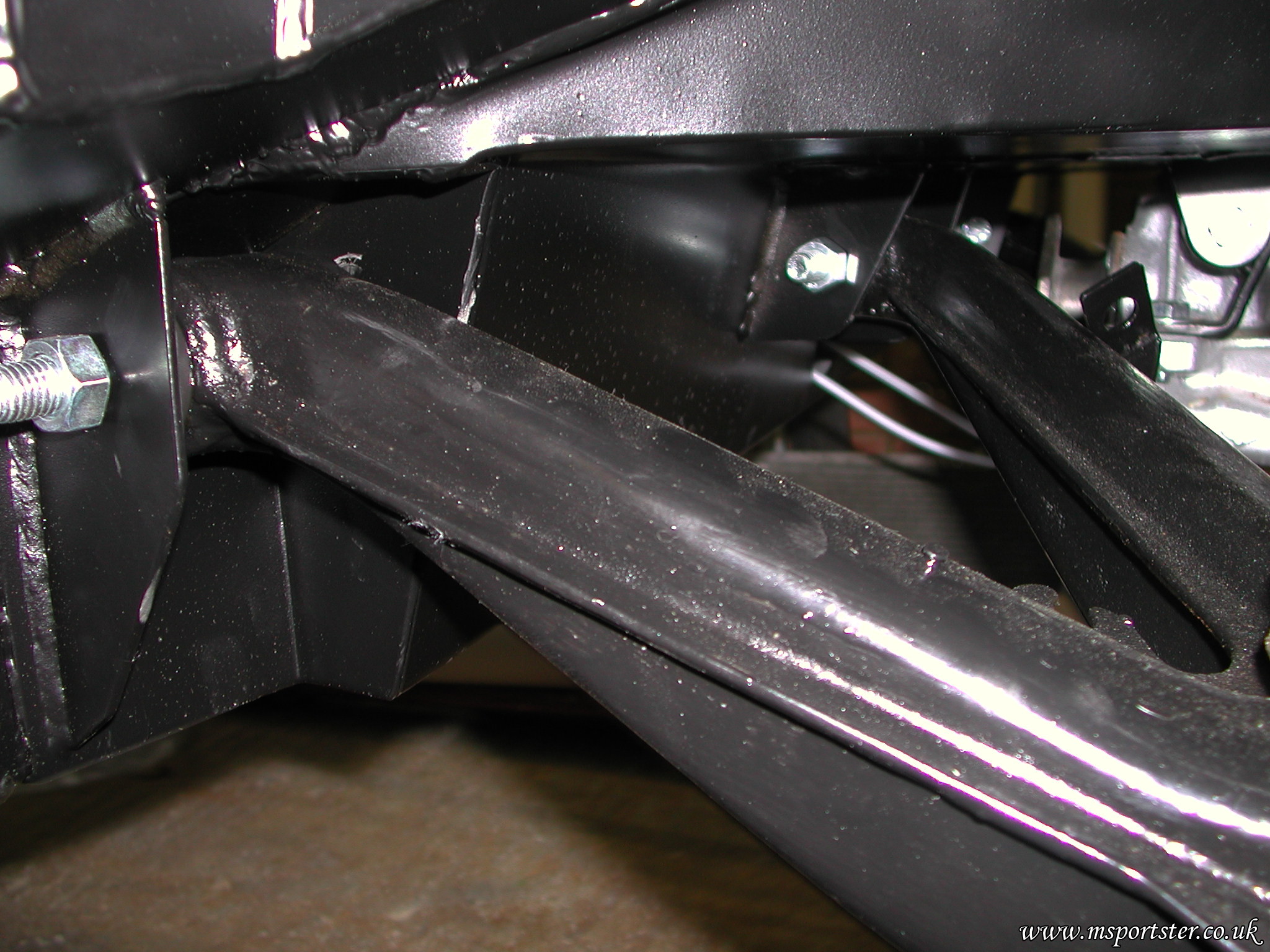

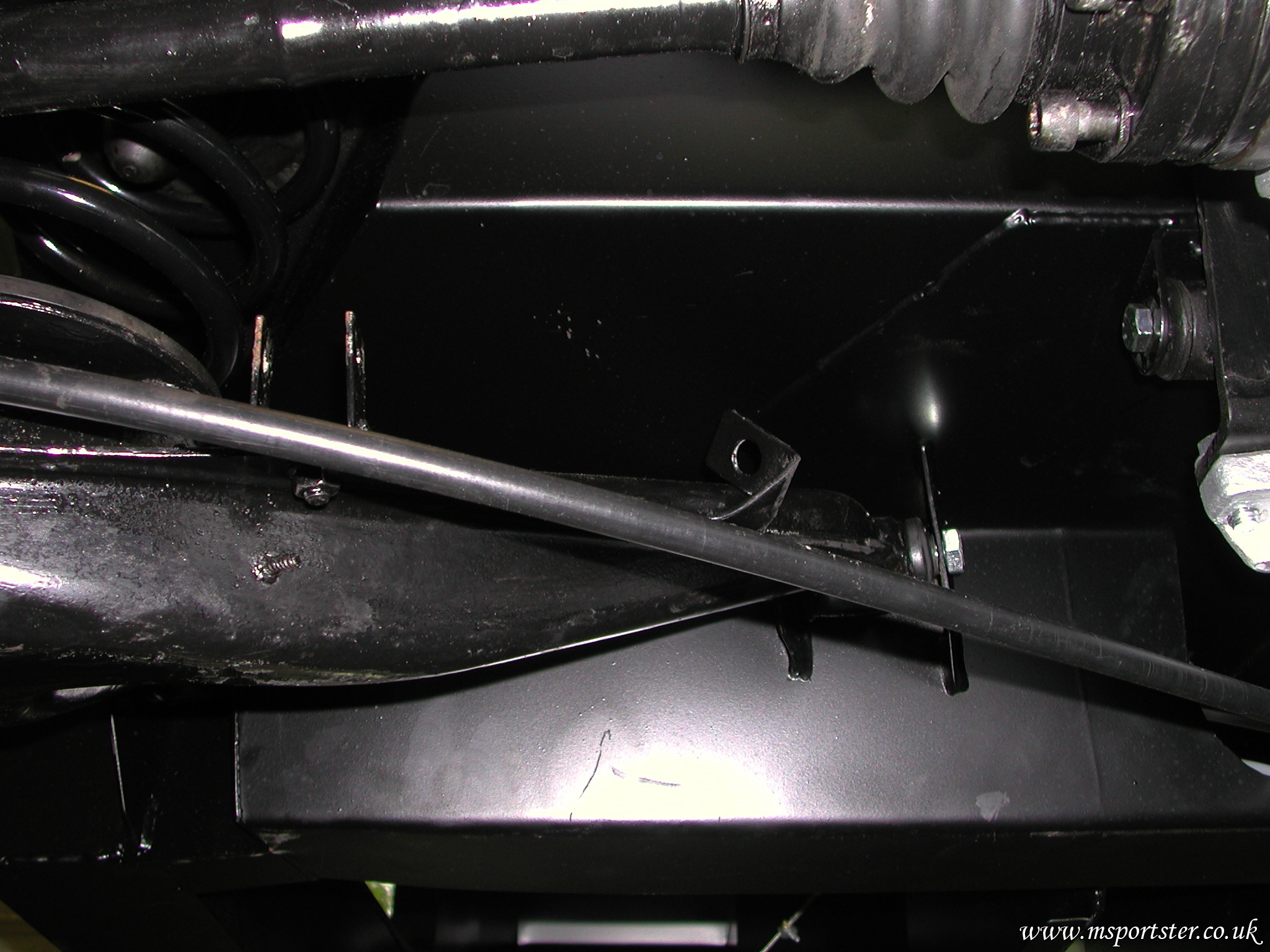

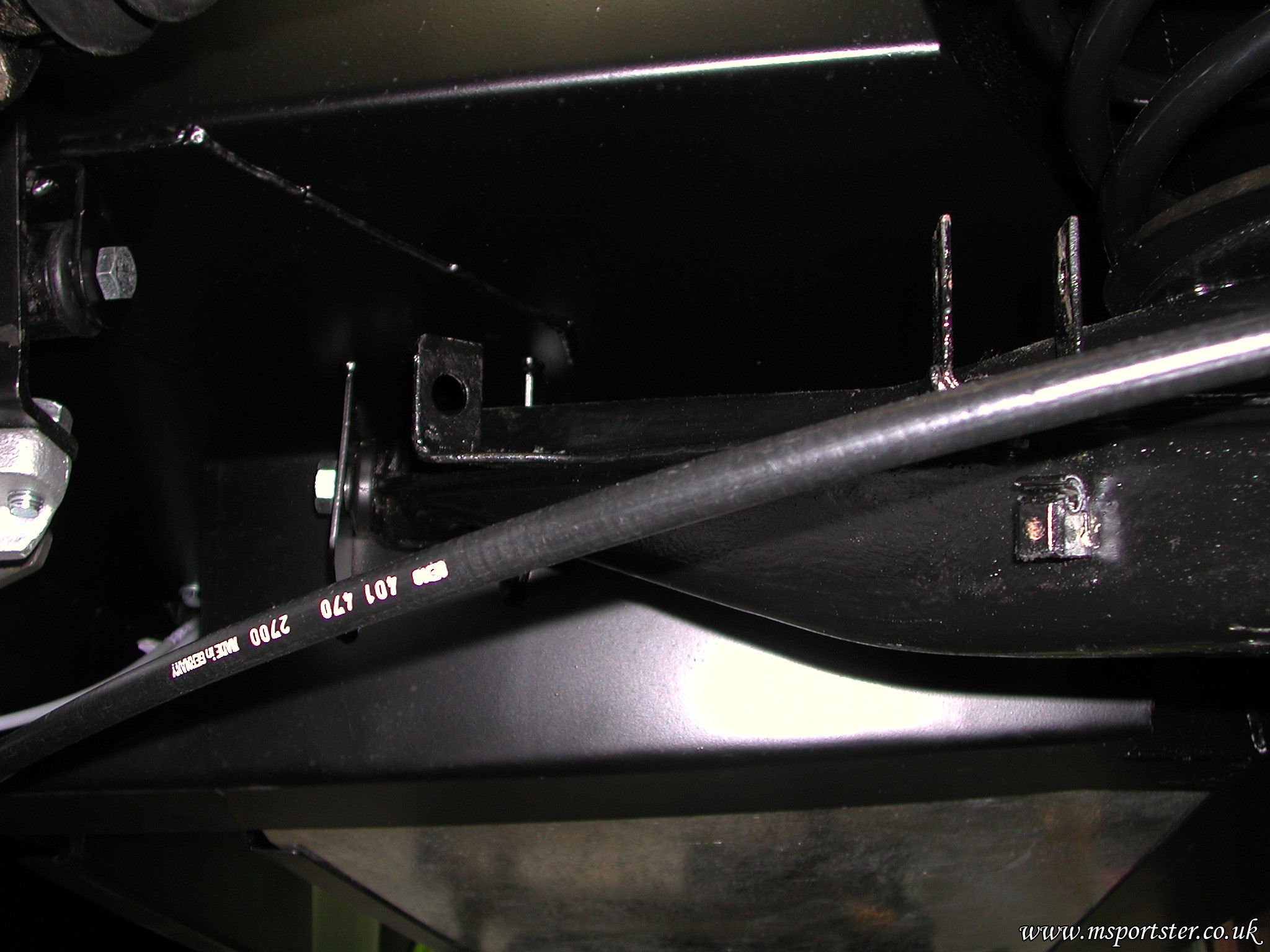

Rear sub frame (hand brake cable loose) -
Preview Image
Full Size (0.55Mb)
Rear sub frame (hand brake cable loose) -
Preview Image
Full Size (0.62Mb)
Rear sub frame (hand brake cable loose) -
Preview Image
Full Size (0.62Mb)

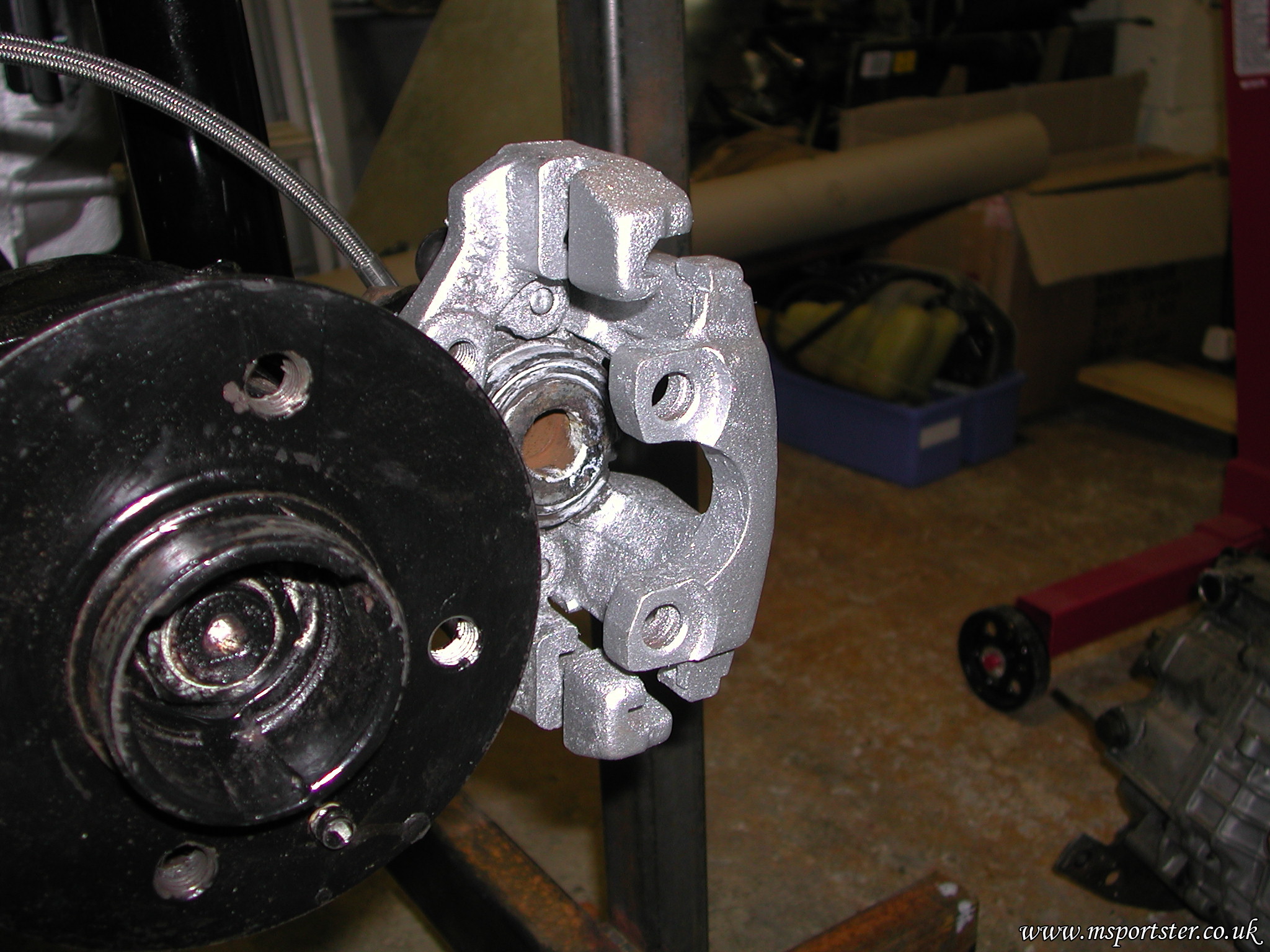

Brake caliper rear cleaned up and painted -
Preview Image
Full Size (0.60Mb)
Brake caliper rear cleaned up and painted -
Preview Image
Full Size (0.89Mb)

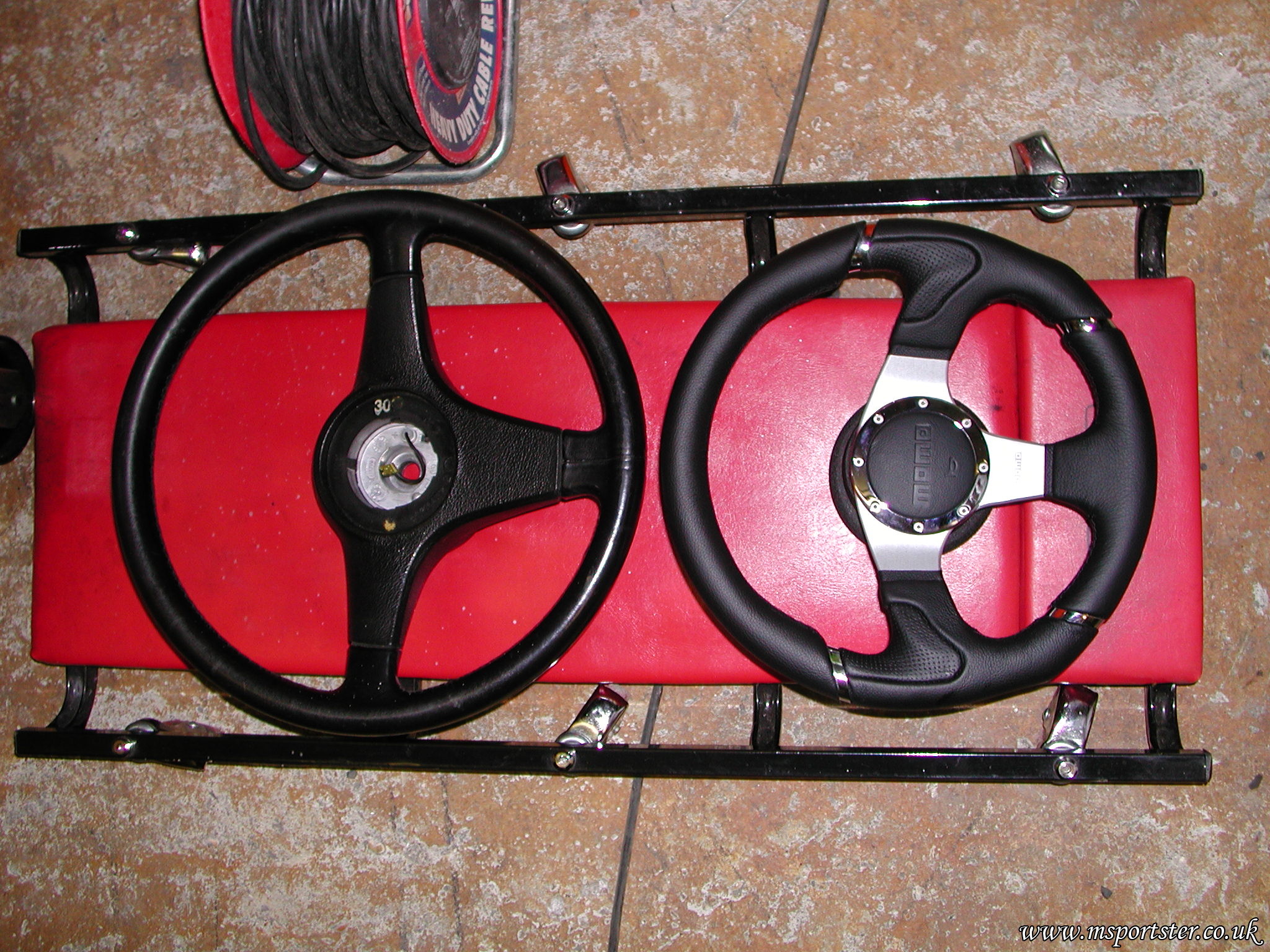

Momo wheel compared to the one that came with the donor -
Preview Image
Full Size (0.64Mb)
Waiting for parts so I decided to tackle the pedal box. Below bolt/tube that comes with the pedal box, above the same but from the donor. These are for the brakes. The donor used nice ball bearings which I want to use on the Sportster -
Preview Image
Full Size (0.53Mb)

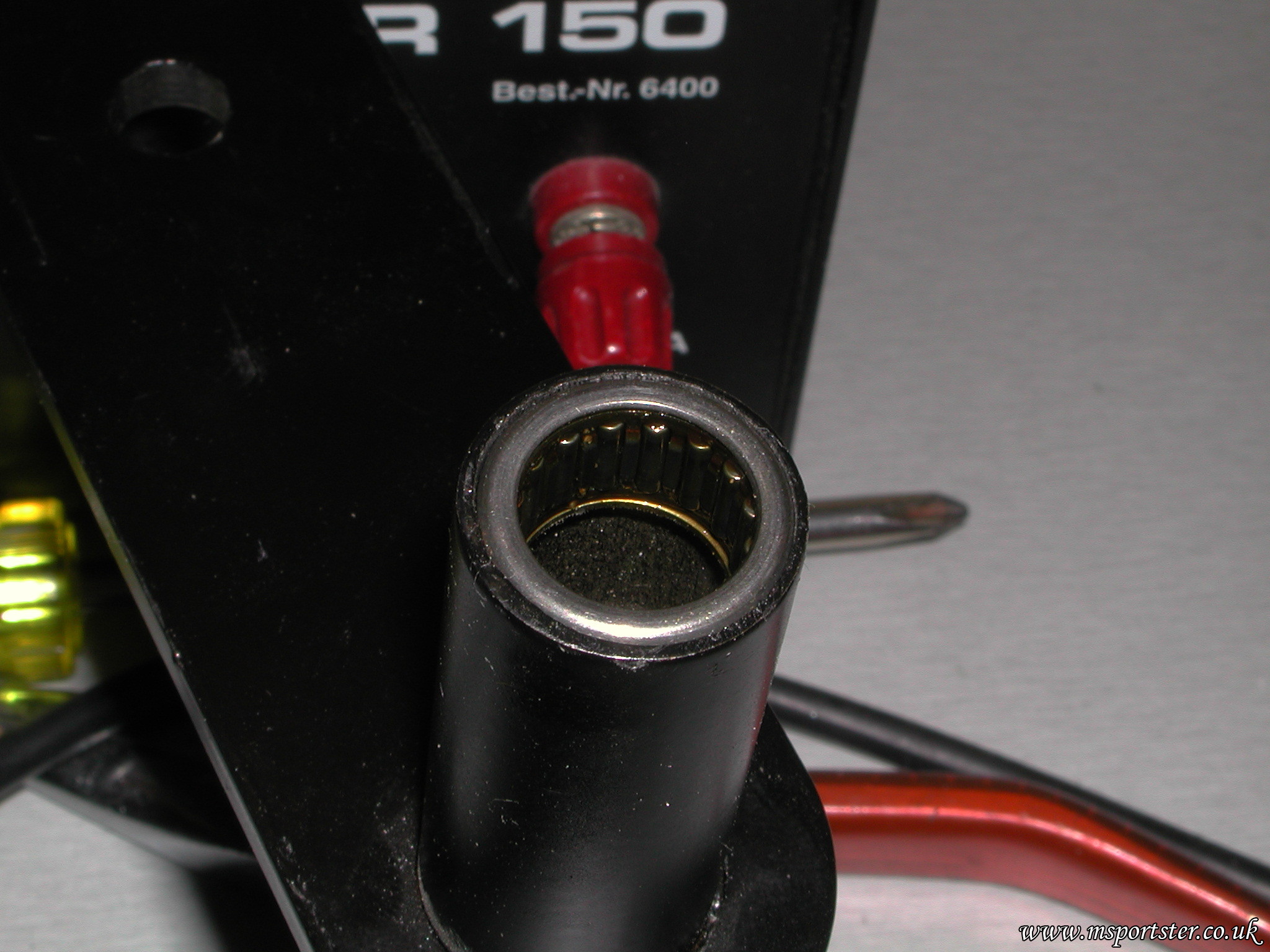

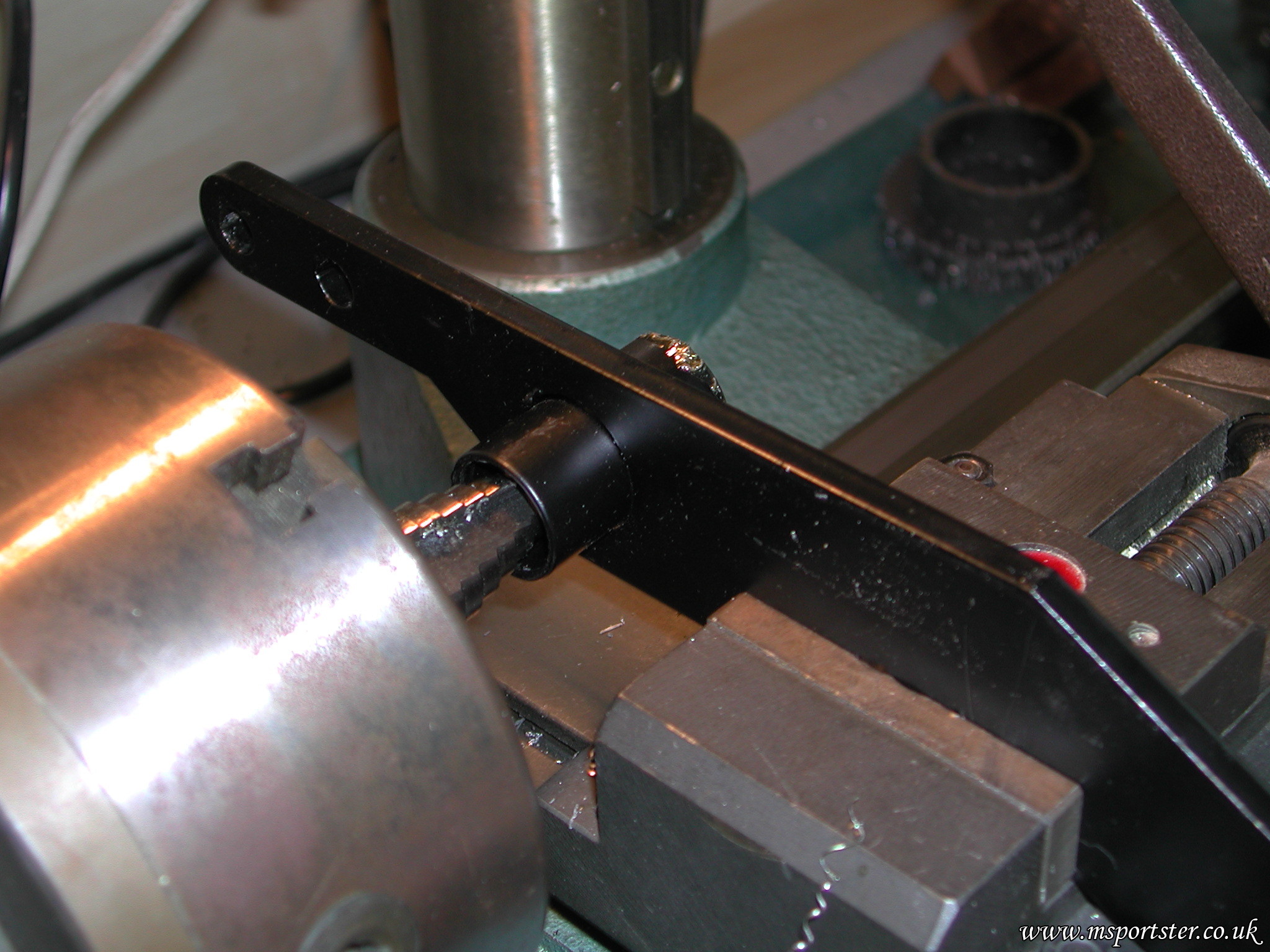

A little bit of work on the lathe to drill out the tube on the pedal and in pop the donor ball bearings. -
Preview Image
Full Size (0.55Mb)
The clutch part needed the metal turning down a bit so the plastic sleeves from the donor would fit. After bolting together I was not happy with the amount of friction in the system, so I decided to do this one the same as the brakes. -
Preview Image
Full Size (0.59Mb)
Clutch mater cylinder needed the holes drilling out to a bit to fit the screws through. Nice fit now. -
Preview Image
Full Size (0.61Mb)

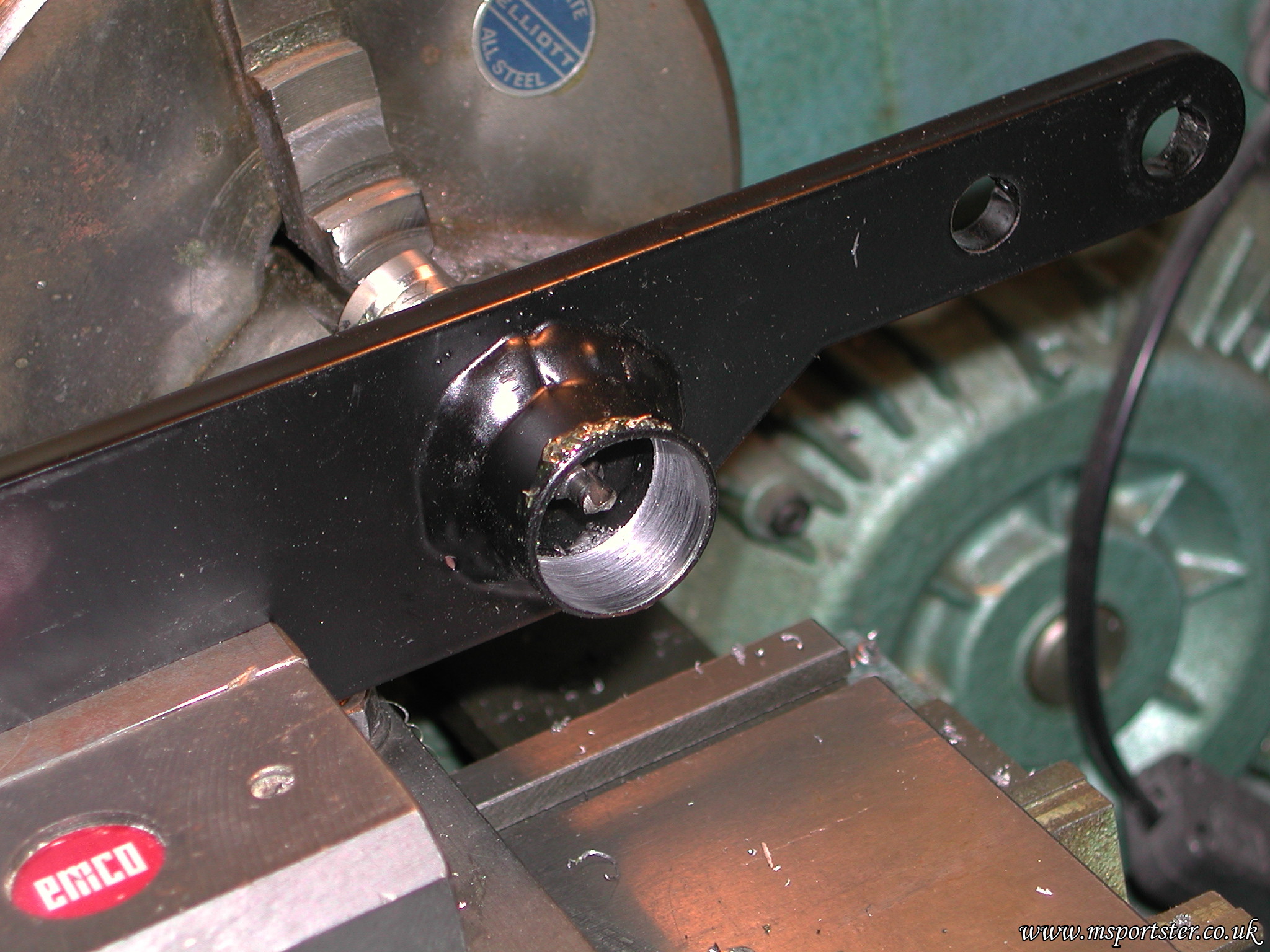

Starting the drilling out process - this give a starting point to use the 20mm milling bit that I had -
Preview Image
Full Size (0.63Mb)
Once side complete, now starting the other
