  They didn’t quite fit but after a bit of help from the mallet I got them in.
•
  Preview Image
  Full Size (0.76Mb)
  The diff had a tab on the front that needed grinding off to fit
•
  Preview Image
  Full Size (0.66Mb)
  The standard dampers are shot, but I am using those until I get replacements
•
  Preview Image
  Full Size (0.27Mb)
  One spring was broken, the other the wrong size so I am going to get new ones. I am not comfortable collapsing or cutting springs so I will get ones the correct size.
•
  Preview Image
  Full Size (0.54Mb)
  Close but not quite in the right place. Need to talk to Marlin about this
•
  Preview Image
  Full Size (0.47Mb)

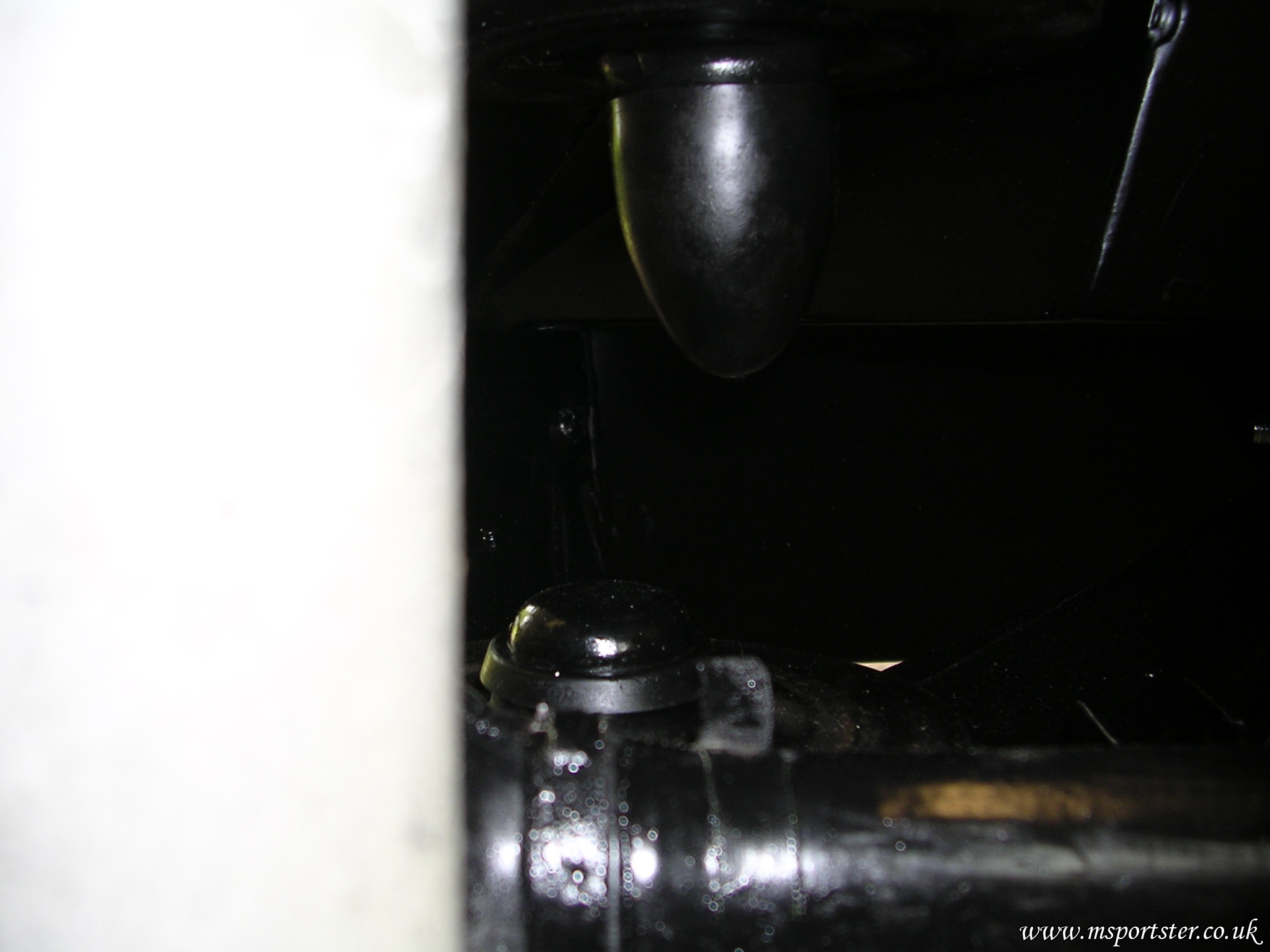

  Hmm having some issues with the spring seats not lining up, this sites worse than the other
•
  Preview Image
  Full Size (0.55Mb)

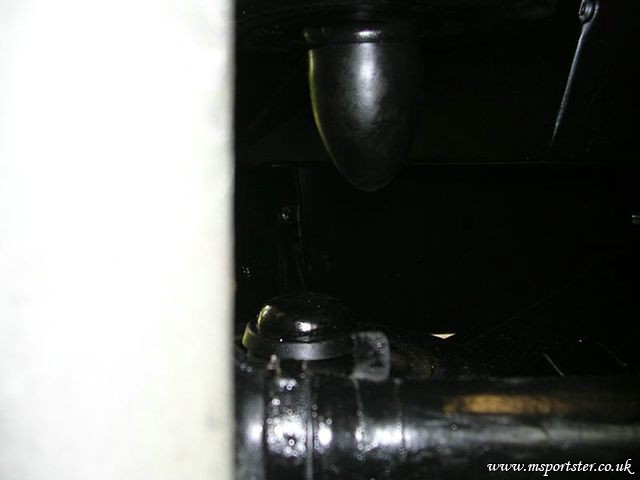

  They are quite far off, the bump stop misses completely
•
  Preview Image
  Full Size (0.96Mb)
  Rear top mounts. Bottom new E46 Cab part on the left, old worn out part on the right
•
  Preview Image
  Full Size (1.00Mb)
  Again new part with gasket on left, old on right. E30zone recommendation to get the E46 cabrio part over the standard E30
•
  Preview Image
  Full Size (0.65Mb)

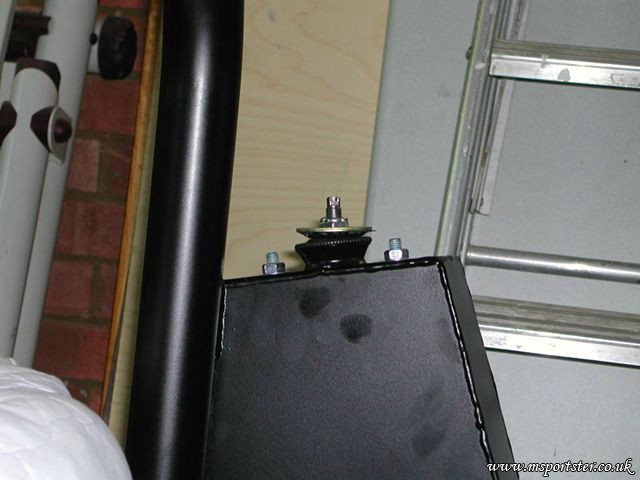

  Mounted
•
  Preview Image
  Full Size (0.47Mb)
  Close up
•
  Preview Image
  Full Size (0.66Mb)

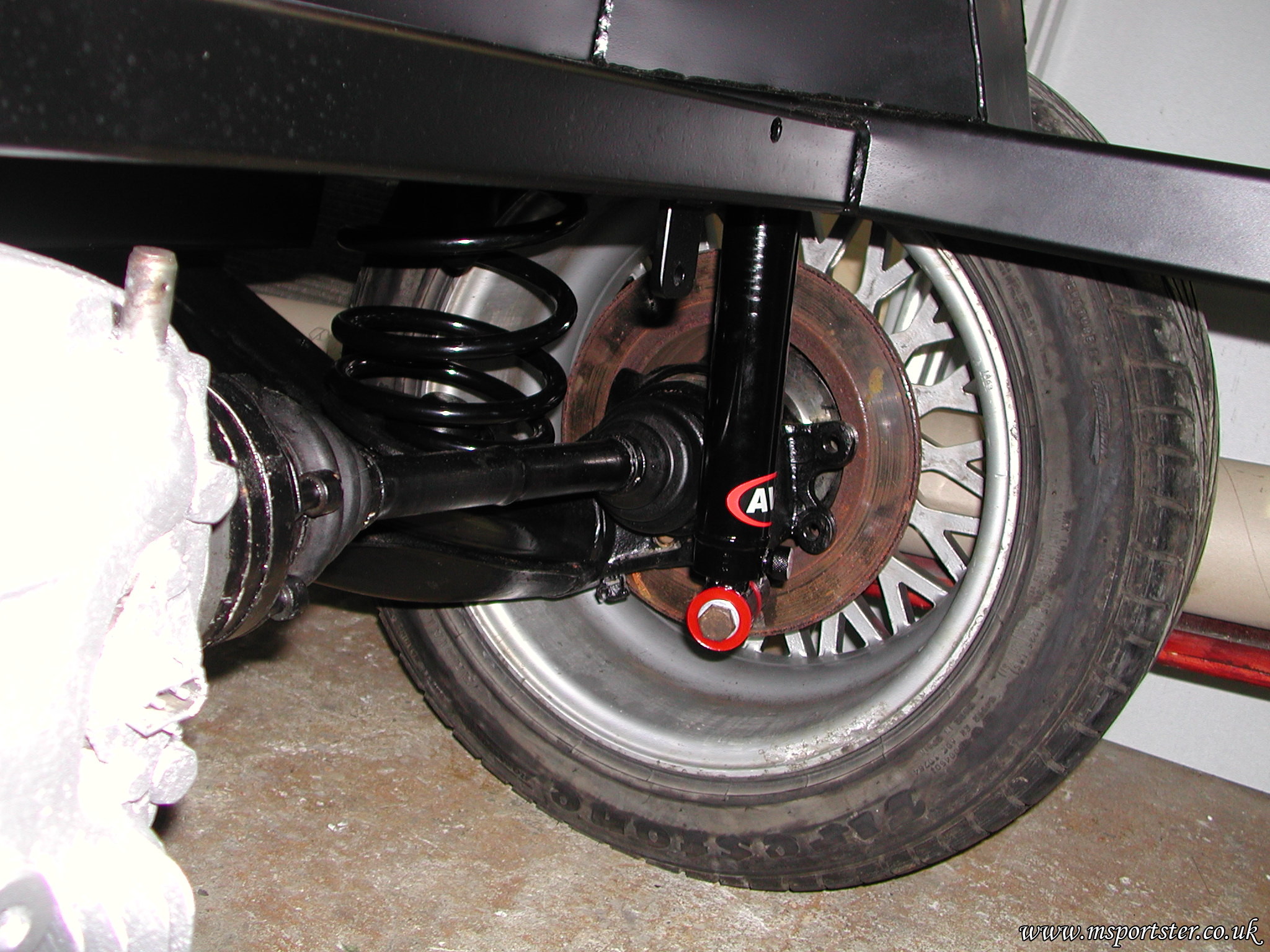

  Suspension test fitting. I think the AVO springs my be a bit too big. Will have to wait until the car is complete and run for the first time to confirm.
