Total Images in this section: 18

•
  Preview Image
  Full Size (0.47Mb)


  GSXR Throttle sat on top of the machined intake manifold

•
  Preview Image
  Full Size (0.48Mb)


  ITB's look cool :o)

•
  Preview Image
  Full Size (0.52Mb)

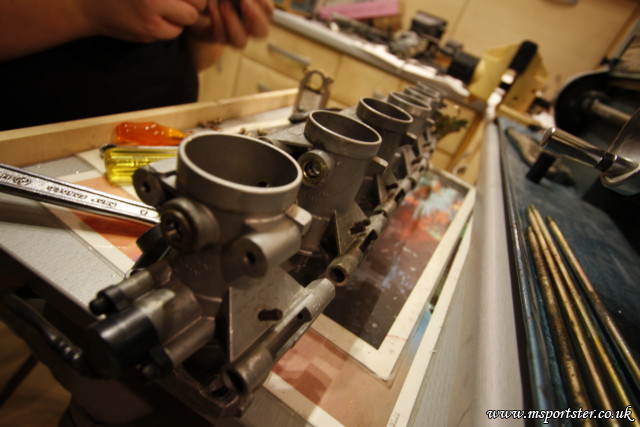

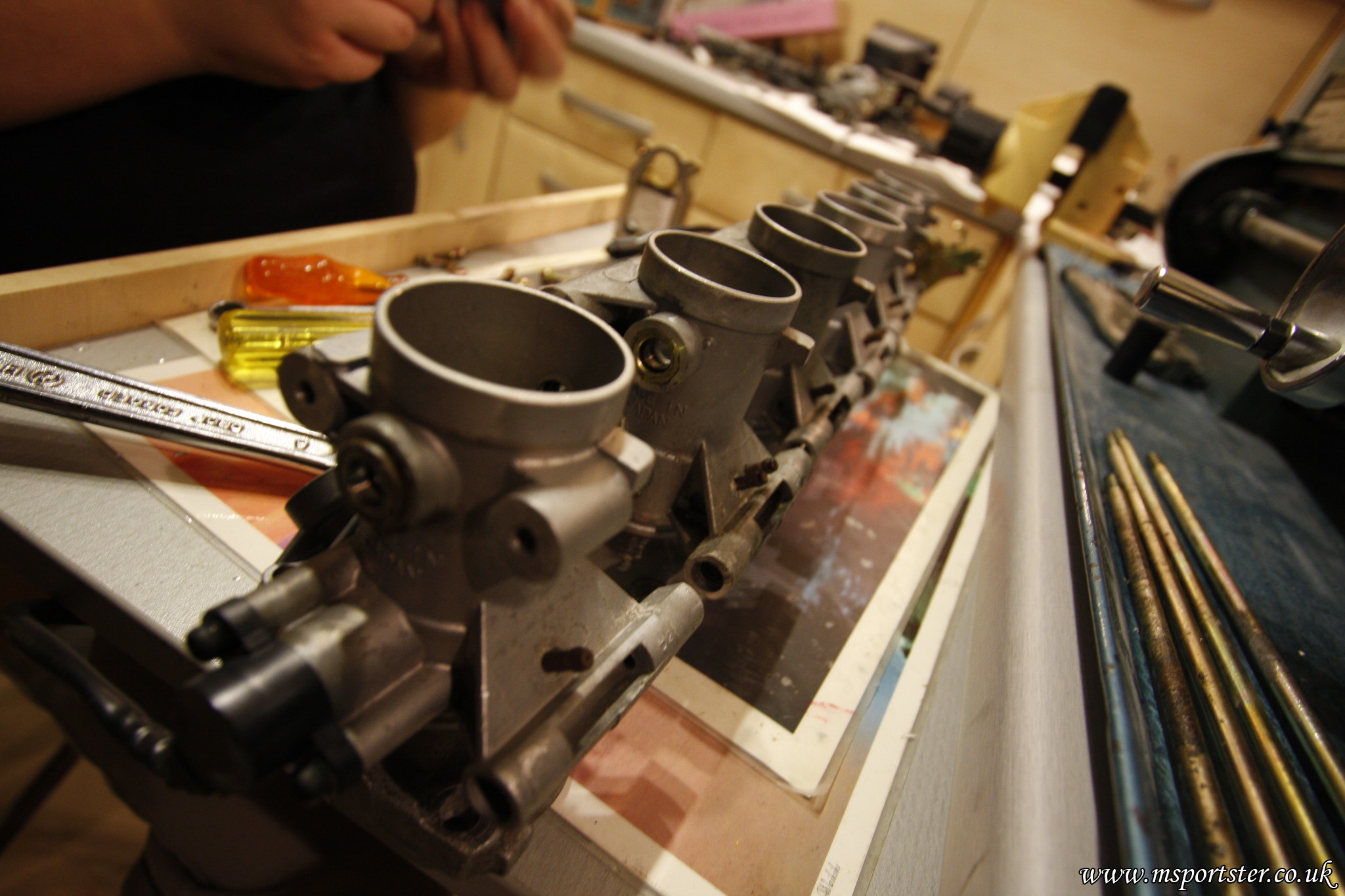

  6 ITB's from the GSXR spaced out next to the machined intake manifold.

•
  Preview Image
  Full Size (0.45Mb)


  Using the a bit of the stock manifold means the injectors sit in exactly the right place. The holes on the GSXR thottles will be plugged.

•
  Preview Image
  Full Size (0.47Mb)


  You can see the oil return is taken care of by using the stock manifold. The GSXR bodies will need spacers. Additionally tubes will need welding on to the manifold that the GSXR throttle will attached to by tube.

•
  Preview Image
  Full Size (0.03Mb)


  Suzuki GSXR 600 K3 throttle bodies x2

•
  Preview Image
  Full Size (0.04Mb)


  A spare M20B25 intake manifold to be attacked with an angle grinder and hack saw!

•
  Preview Image
  Full Size (0.69Mb)

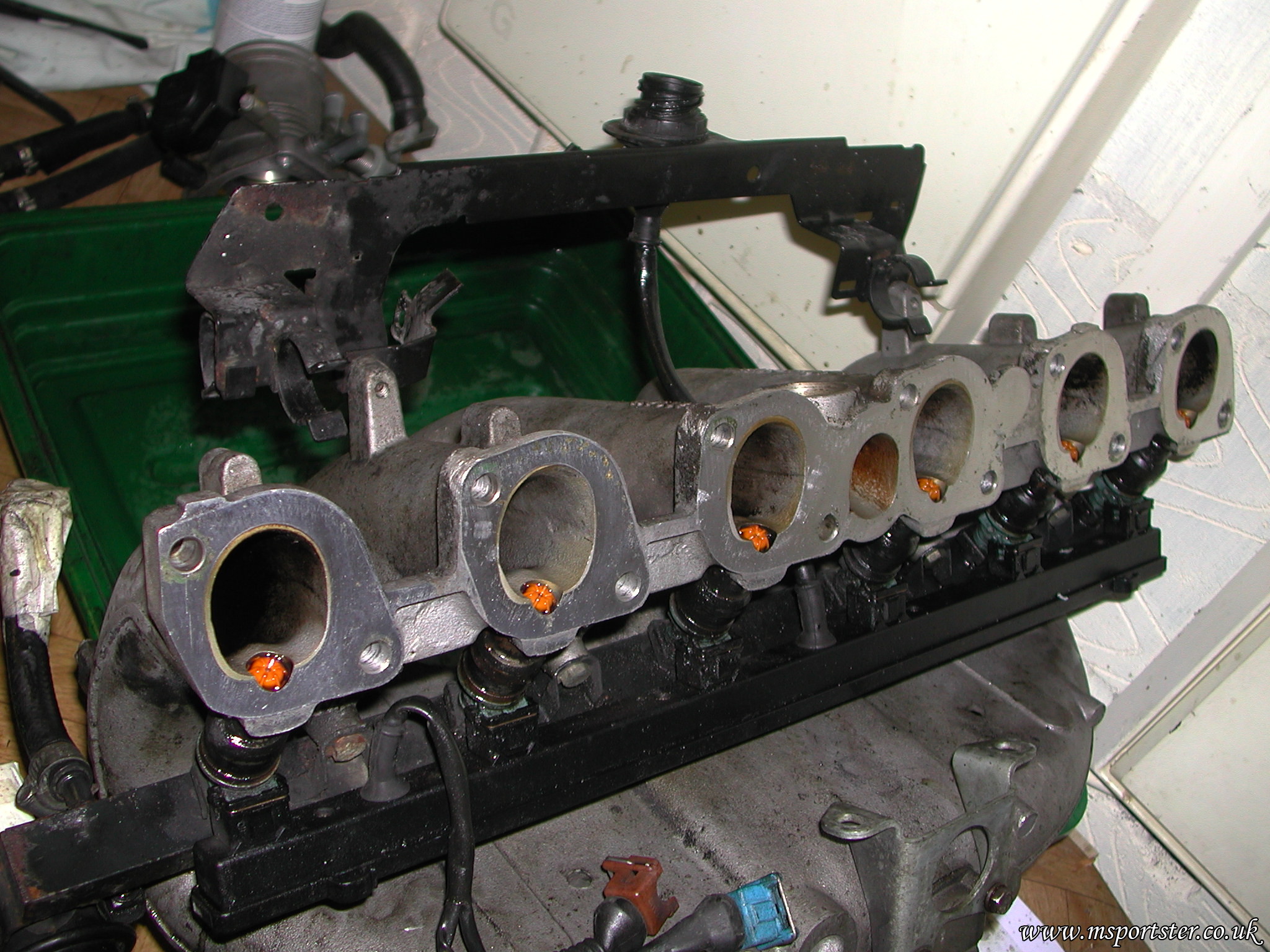

  This what the back of the stock manifold looks like

•
  Preview Image
  Full Size (0.35Mb)

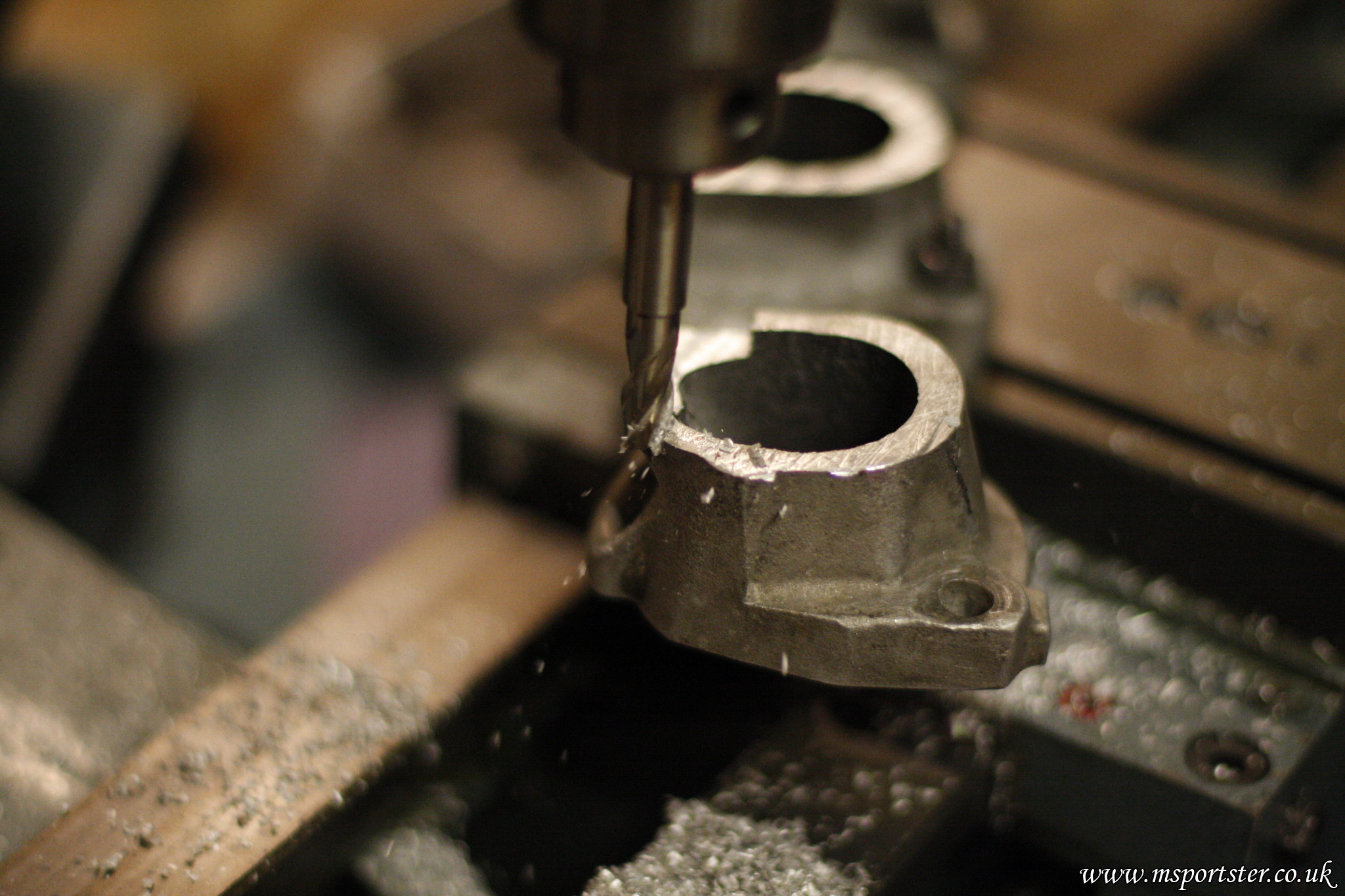

  Machining the M20 intake on the lathe using the piller drill and milling bit

•
  Preview Image
  Full Size (0.55Mb)


  Another shot on the lathe

•
  Preview Image
  Full Size (0.53Mb)


  Two sets of ITB's give you 4 bolts to screw them together - not long enough for 6 throttles. The solution is to chop the thread off two of them and the head off the other two. Then the 4 bits are welded together to create one long bolt.

•
  Preview Image
  Full Size (0.46Mb)


  After welding the join is ground down to make it round and smooth.
