Engine rebuild with capacity increase from 2.5 to 2.8 ltrs and a spiky cam from dbilas
Read the full story in the FAQ section here
Total Images in this section: 149
-
Preview Image
Full Size (0.57Mb)Cylinder head off the engine, still located in the Sportster - took longer than you might think getting all the bolts ons off!
-
Preview Image

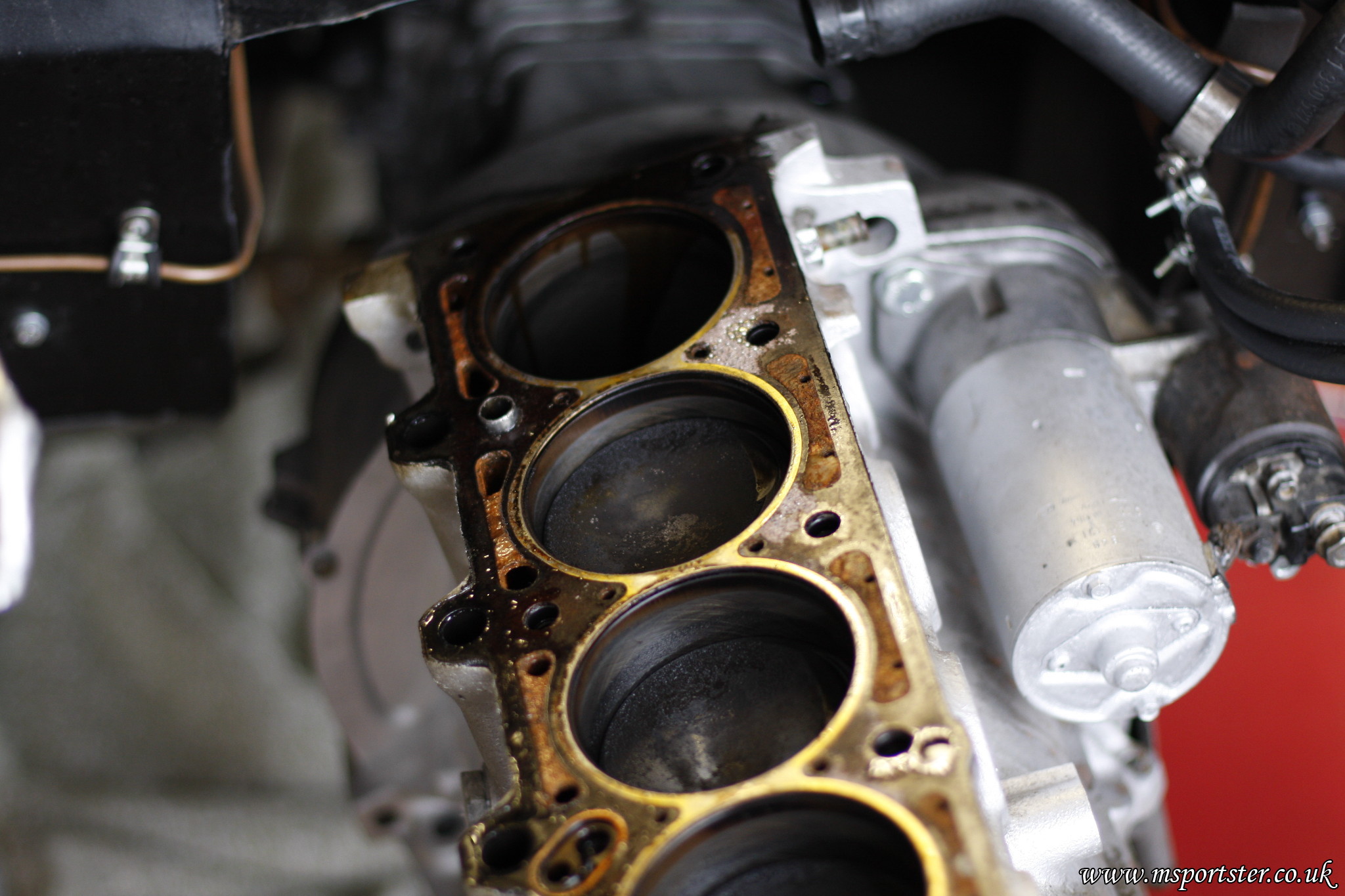

Full Size (0.85Mb)As suspected the block is in pretty good condition. The cylinders stil have the original honing marks and there don't seem to be any ridges.
-
Preview Image
Full Size (0.44Mb)The block still needs to come out as a new crank shaft & conrods are waiting to go in. A more detailed inspection will be possible once everything it out.
-
Preview Image

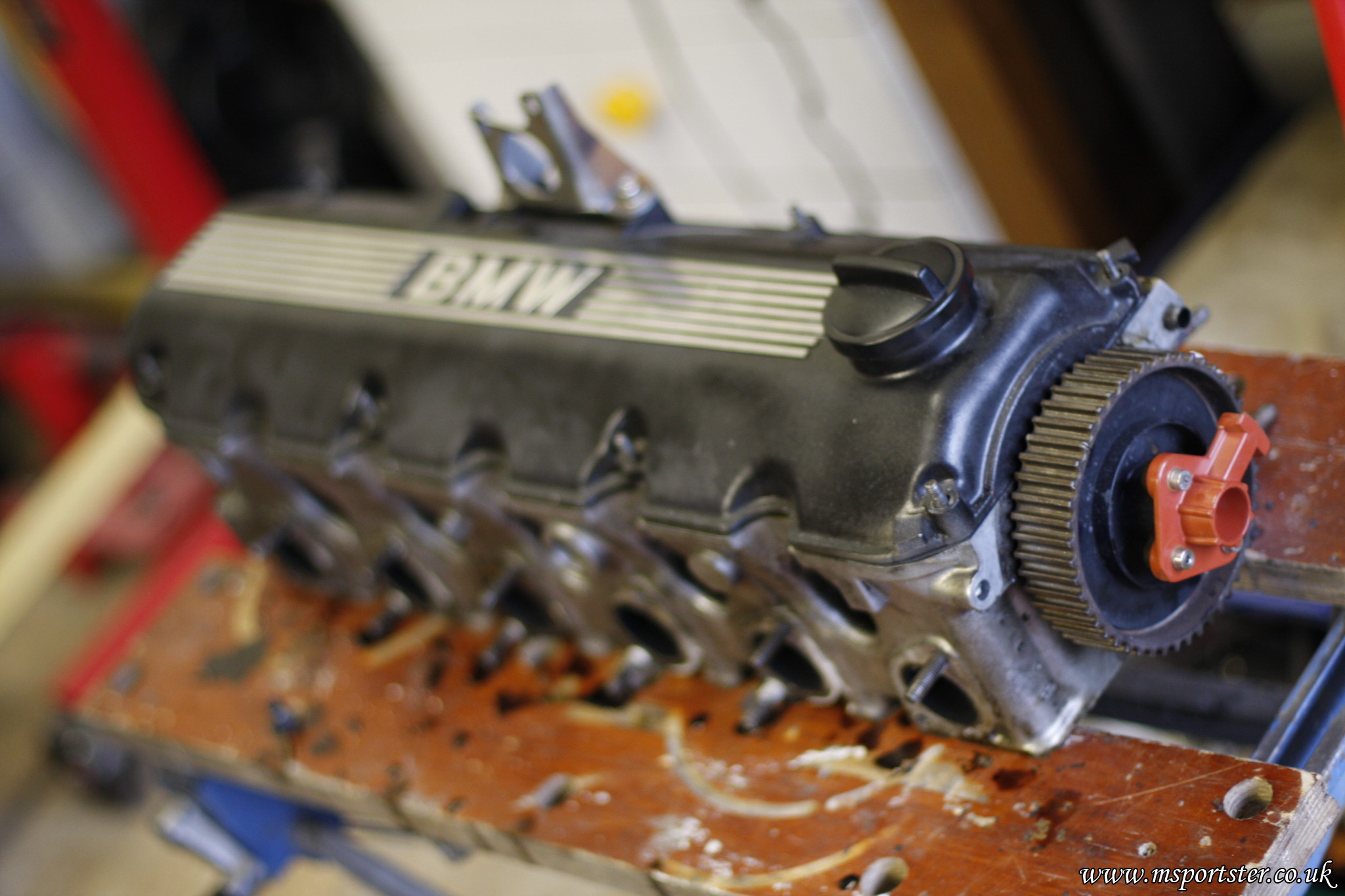

Full Size (0.42Mb)The head out and on the work mate
-
Preview Image

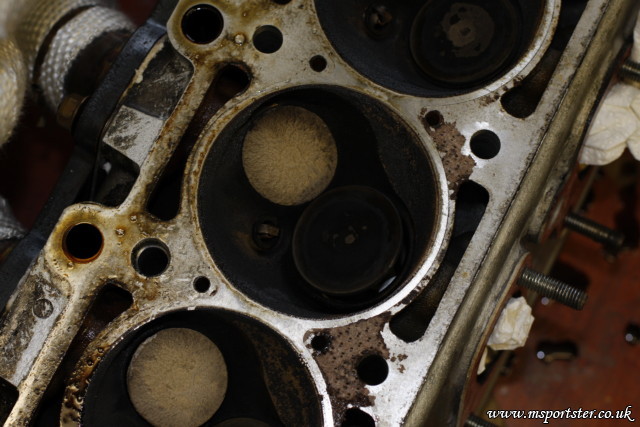

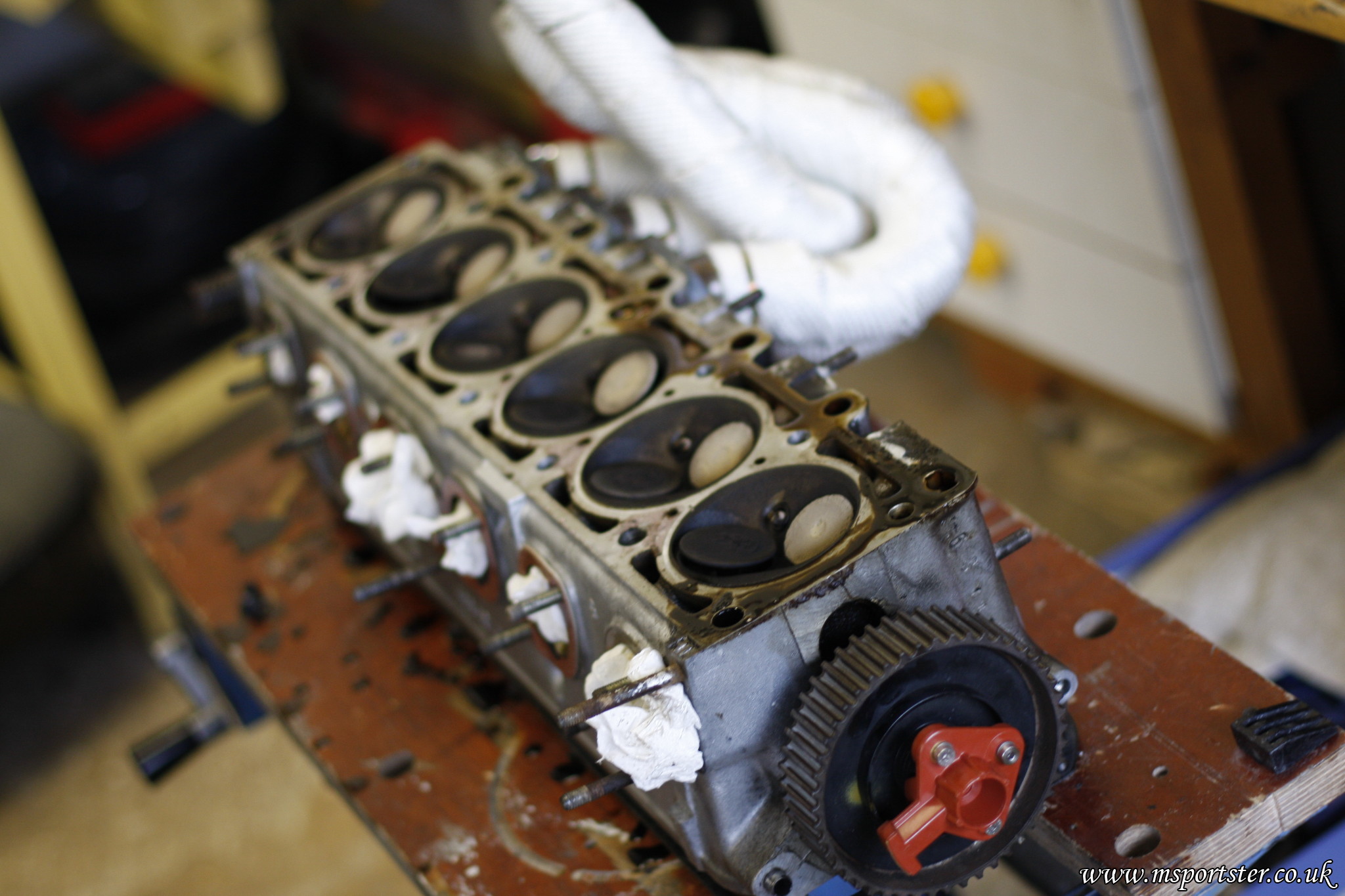

Full Size (0.45Mb)There's some carbon build up here, intake valves are pretty much clean, exhaust valves are a bit crusty.
-
Preview Image
Full Size (0.32Mb)-
-
Preview Image

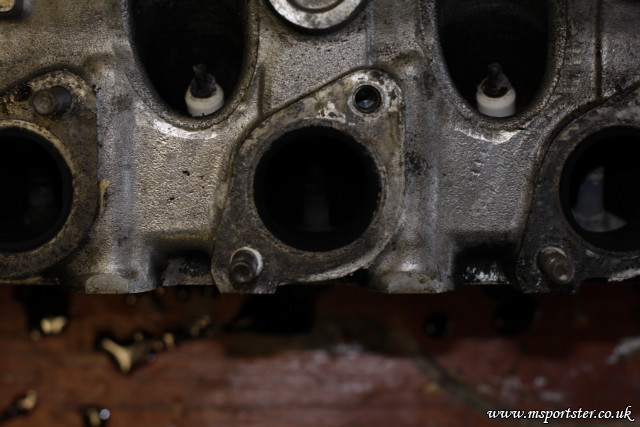

Full Size (0.64Mb)Valve condition
-
Preview Image
Full Size (0.62Mb)The head will need a good clean
-
Preview Image

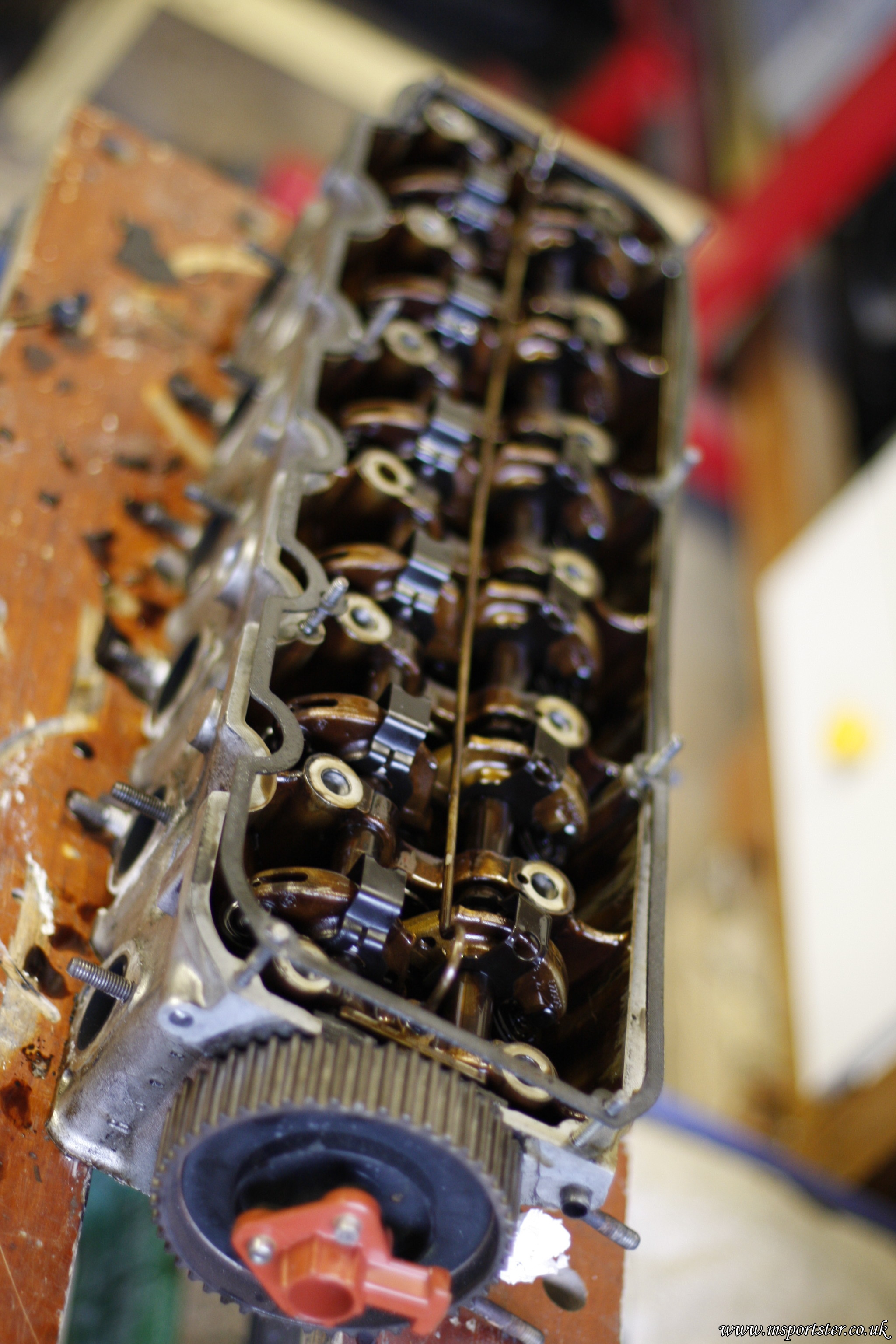

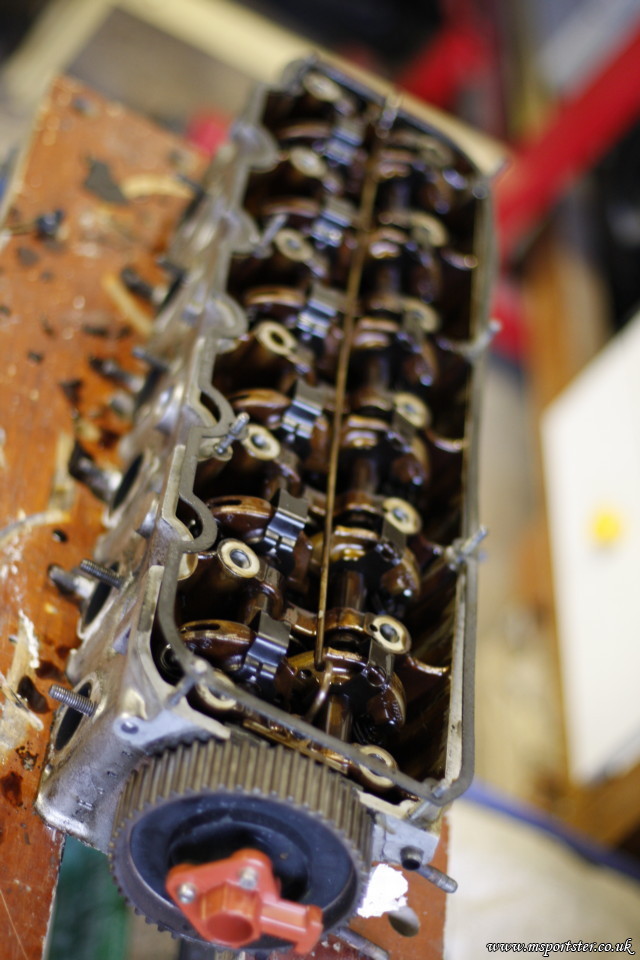

Full Size (0.97Mb)Head will all bits still in place
-
Preview Image
Full Size (0.43Mb)Its nice to have relatively clean engine to work with
-
Preview Image
Full Size (0.57Mb)

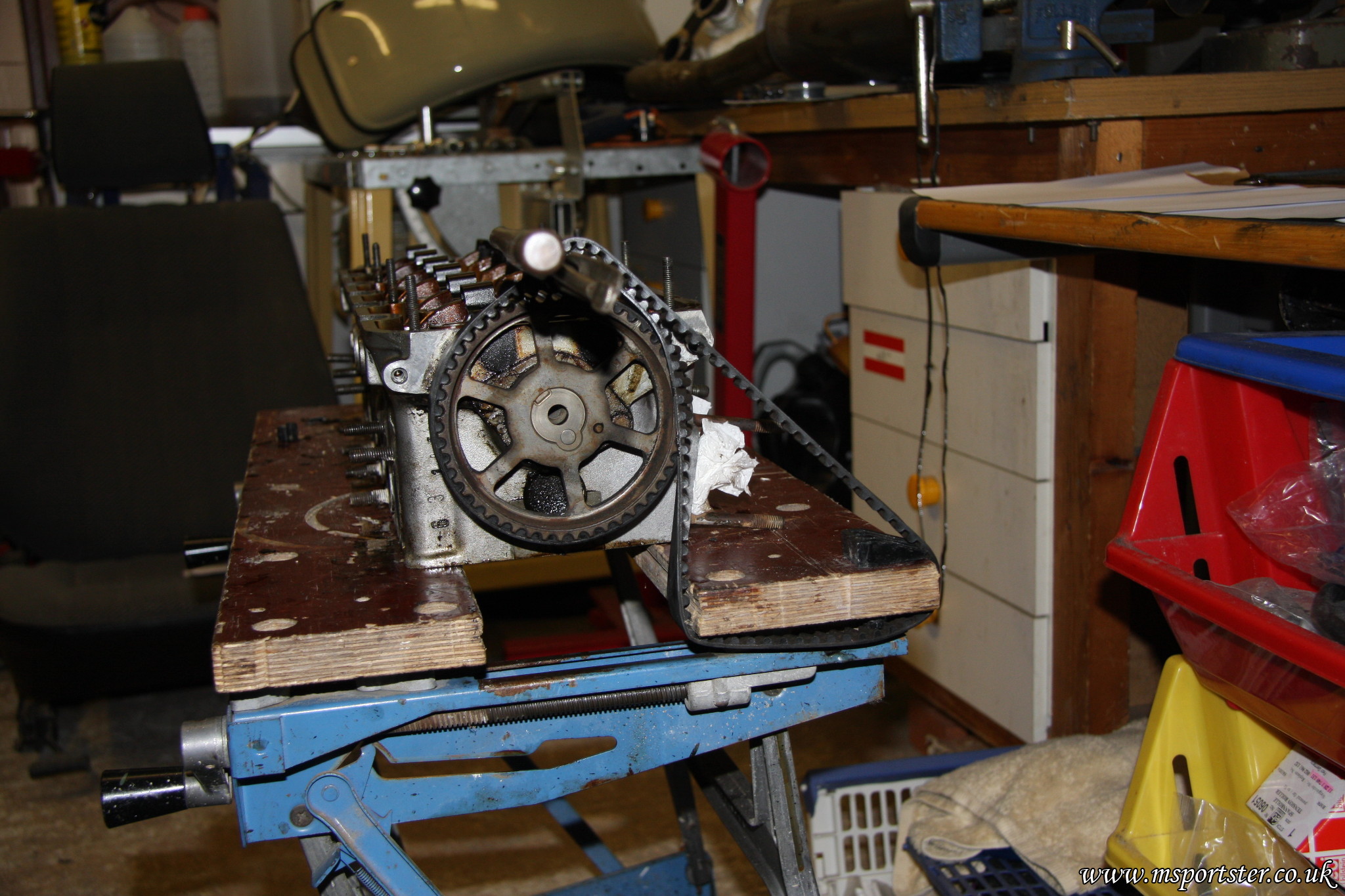

Nice tip for getting the bolt out the end of the cam shaft. Put the old timing belt around it, then loop the open end of the belt round the work mate. This locks it in place and allows the easy removal of the bolt!
-
Preview Image

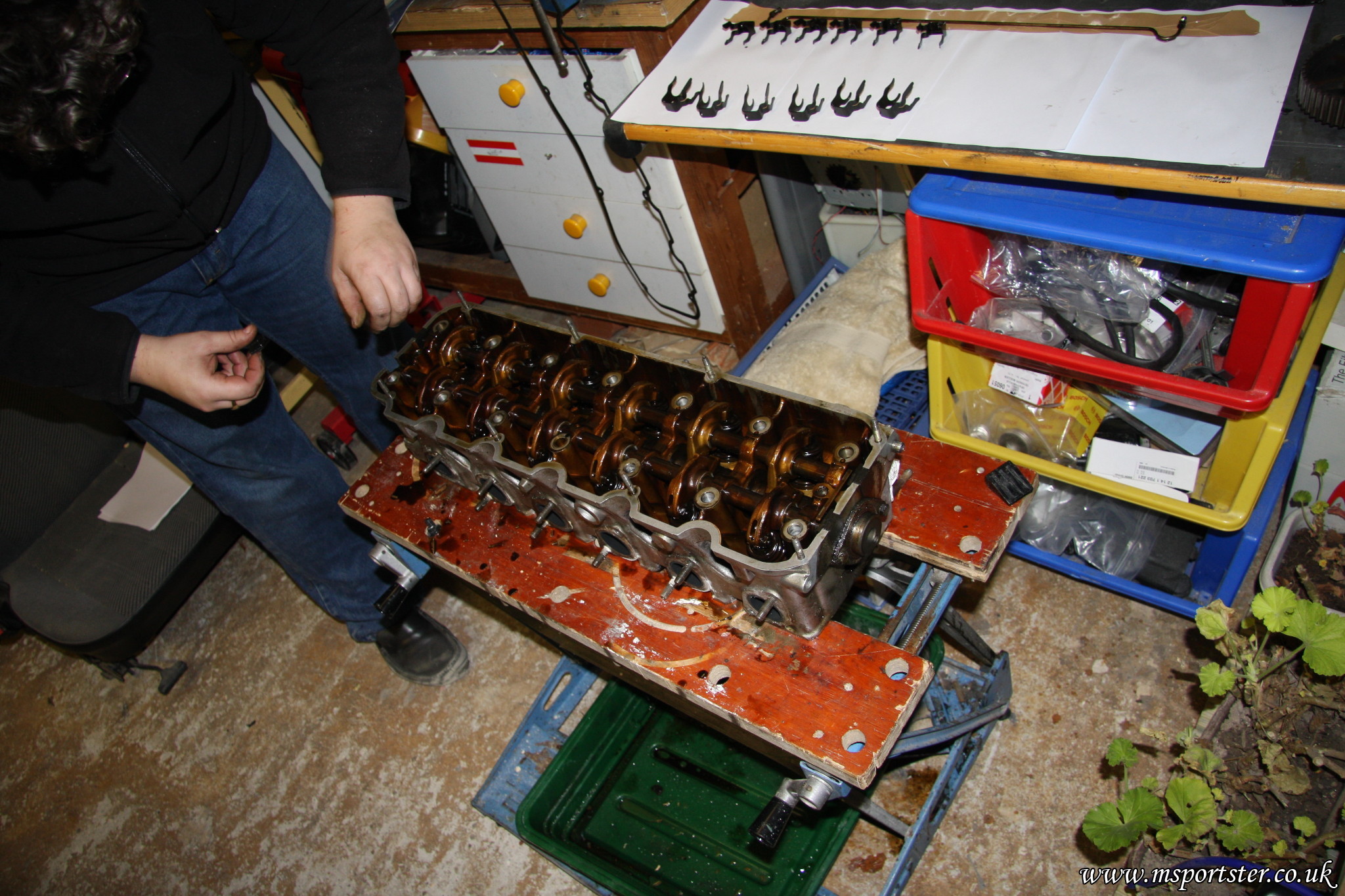

Full Size (0.69Mb)Spray bar and rocker retainers removed
