Pictures from the assembly of the bodywork

Bodywork fitting and adjustment

• Home
• Next
• Last

Total Images in this section: 240

•
  Preview Image
  Full Size (0.70Mb)
  Fitting of 235/45/R17 8Jx17 wheel from an 8 series - ET fits 5,7 and 8

•
  Preview Image
  Full Size (0.64Mb)
  Stock E30 wheel 205/55/R15 on 7Jx15 no spacers - bit tight on the bodywork

•
  Preview Image
  Full Size (0.58Mb)
  Loads of room for the wheel!

•
  Preview Image
  Full Size (0.29Mb)

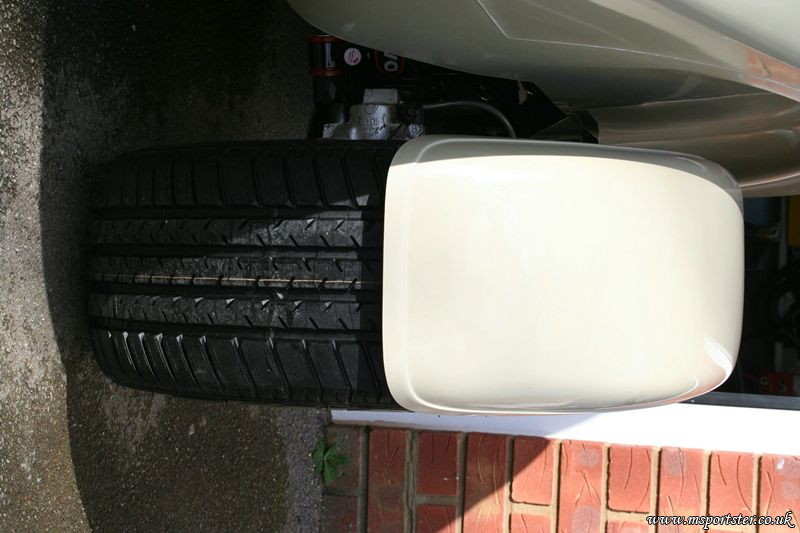

  But the arch is not wide enough to fit wheel in!!!

•
  Preview Image
  Full Size (0.47Mb)

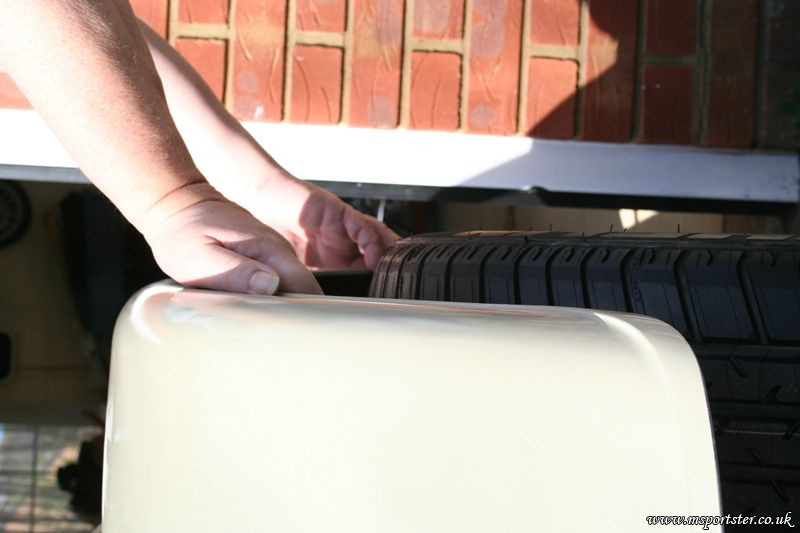

  Its really not going to work!

•
  Preview Image
  Full Size (0.45Mb)
  Would be fine on the front though!

•
  Preview Image
  Full Size (0.69Mb)
  From the side

•
  Preview Image
  Full Size (0.38Mb)

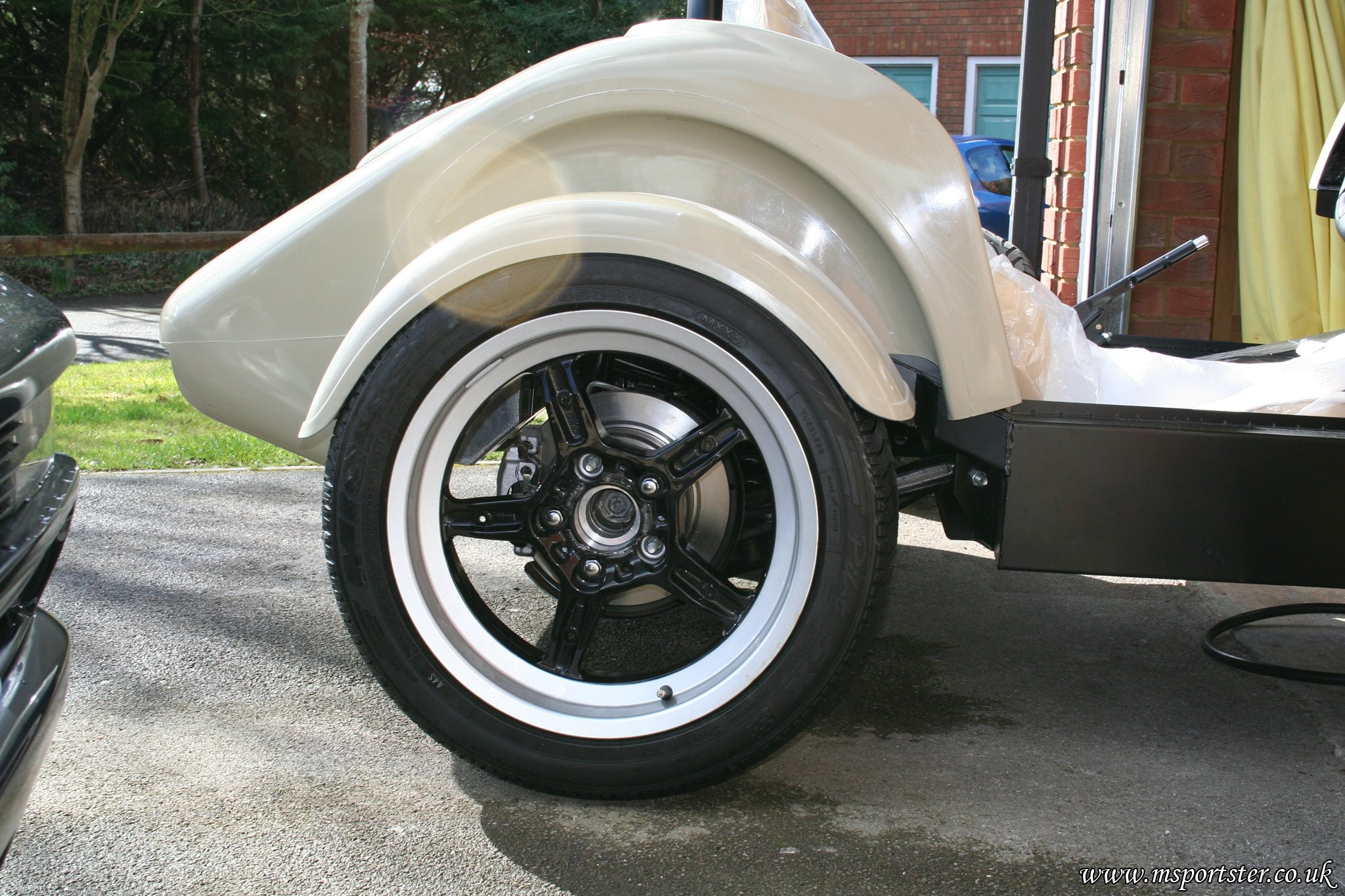

  Plan B E36/E46/E90 3 series wheels - 225/45/R17 on 8Jx17 - much better ! But how would i fit say a 8.5 or 9J rim with 245 or 255 wide tyre?

•
  Preview Image
  Full Size (0.69Mb)
  E36/E46/E90 wheel from the side

•
  Preview Image
  Full Size (0.47Mb)
  It looks fine spacing wise.

•
  Preview Image
  Full Size (0.19Mb)
  Door - Left side catch hole cut. Needed to make the cut out for the latch about 1 cm higher than marked on the door so that it would actually unlatch.

•
  Preview Image
  Full Size (0.21Mb)
  Round hole cut out on the left door
