Clutch bracket mk3

3rd design set for the clutch bracket. As we ran out of ColorFabb HT filament it gave me a few more days to consider the design so I’ve revised some angles:

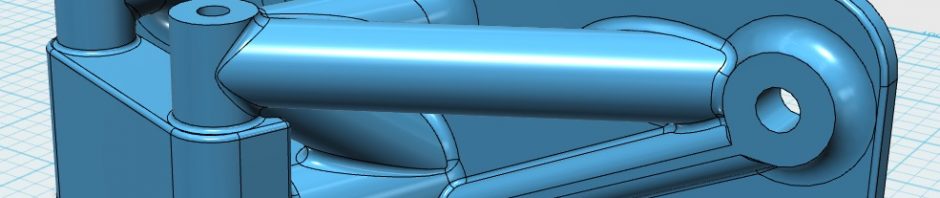

clutch-bracket-v9-1

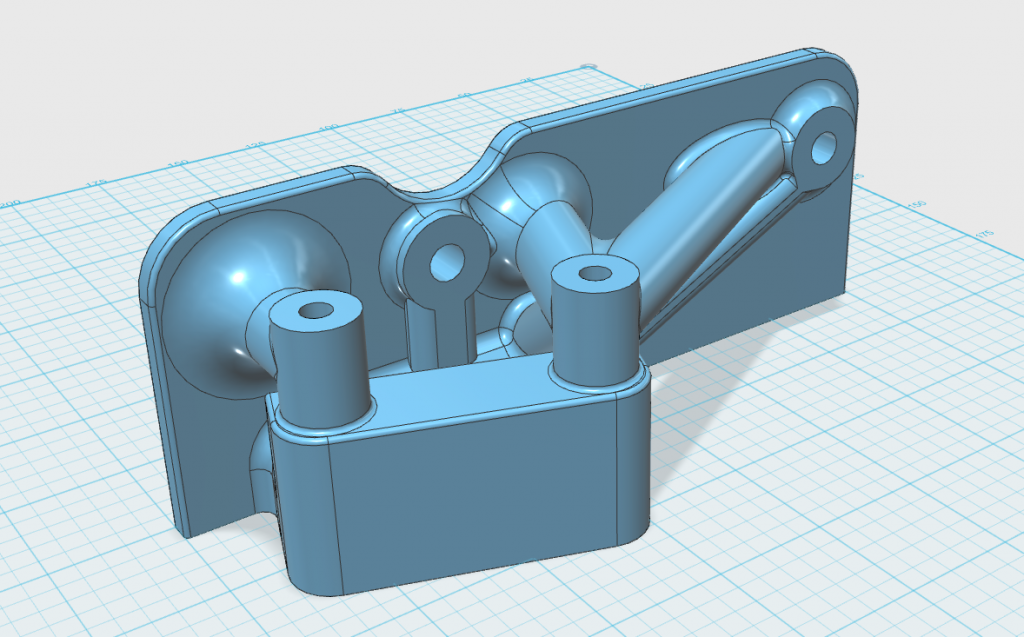

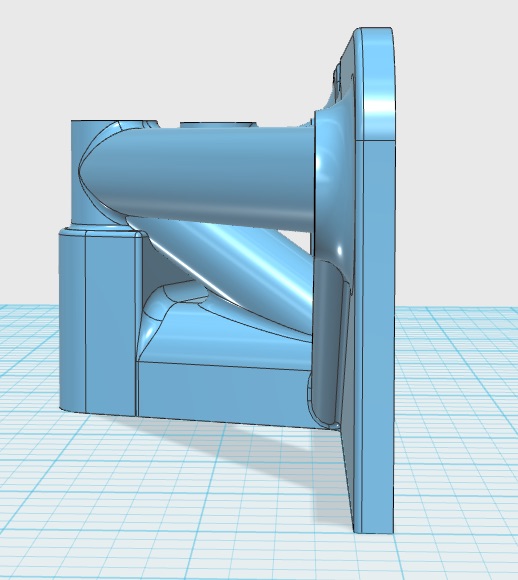

clutch-bracket-v9-2clutch-bracket-v9-3

Mid print:

img_4650

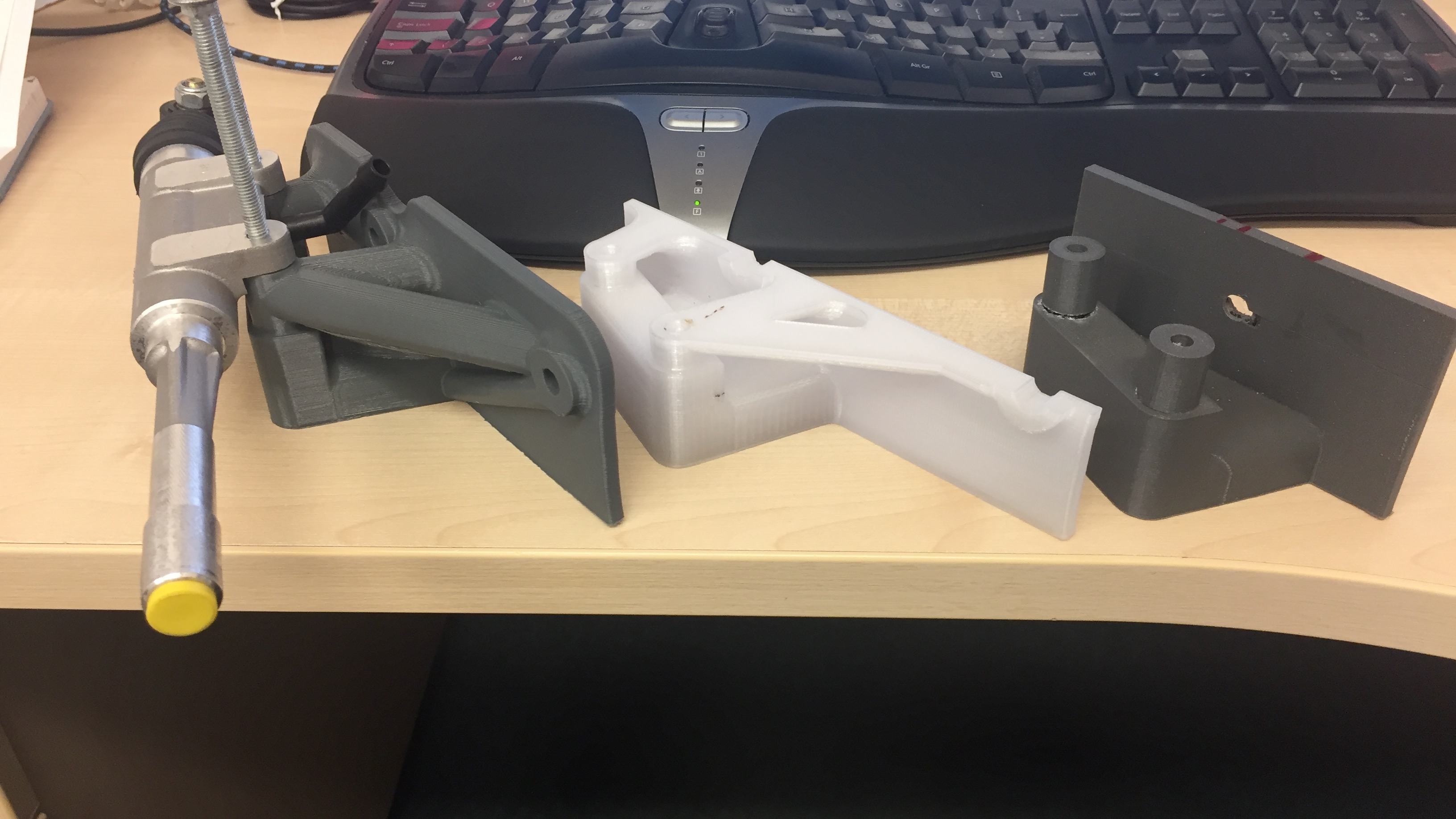

All 3 versions, note the middle one didnt finish printing:

img_4653

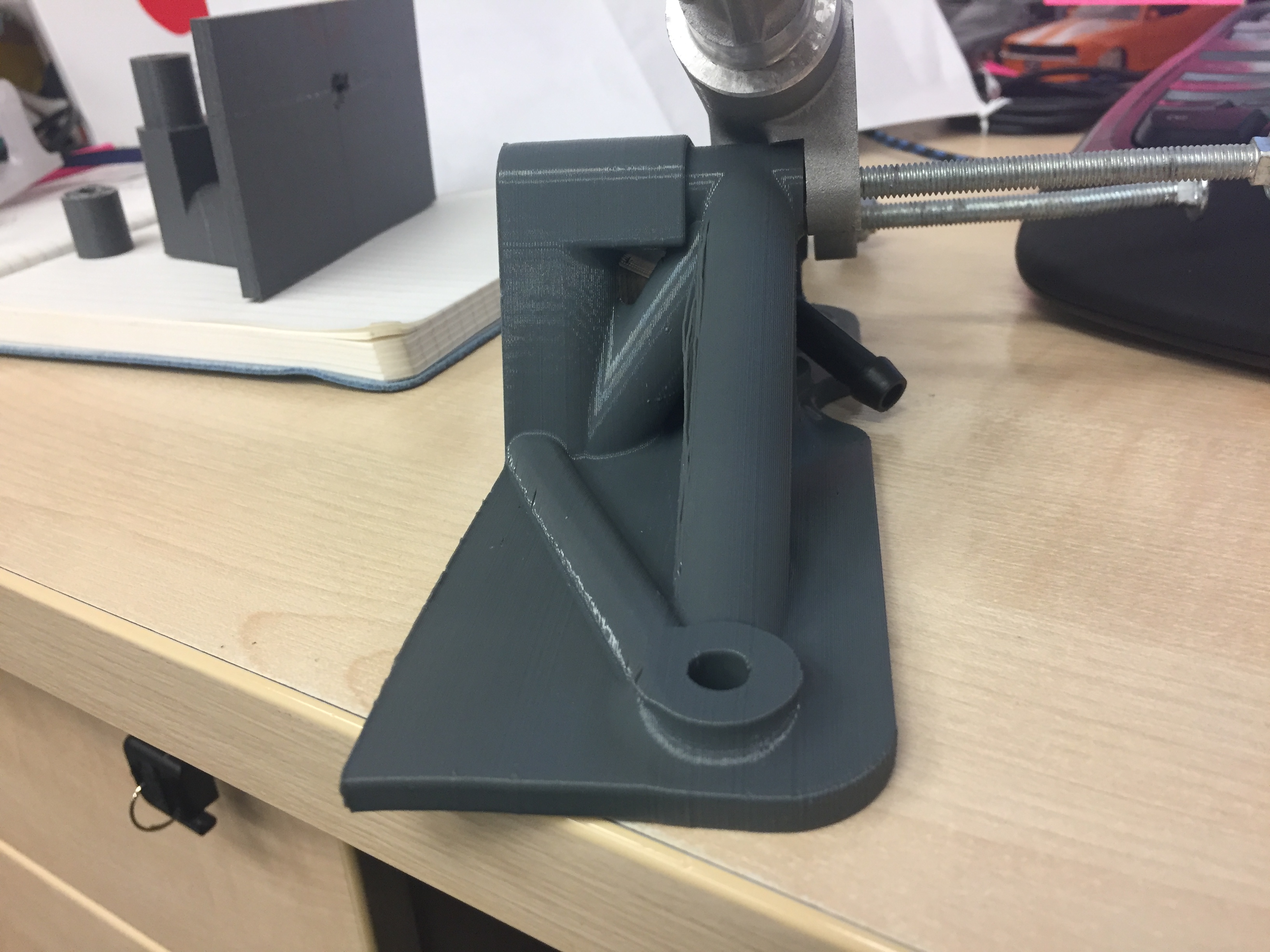

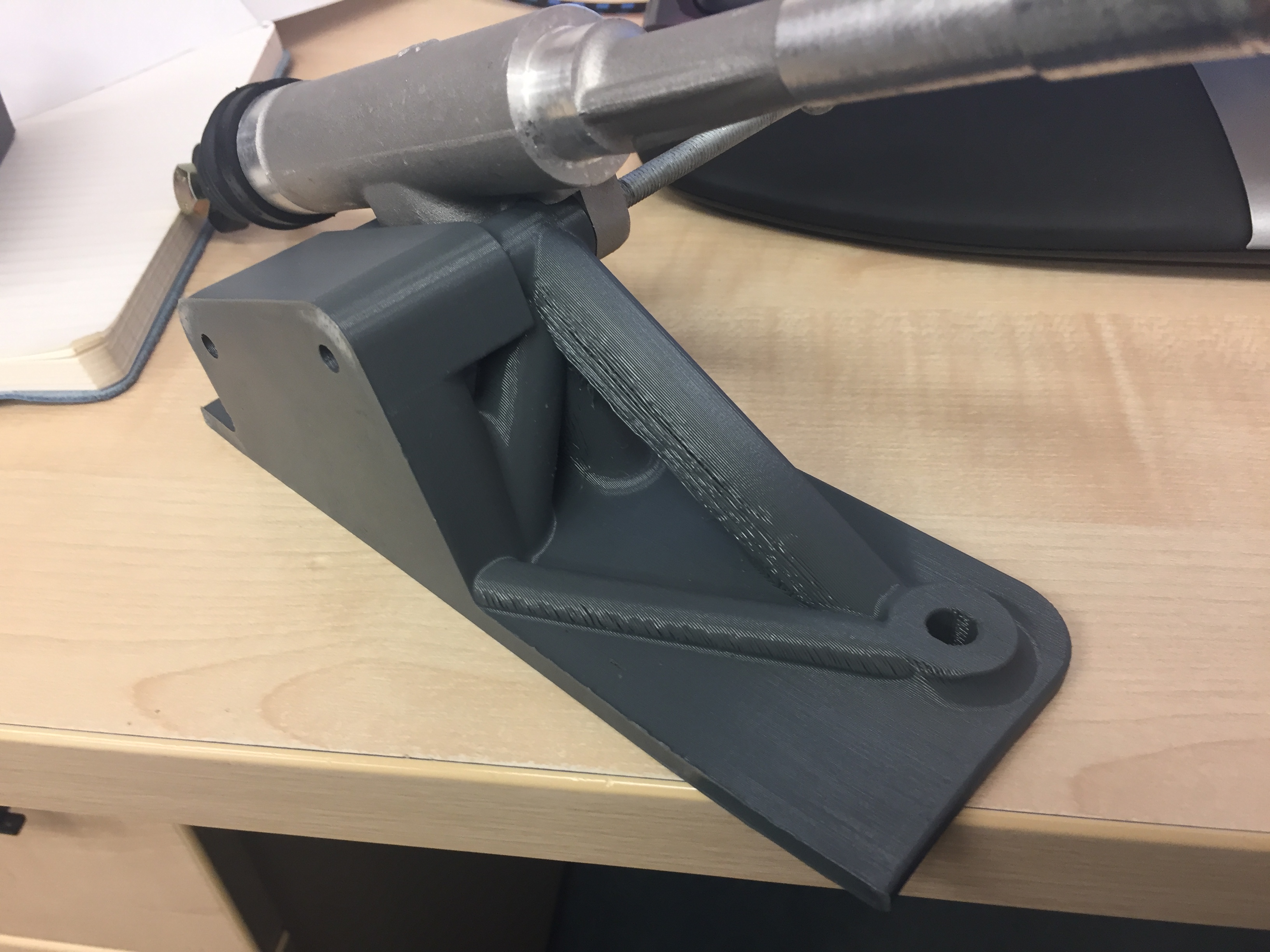

Extra support structures

img_4655

img_4656

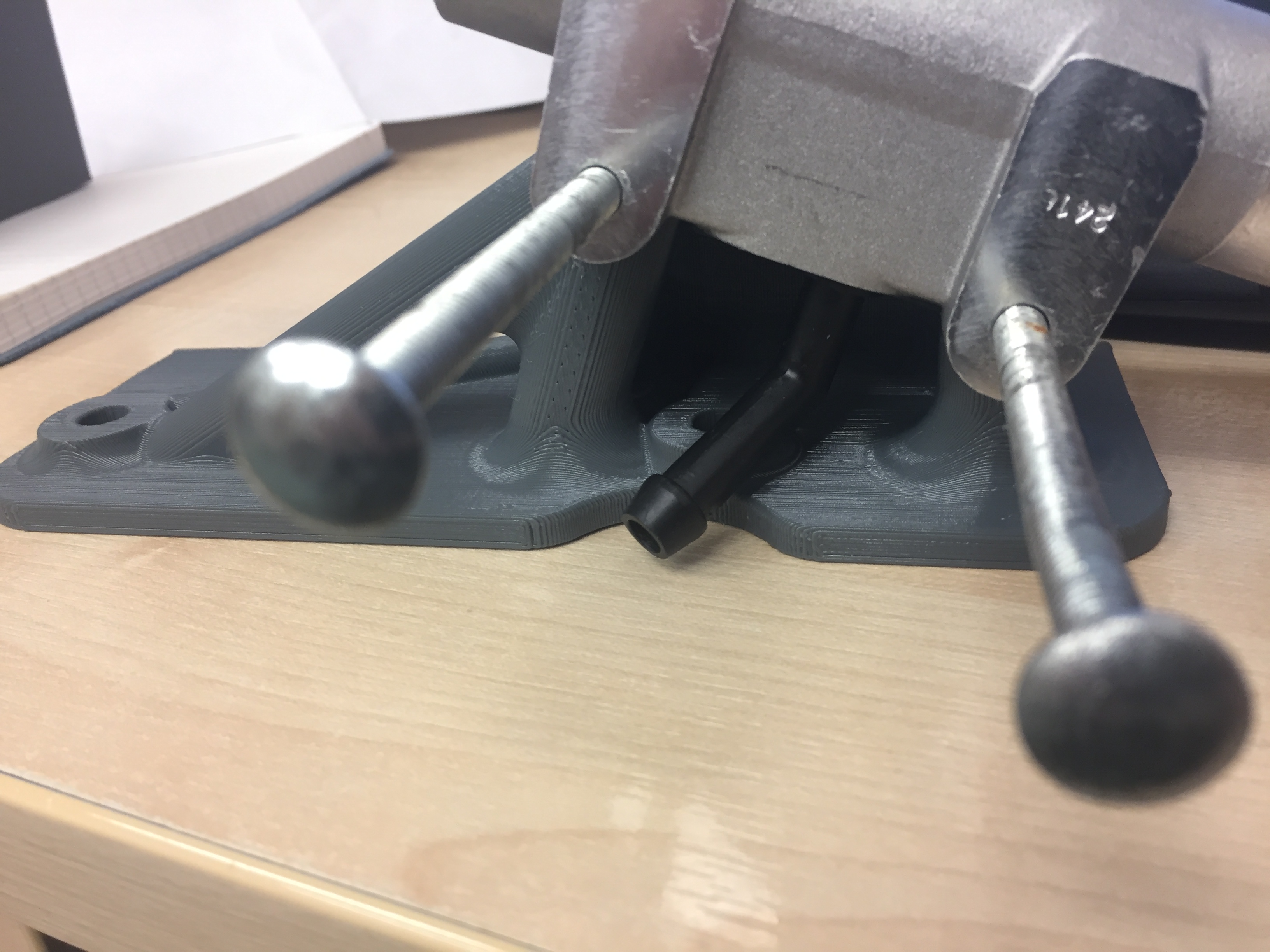

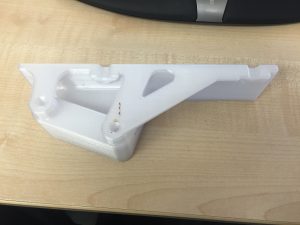

Clearance for the fluid fill. You can see the layers don’t look very smooth – that’s by design as it makes the print stronger by having thicker layers. For a display piece we’d print with much finer layers that which would look a lot smoother. As this is a functional piece you can’t see it doesn’t matter.

img_4657

Watch the print!
