More 3D test prints

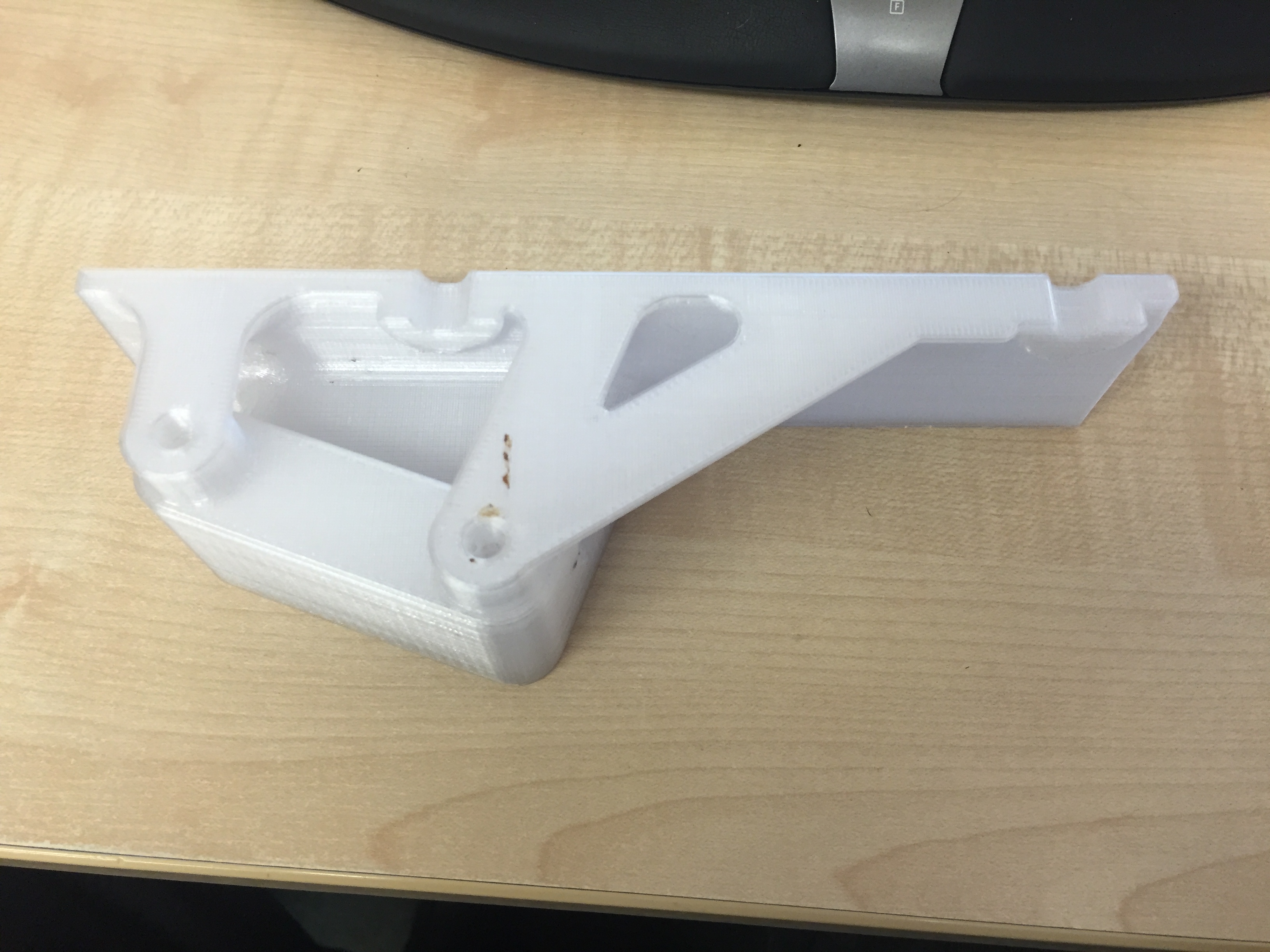

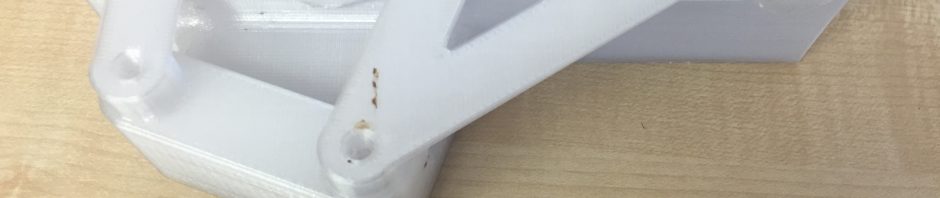

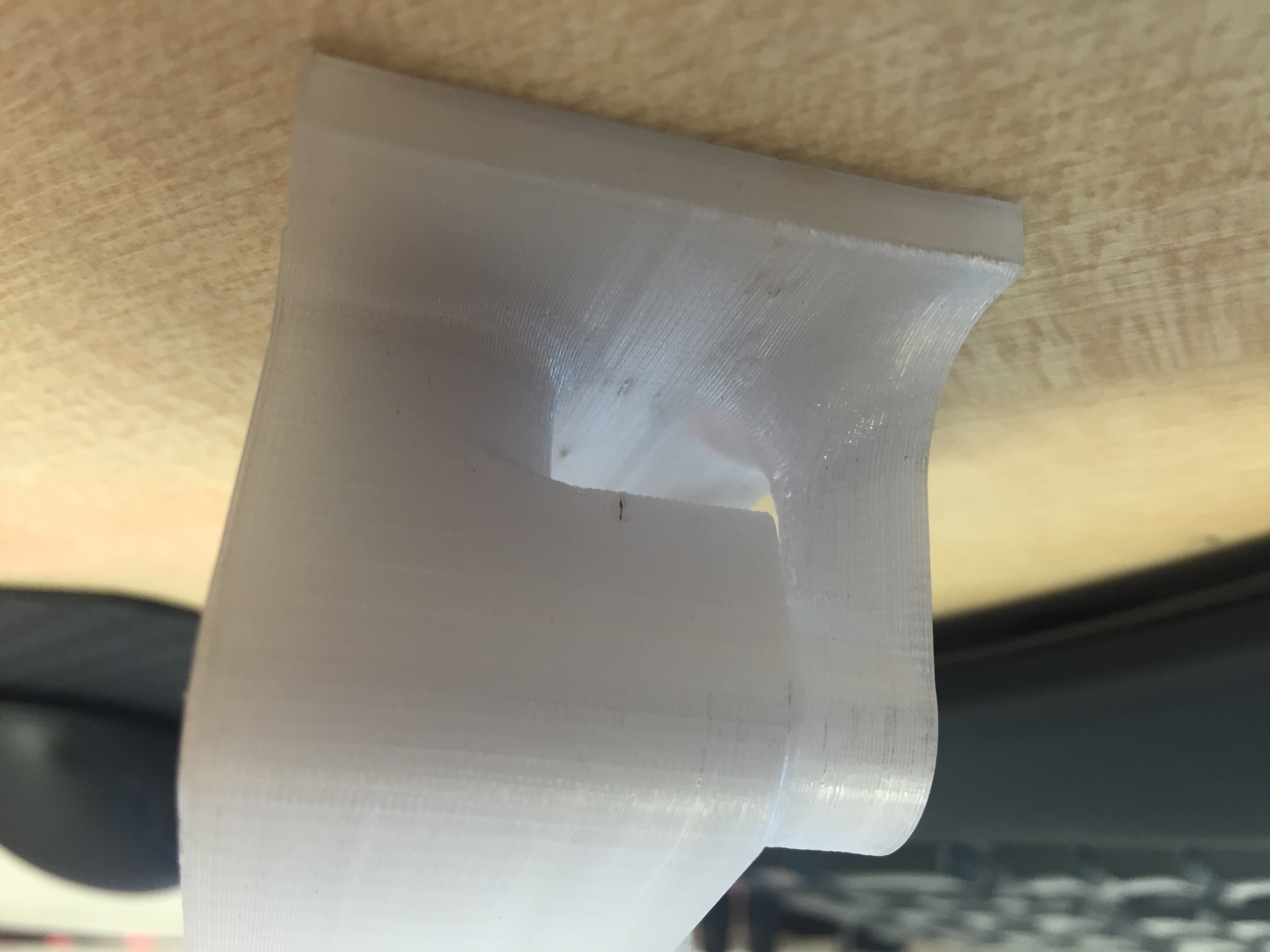

Ran out of ColorFabb HT with a bit to go on the print unfortunately, however this is a great strength test piece. It’s very strong already with 2/3 of the triangulation structure missing. This part will work in the car, no need to remake in metal.

I may make a few more design tweaks before starting another print. More material is due at the end of the week.

Mike on mad about kit cars brought up a point about pedal / master cylinder angle. The standard placement moves the piston in at an angle which can cause failure – I’m going to check this on the car make sure the master cylinder won’t get damaged.
