3D Printed prototype clutch bracket test fit

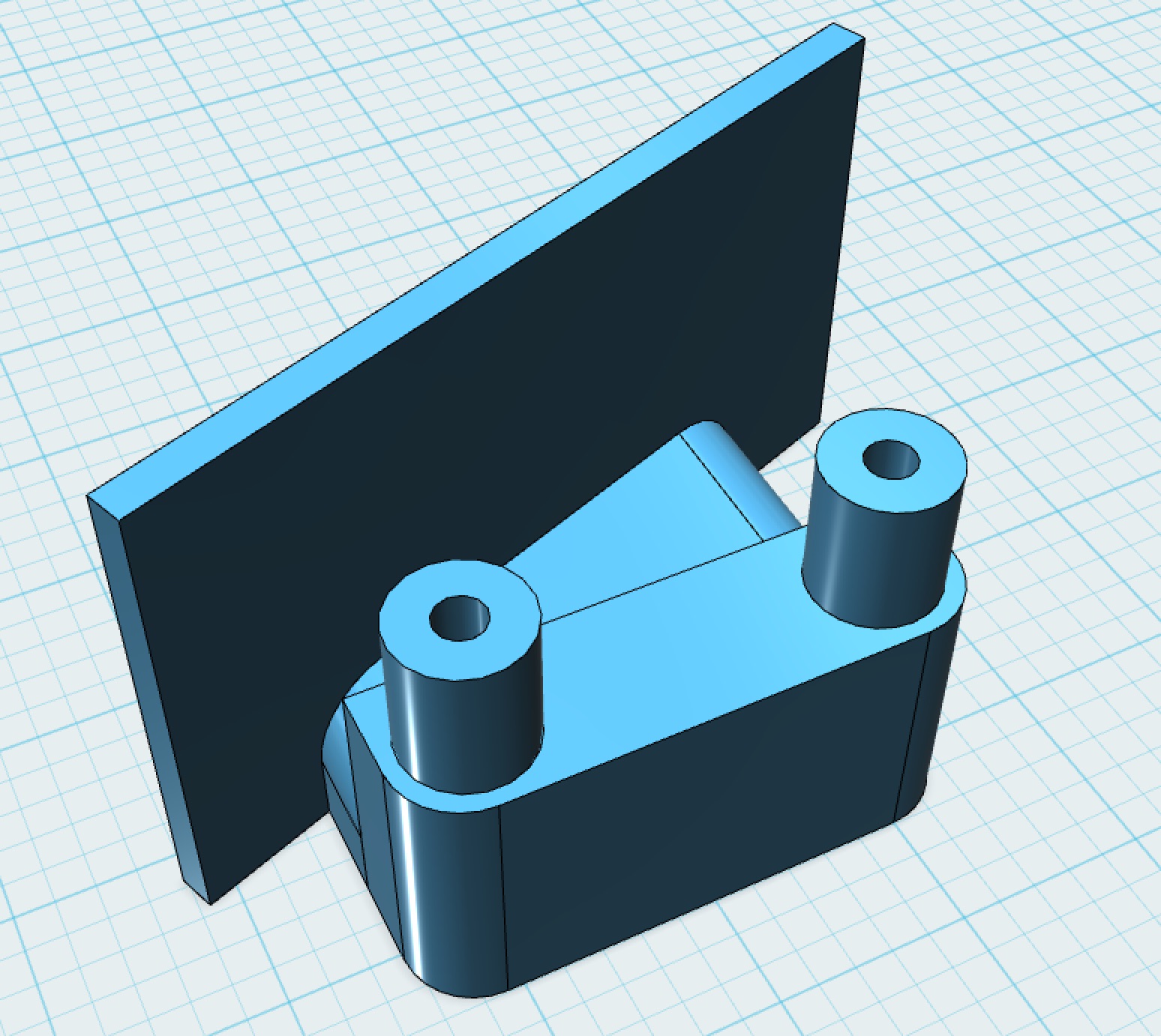

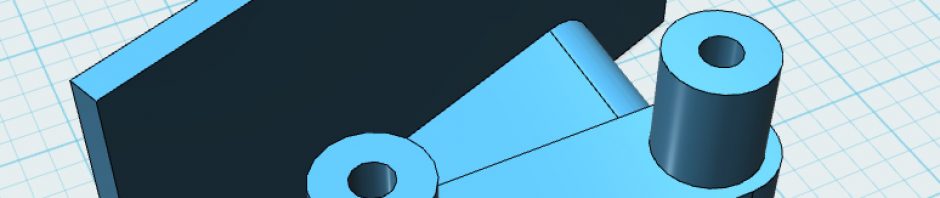

3D model of the clutch bracket prototype made with Autodesk 123D

clutch bracket

Printing the object on an Ultimaker 2+

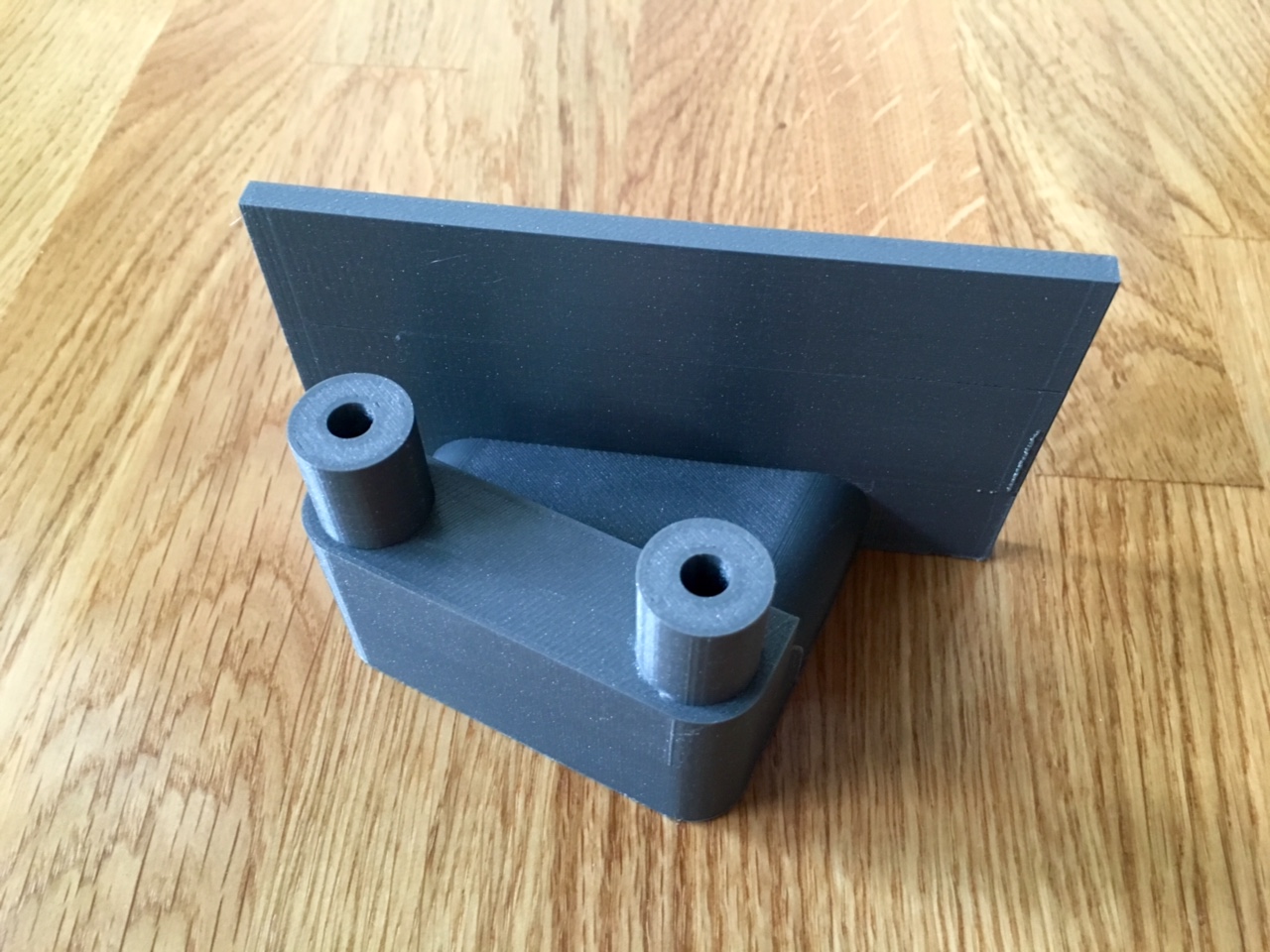

The 3D printed object, which is incredibly accurate:

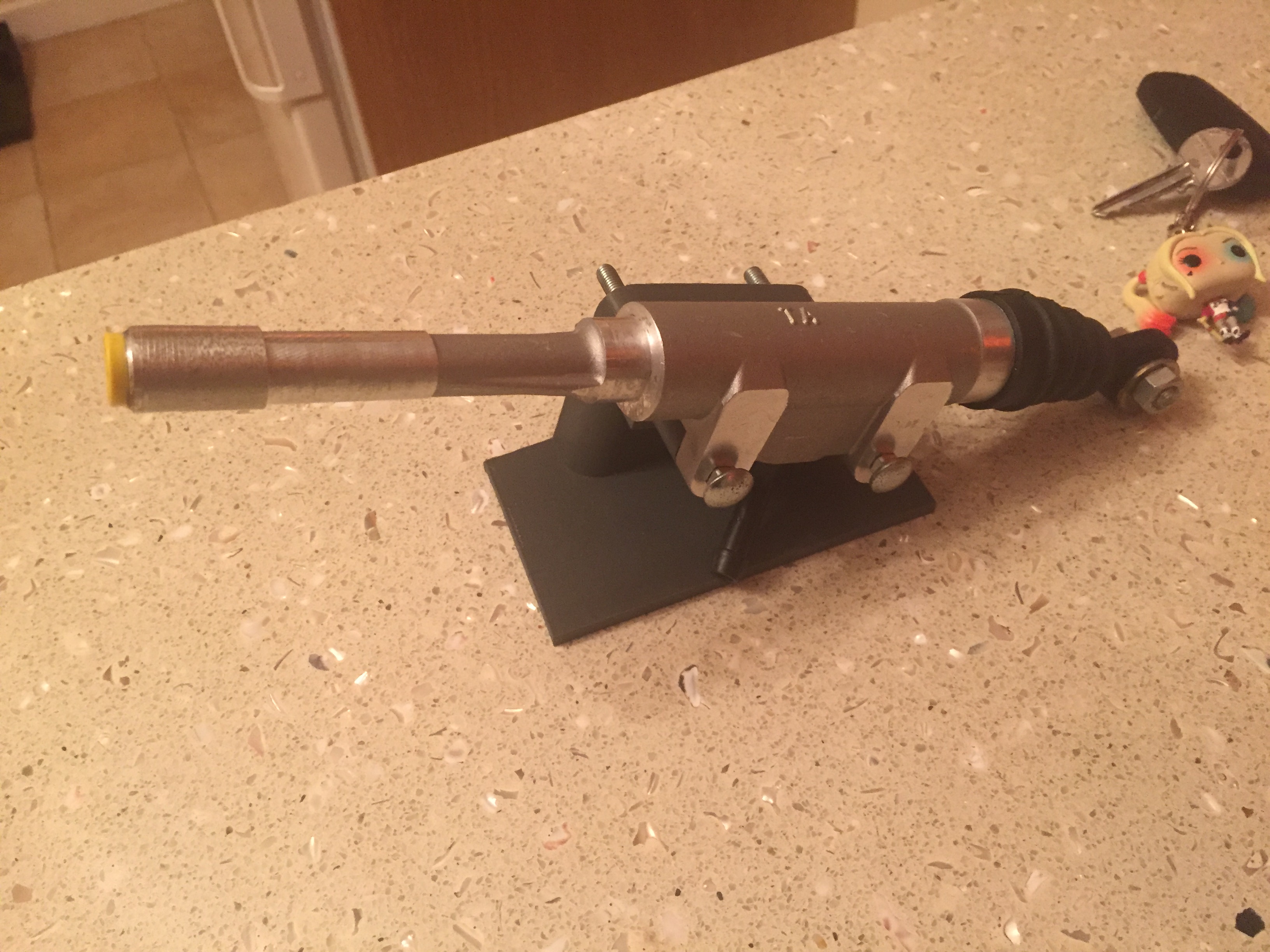

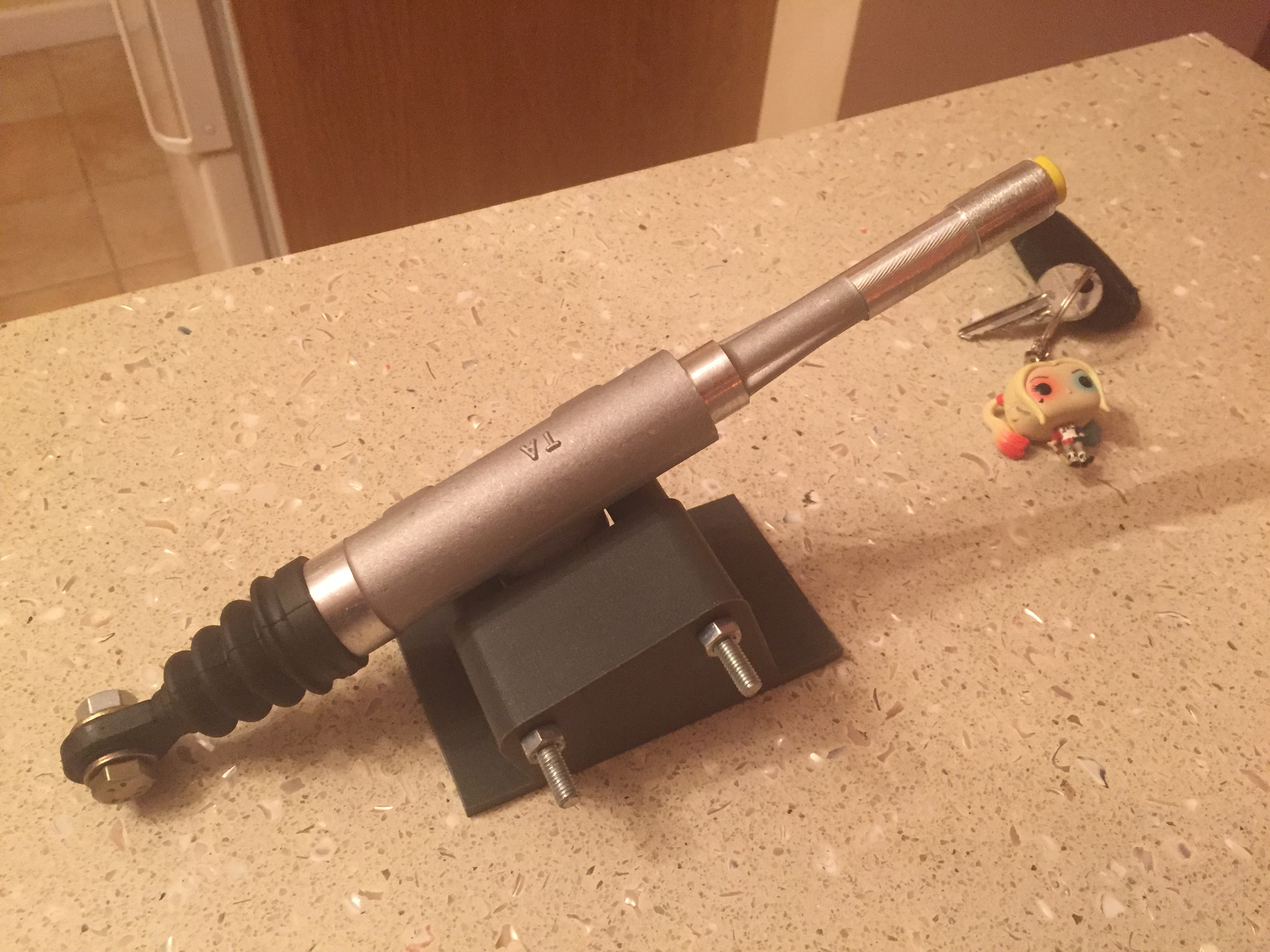

Clutch master fits on the 3D prototype print without any adjustments needed. The design needs a bit more clearance for the fluid feed pipe and it needs to be extended forward to make use of my second scuttle mount hole. I can probably add more re-enforcement where there is room.

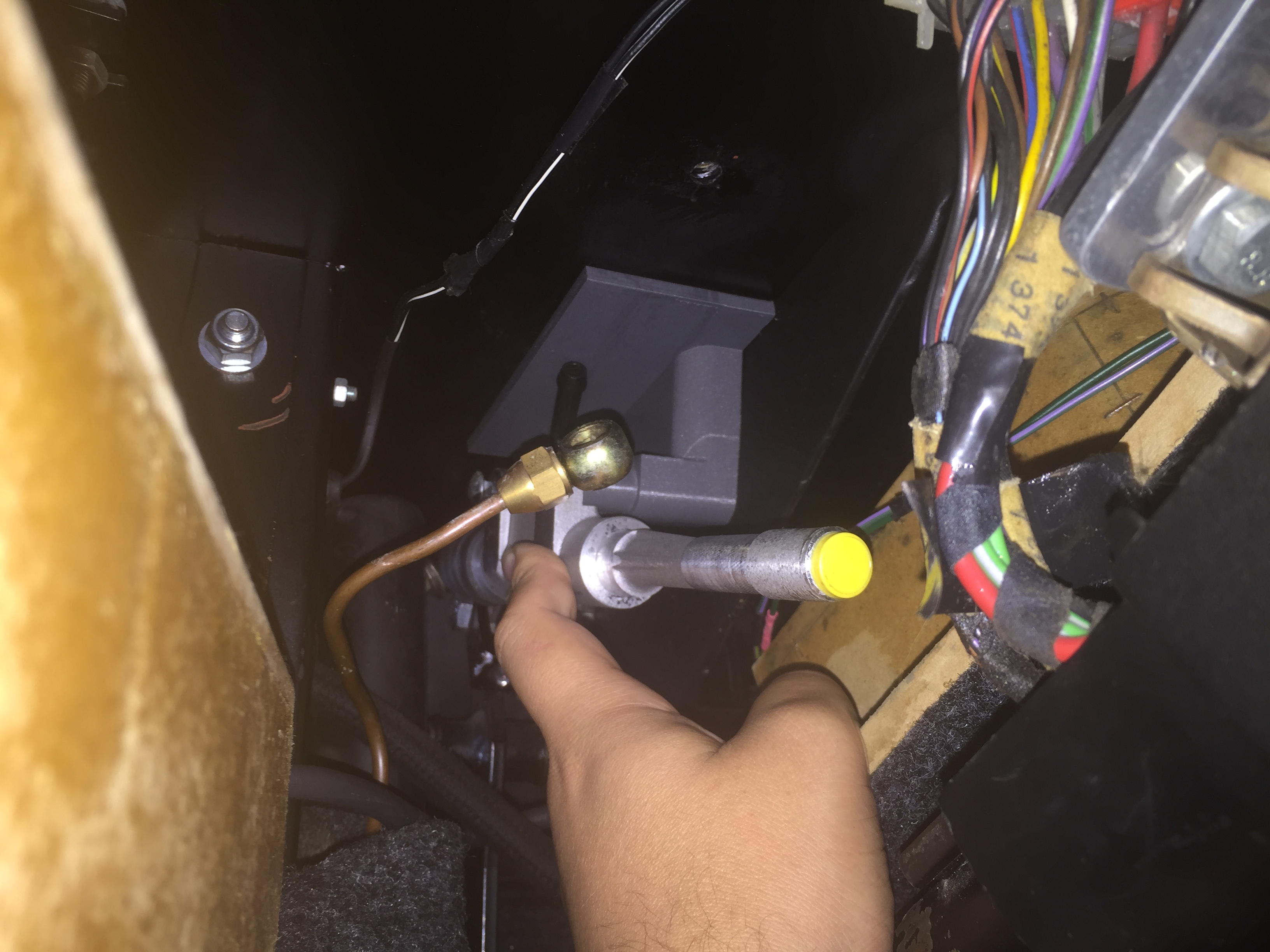

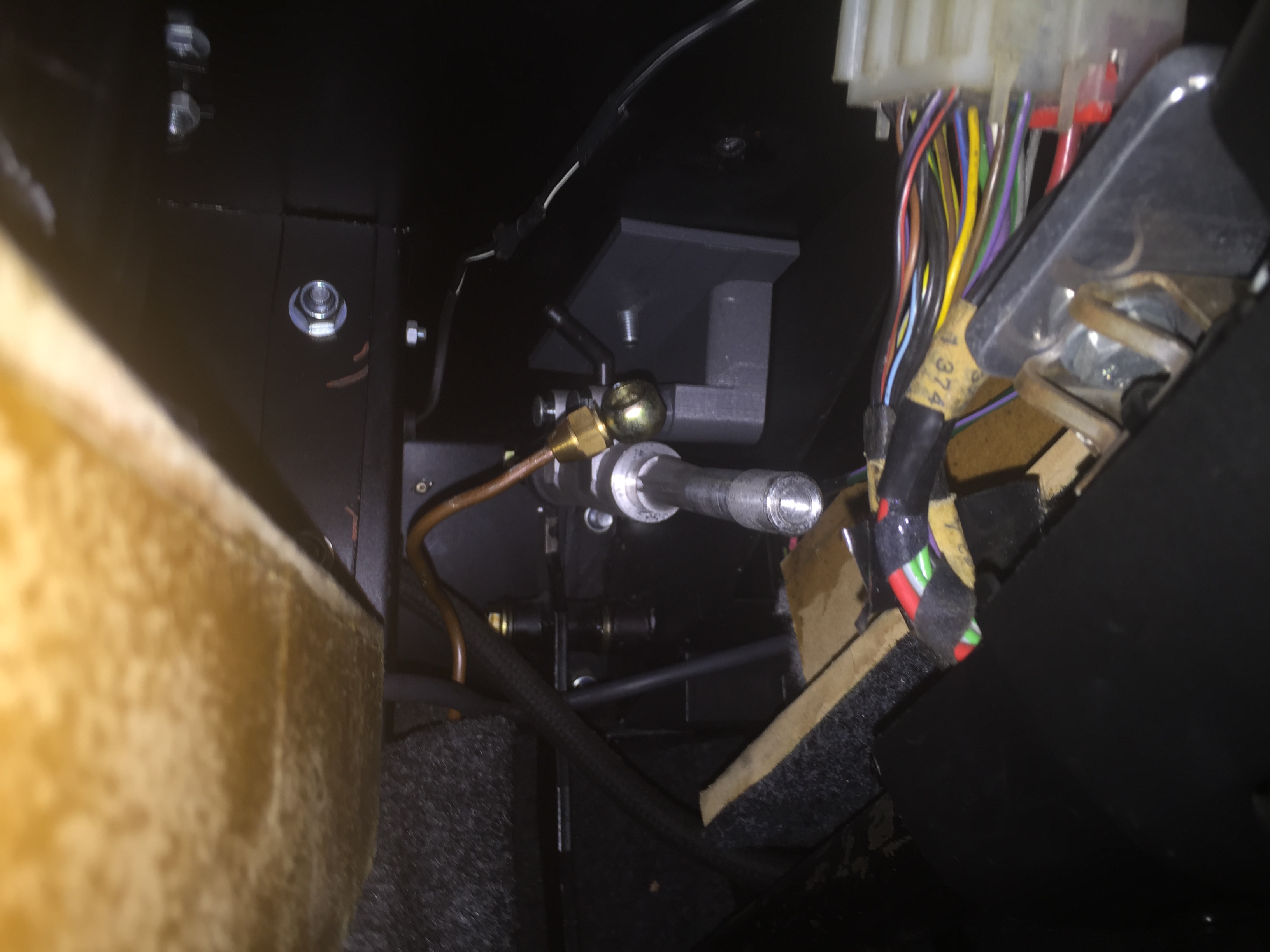

Fits into the car too!

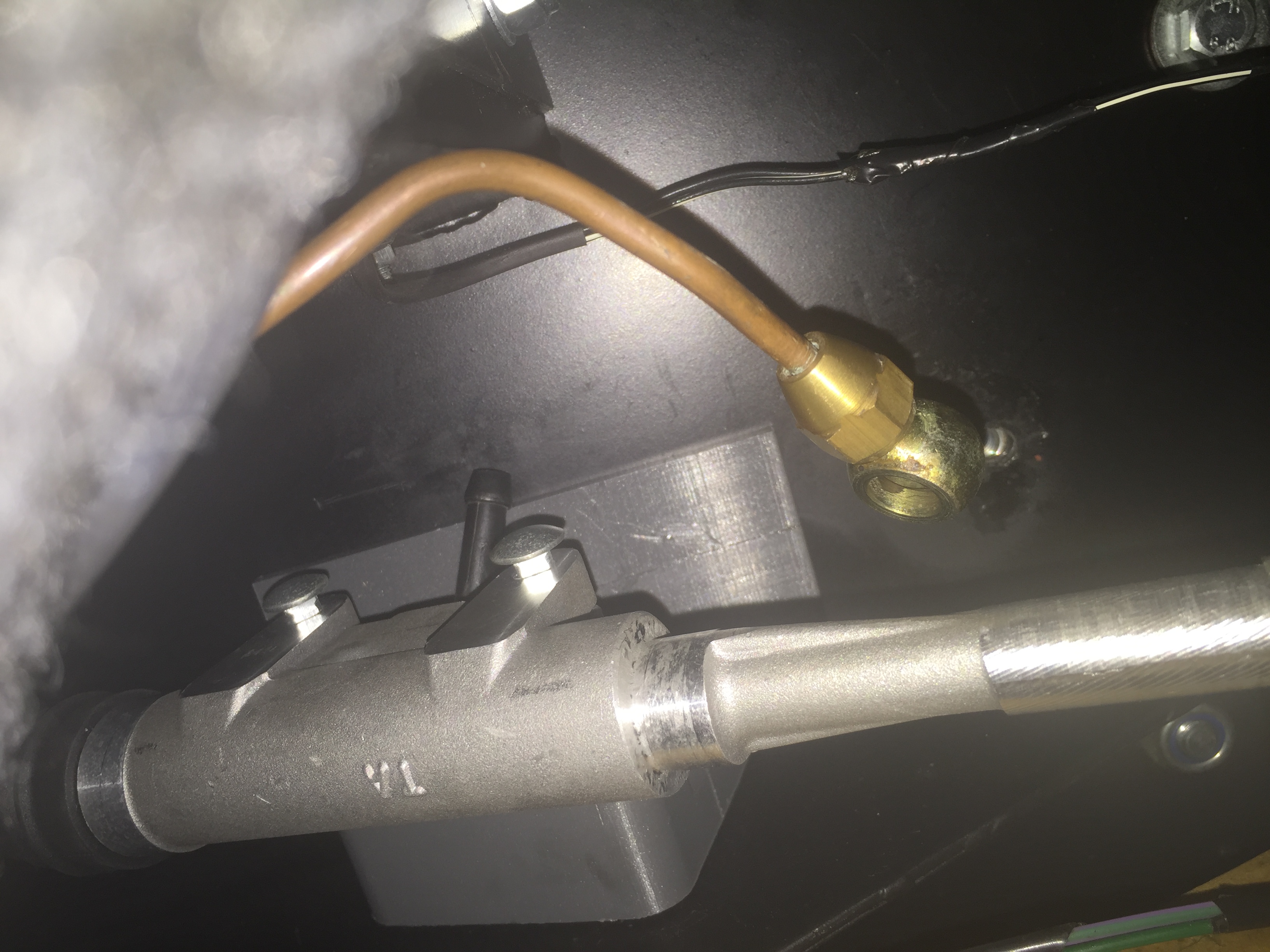

Added a hole for the scuttle mount and tested the spacing for the pedal fit.


A few cm forward of it is the second mount hole so the bracket can be lengthened to make use of it.


Next step is to refine the design and create a metal version.
